Impact Sensor
>>
B63RR Side Impact Sensor - Right Rear (AW7)
B63RR Side Impact Sensor - Right Rear (AW7)
Component Connector End Views

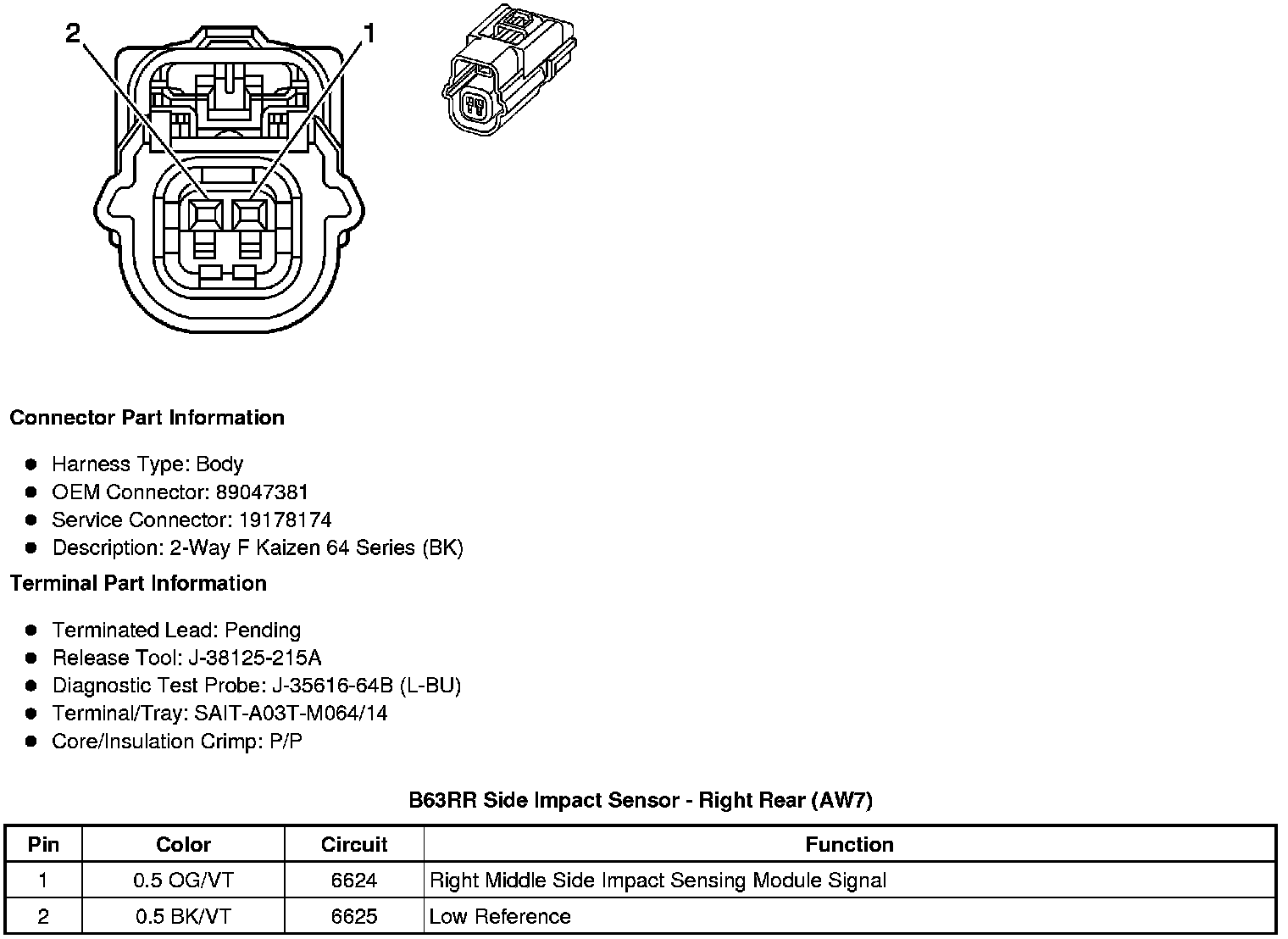

B63RR Side Impact Sensor - Right Rear (AW7)
