Impact Sensor
>>

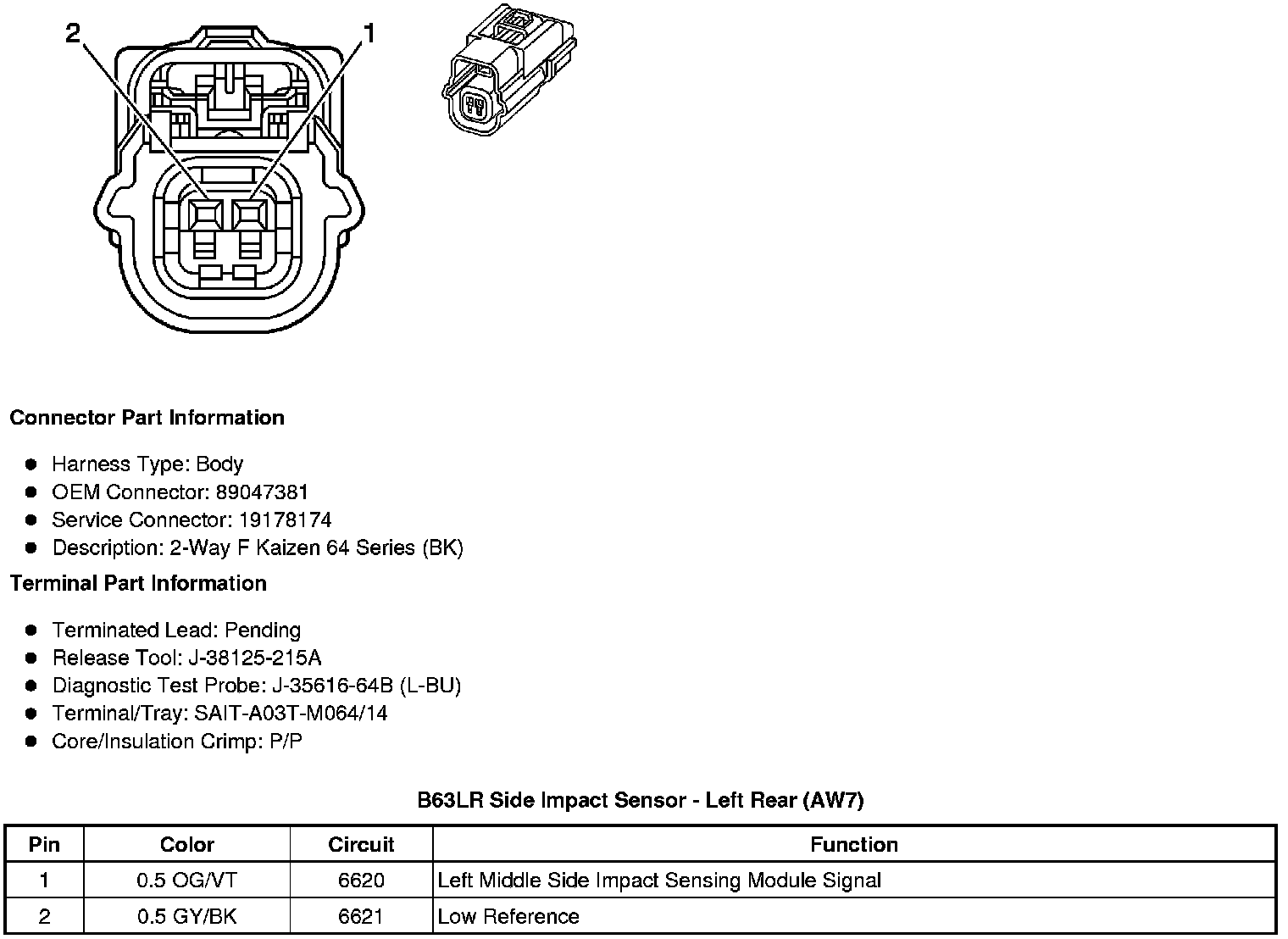

B63LR Side Impact Sensor - Left Rear (AW7)
B63LR Side Impact Sensor - Left Rear (AW7)
Component Connector End Views
B63LR Side Impact Sensor - Left Rear (AW7)
