Home >> Buick >> 2011 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Horn >> Horn Switch

Horn Switch

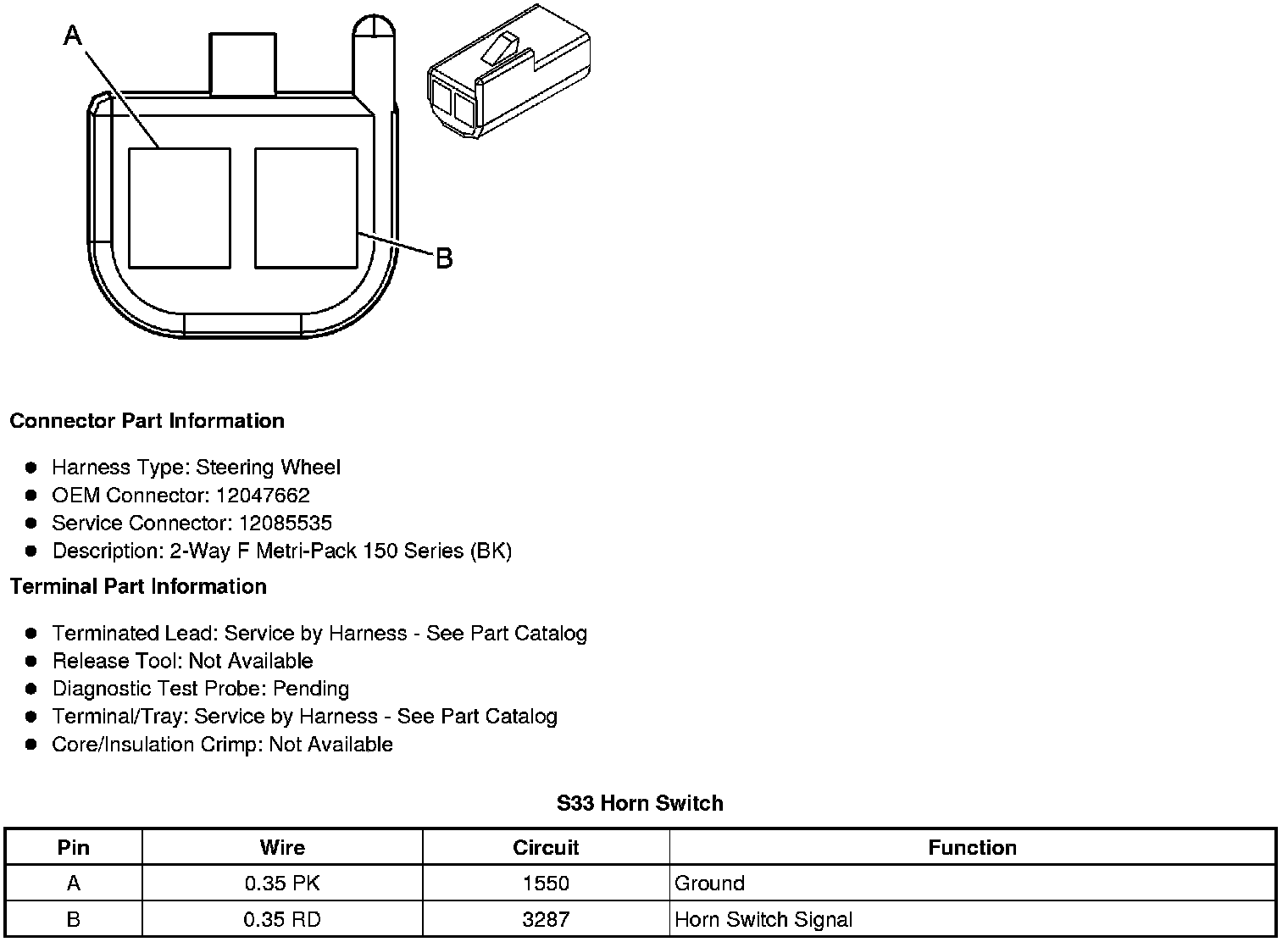

Component Connector End Views

S33 Horn Switch
