Front Door Latch
>>
A23LR Door Latch Assembly - Left Rear
A23LR Door Latch Assembly - Left Rear

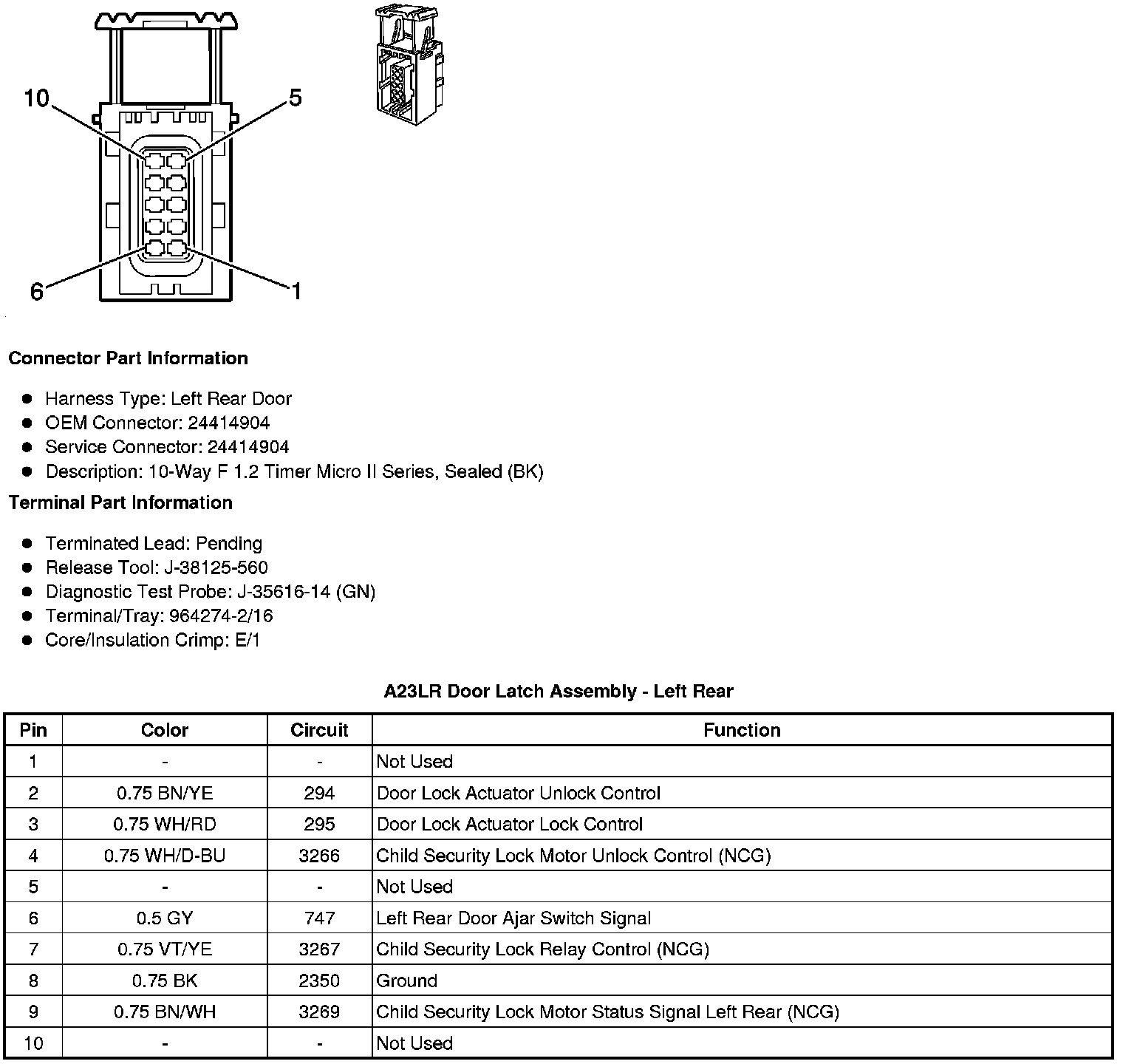

Component Connector End Views
A23LR Door Latch Assembly - Left Rear
