A23D Door Latch Assembly - Driver
A23D Door Latch Assembly - Driver

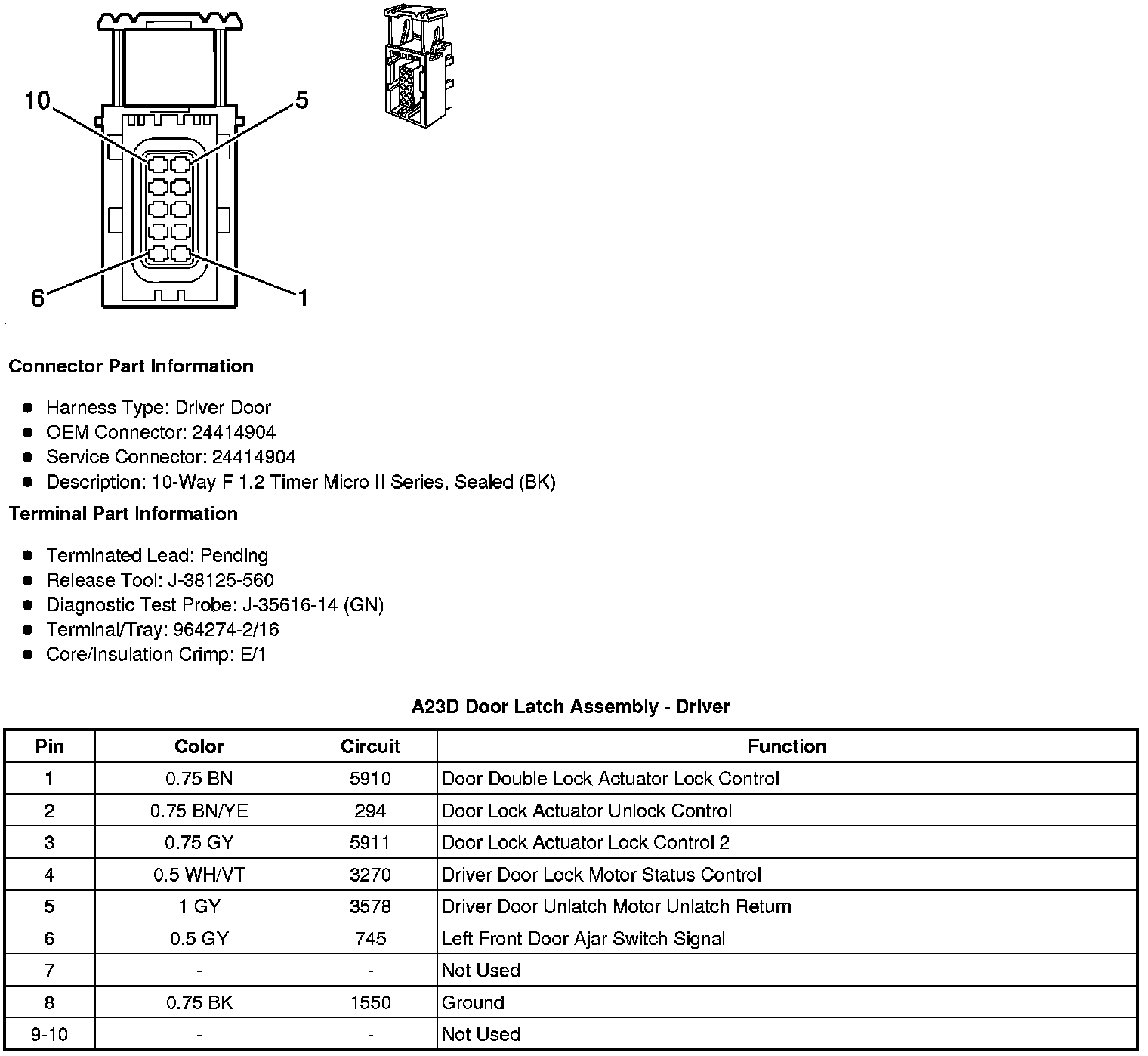

Component Connector End Views
A23D Door Latch Assembly - Driver
