Fog/Driving Lamp
>>

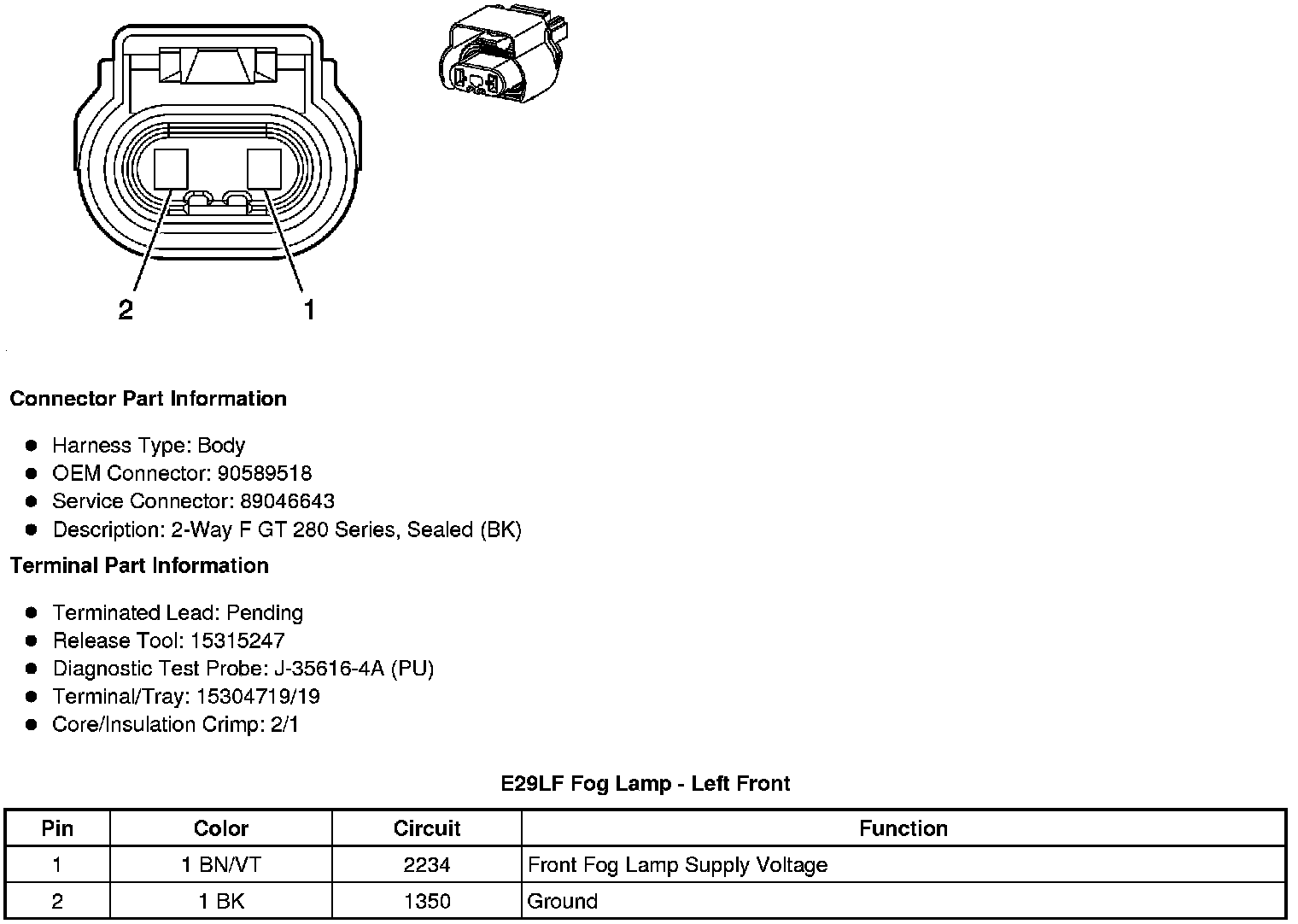

E29LF Fog Lamp - Left Front
E29LF Fog Lamp - Left Front
Component Connector End Views
E29LF Fog Lamp - Left Front
