Damping Control Actuator
>>
Q37RR Shock Absorber Actuator - Right Rear (F45)
Q37RR Shock Absorber Actuator - Right Rear (F45)

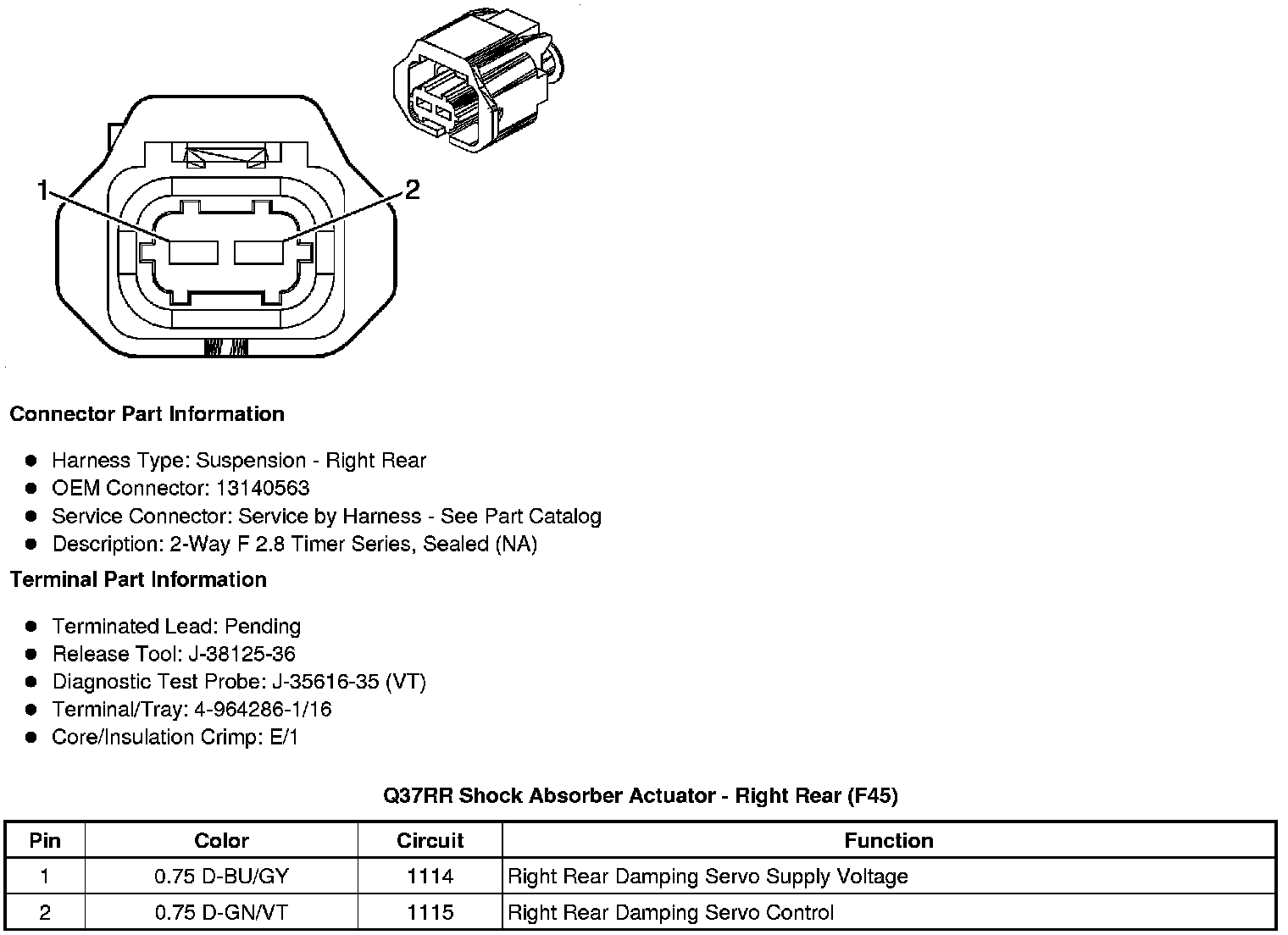

Component Connector End Views
Q37RR Shock Absorber Actuator - Right Rear (F45)
