Home
>>
Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Damping Control Actuator
>>
Q37LR Shock Absorber Actuator - Left Rear (F45)
Q37LR Shock Absorber Actuator - Left Rear (F45)

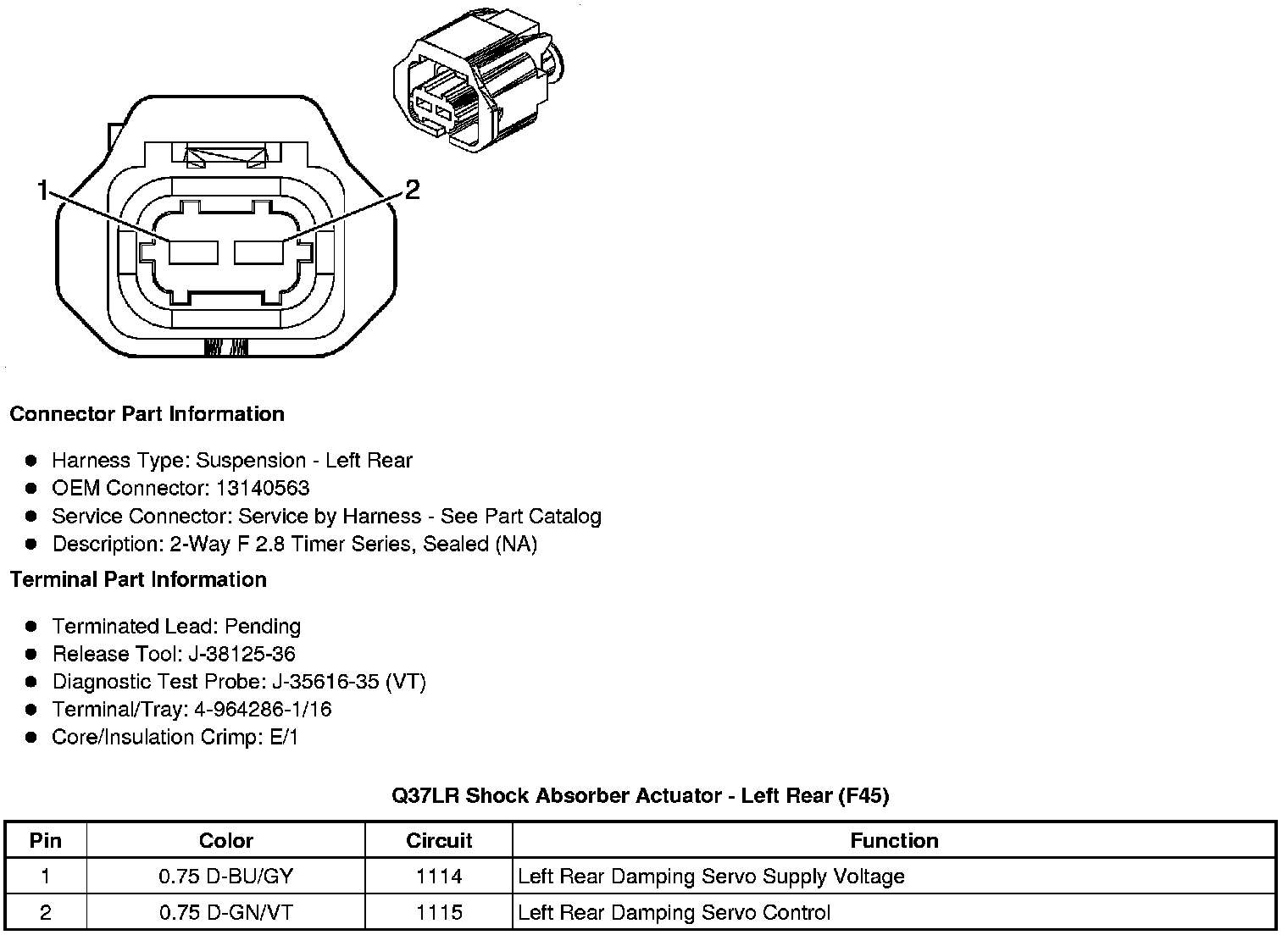

Component Connector End Views
Q37LR Shock Absorber Actuator - Left Rear (F45)
