Window Switch - Passenger S79P
Window Switch - Passenger S79P
Component Connector End Views

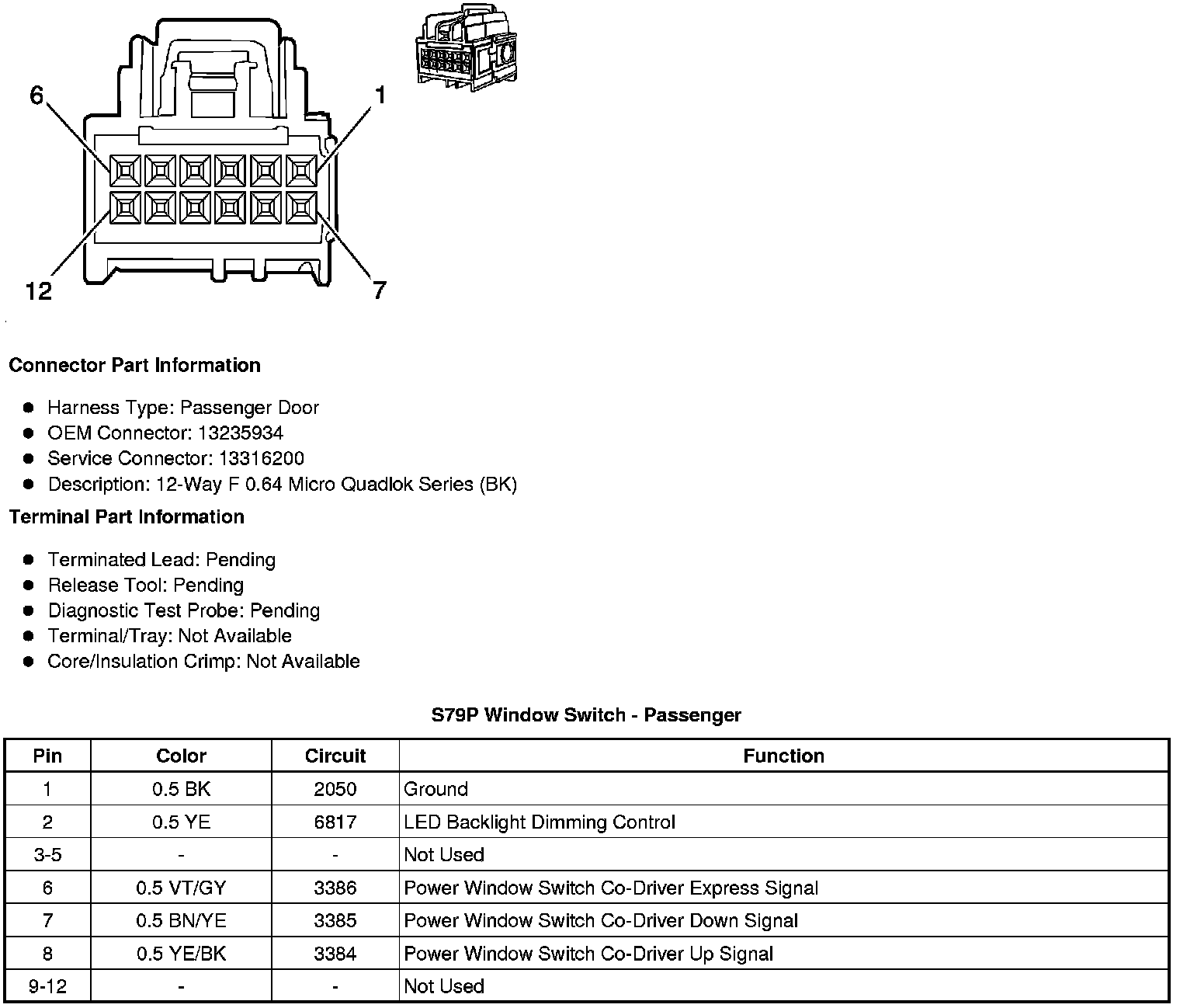

S79P Window Switch - Passenger
