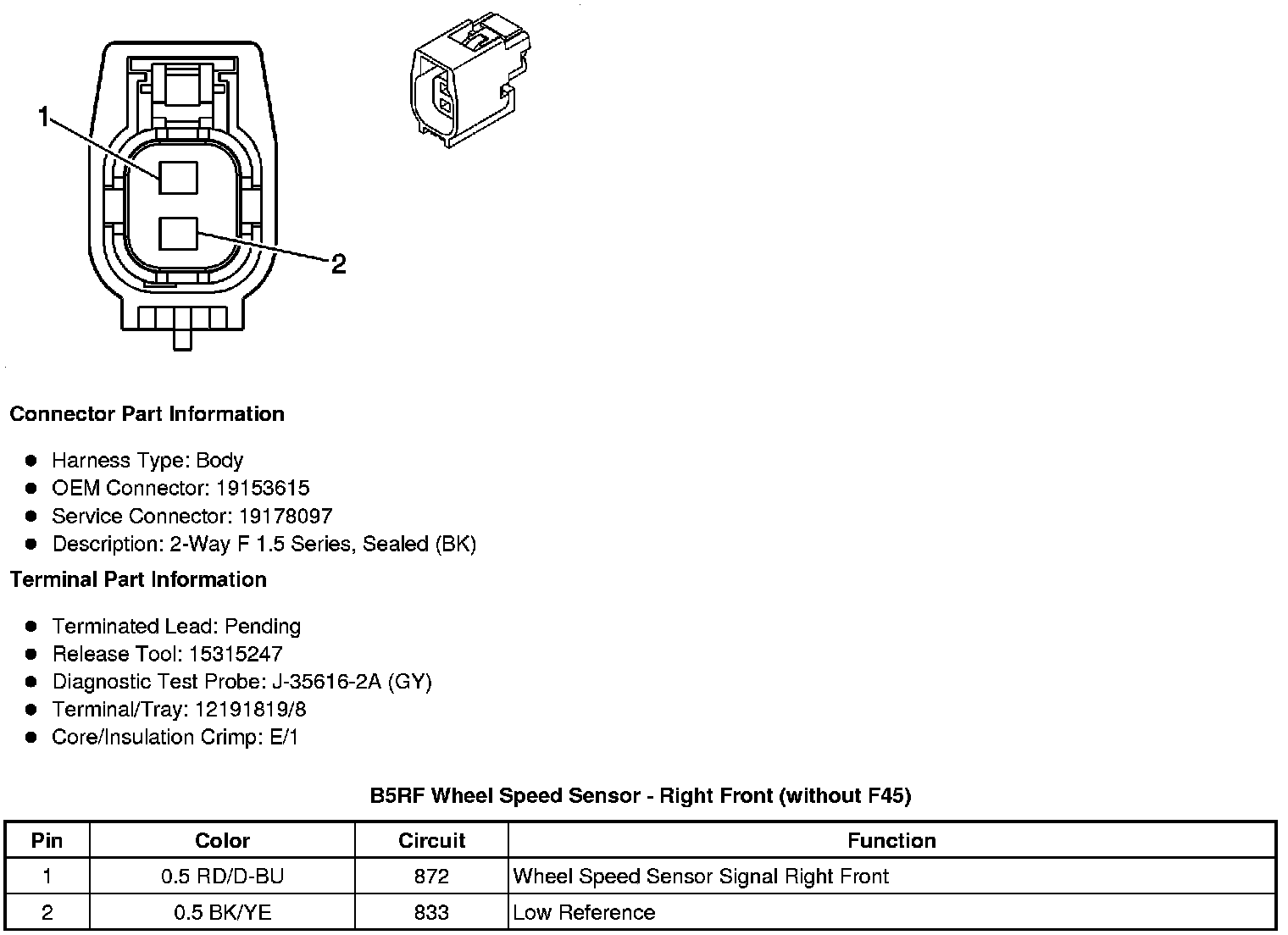

Wheel Speed Sensor - Right Front (without F45) B5RF
Wheel Speed Sensor - Right Front (without F45) B5RF
Component Connector End Views
B5RF
Wheel Speed Sensor
- Right Front (without F45)
