Vertical Body Acceleration Sensor - Right Front (F45) B162RF
Vertical Body Acceleration Sensor - Right Front (F45) B162RF

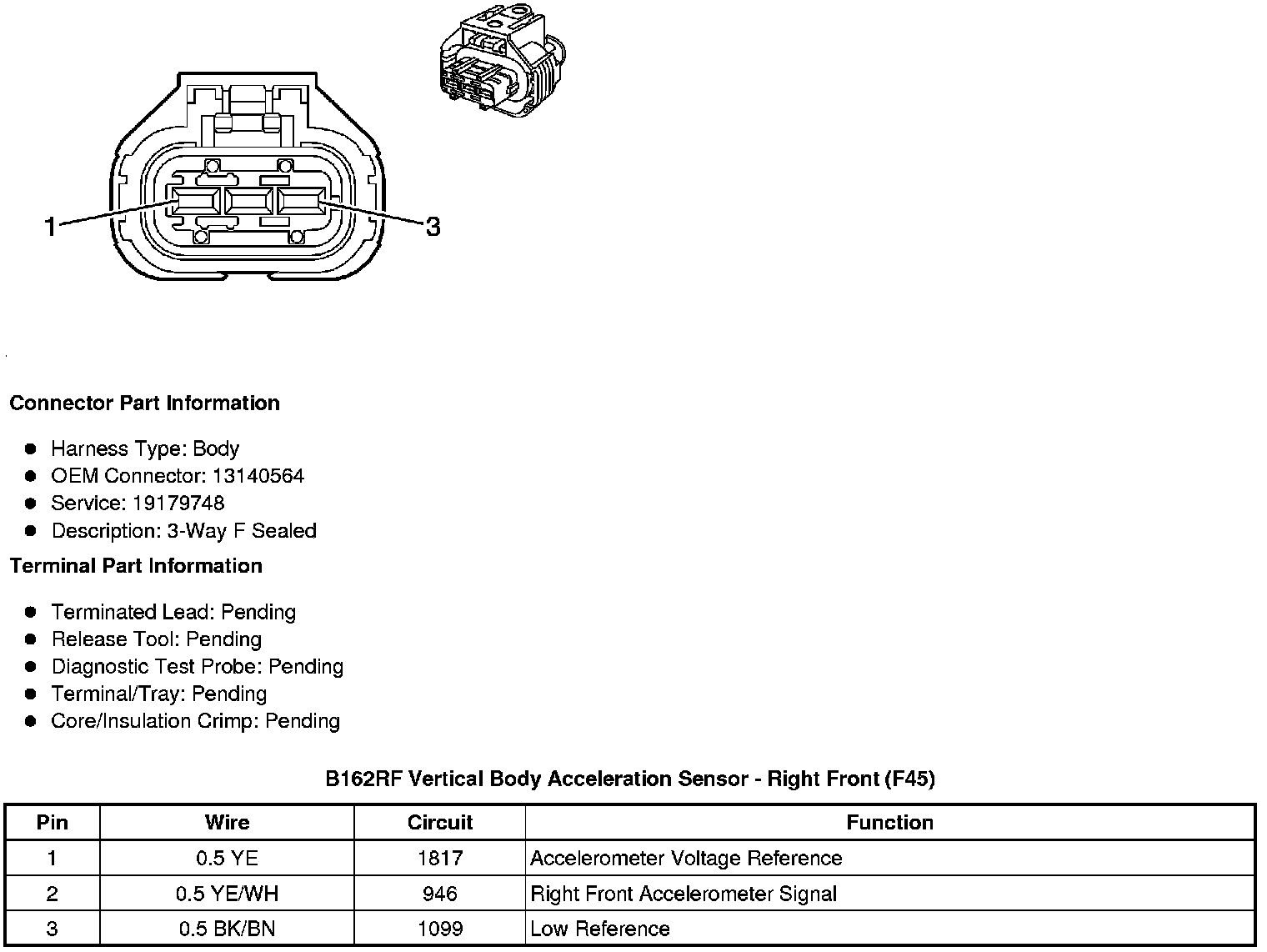

Component Connector End Views
B162RF Vertical Body Acceleration Sensor - Right Front (F45)
