Vertical Body Acceleration Sensor - Left Front (F45) B162LF
Vertical Body Acceleration Sensor - Left Front (F45) B162LF
Component Connector End Views

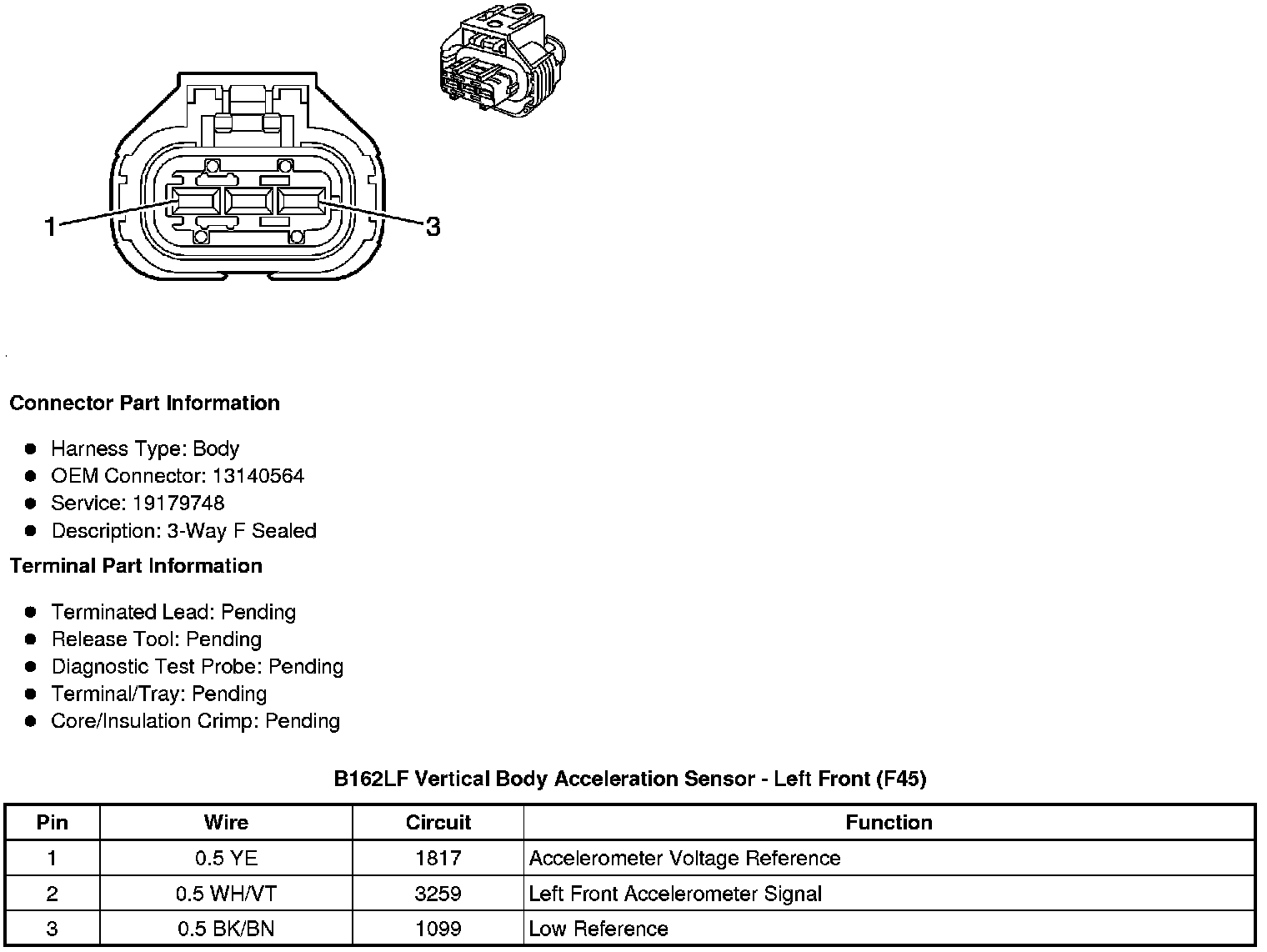

B162LF Vertical Body Acceleration Sensor - Left Front (F45)
