Vehicle Speed Sensor (MR6) B115
Vehicle Speed Sensor (MR6) B115
Component Connector End Views

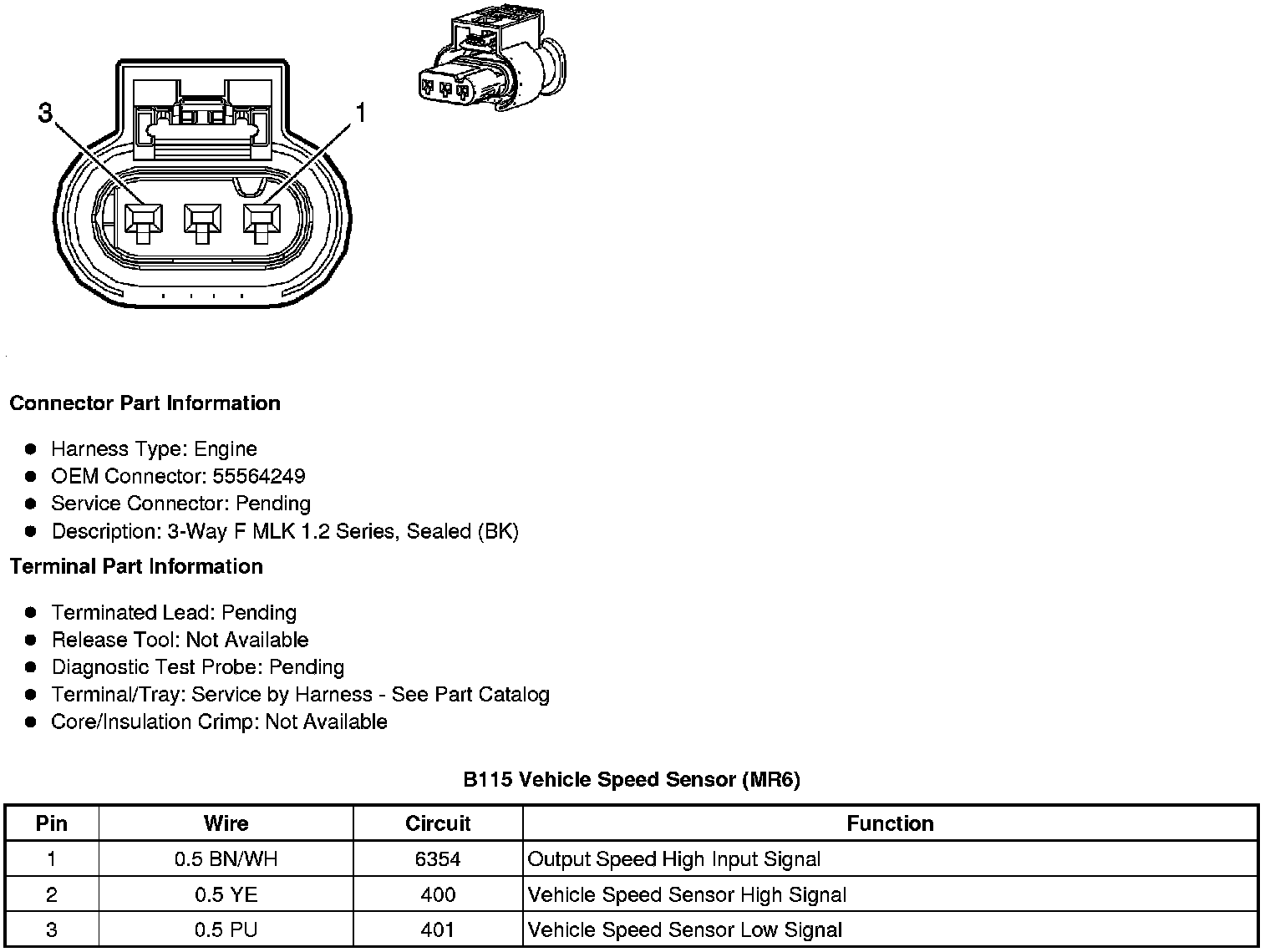

B115 Vehicle Speed Sensor (MR6)
