Variable Power Steering Solenoid Valve (NXC) M72
Variable Power Steering Solenoid Valve (NXC) M72

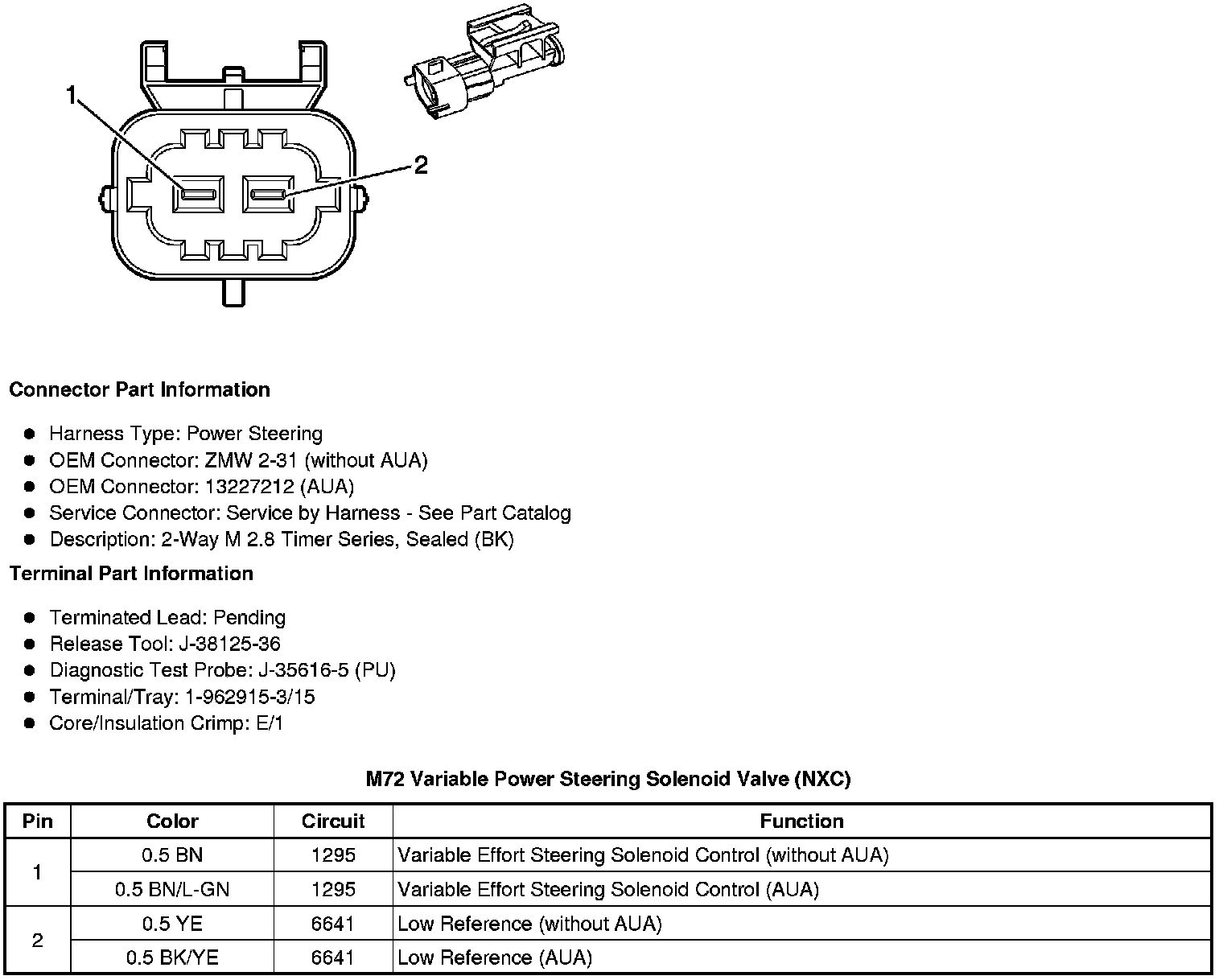

Component Connector End Views
M72 Variable Power Steering Solenoid Valve (NXC)
