Transmission Manual Shift Switch (MDK or MH7) S2
Transmission Manual Shift Switch (MDK or MH7) S2

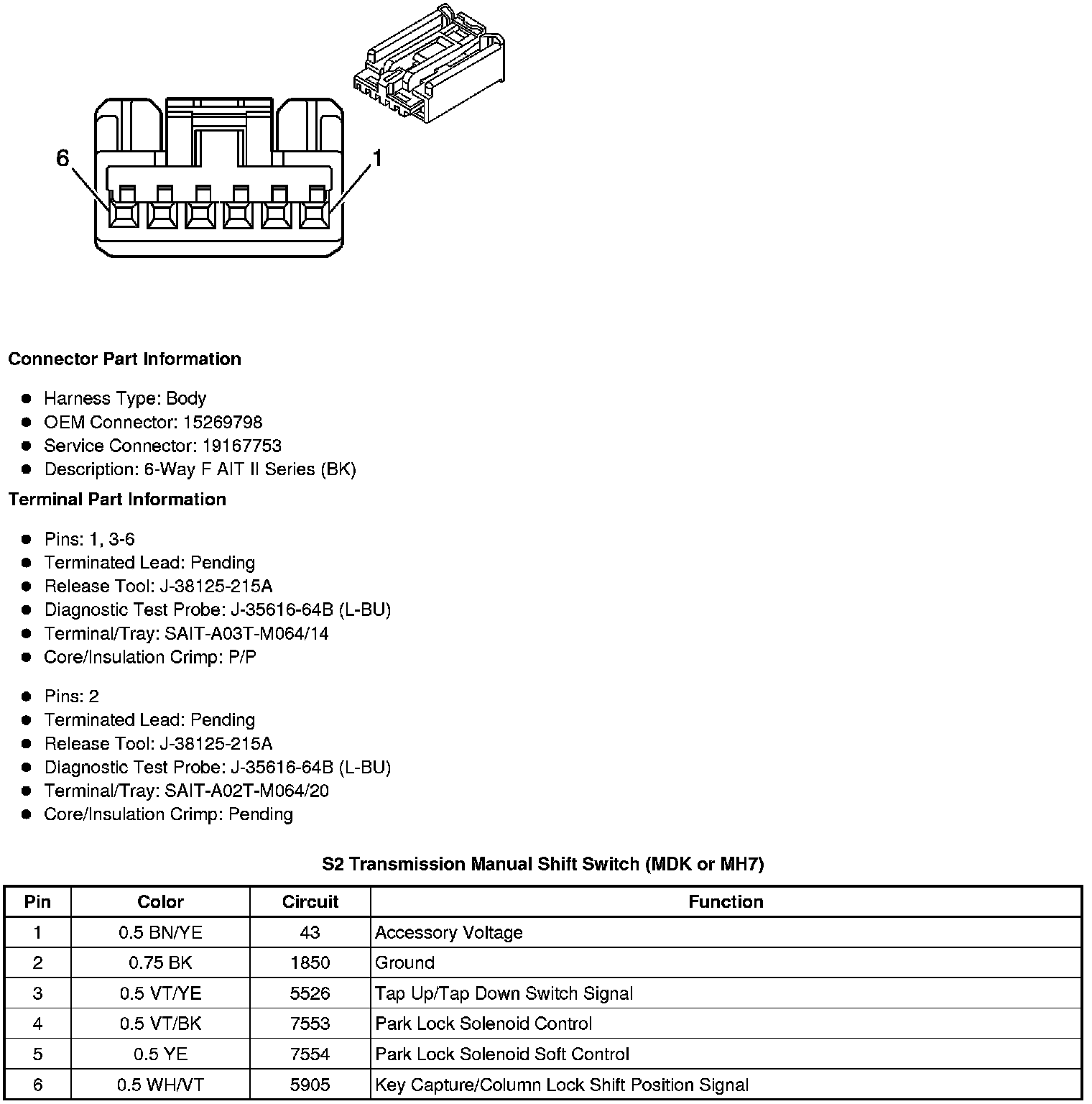

Component Connector End Views
S2 Transmission Manual Shift Switch (MDK or MH7)
