Stop/Turn Signal Lamp - Right E5AN
Stop/Turn Signal Lamp - Right E5AN
Component Connector End Views

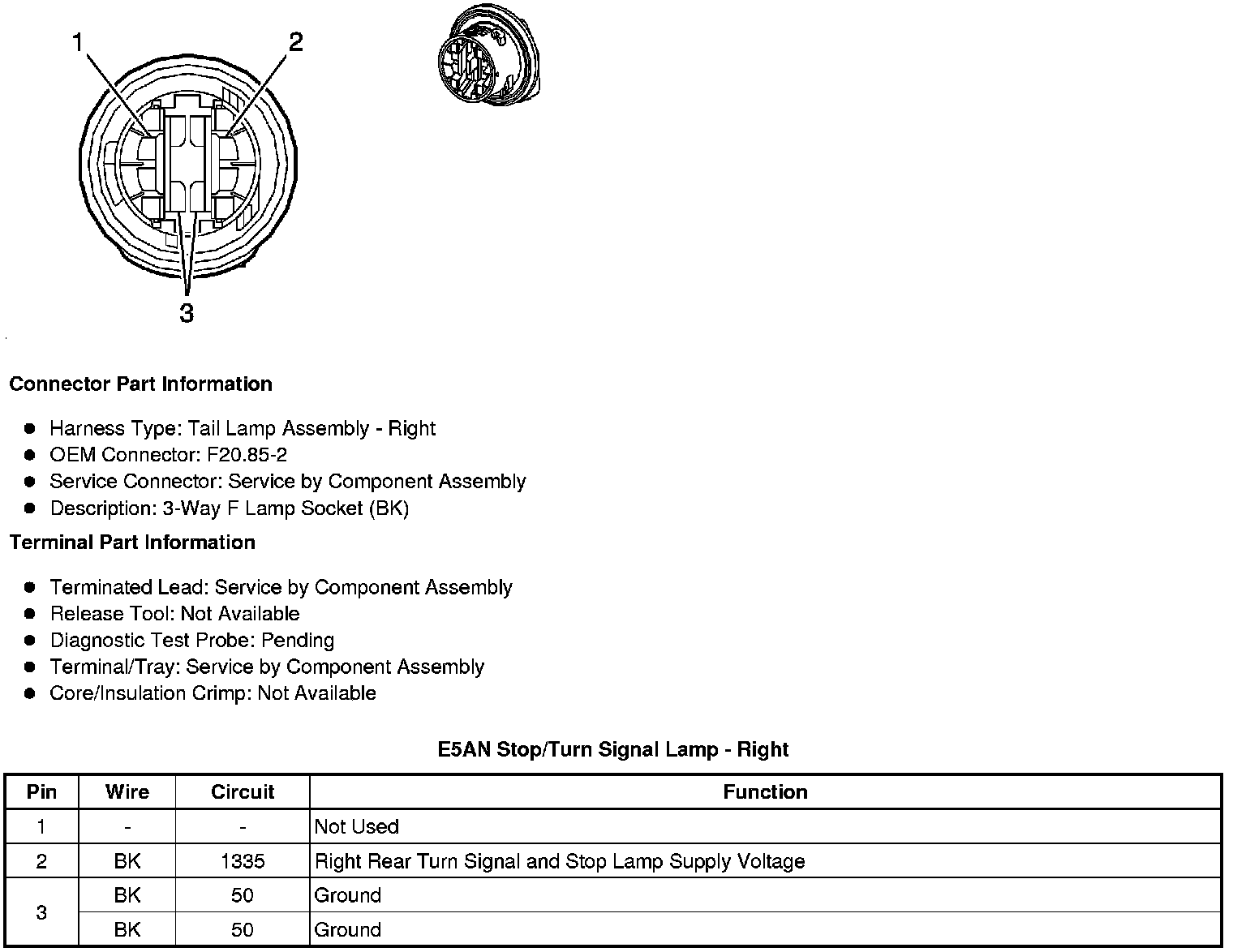

E5AN Stop/Turn Signal Lamp - Right
