Steering Wheel Controls Switch - Right S70R
Steering Wheel Controls Switch - Right S70R
Component Connector End Views

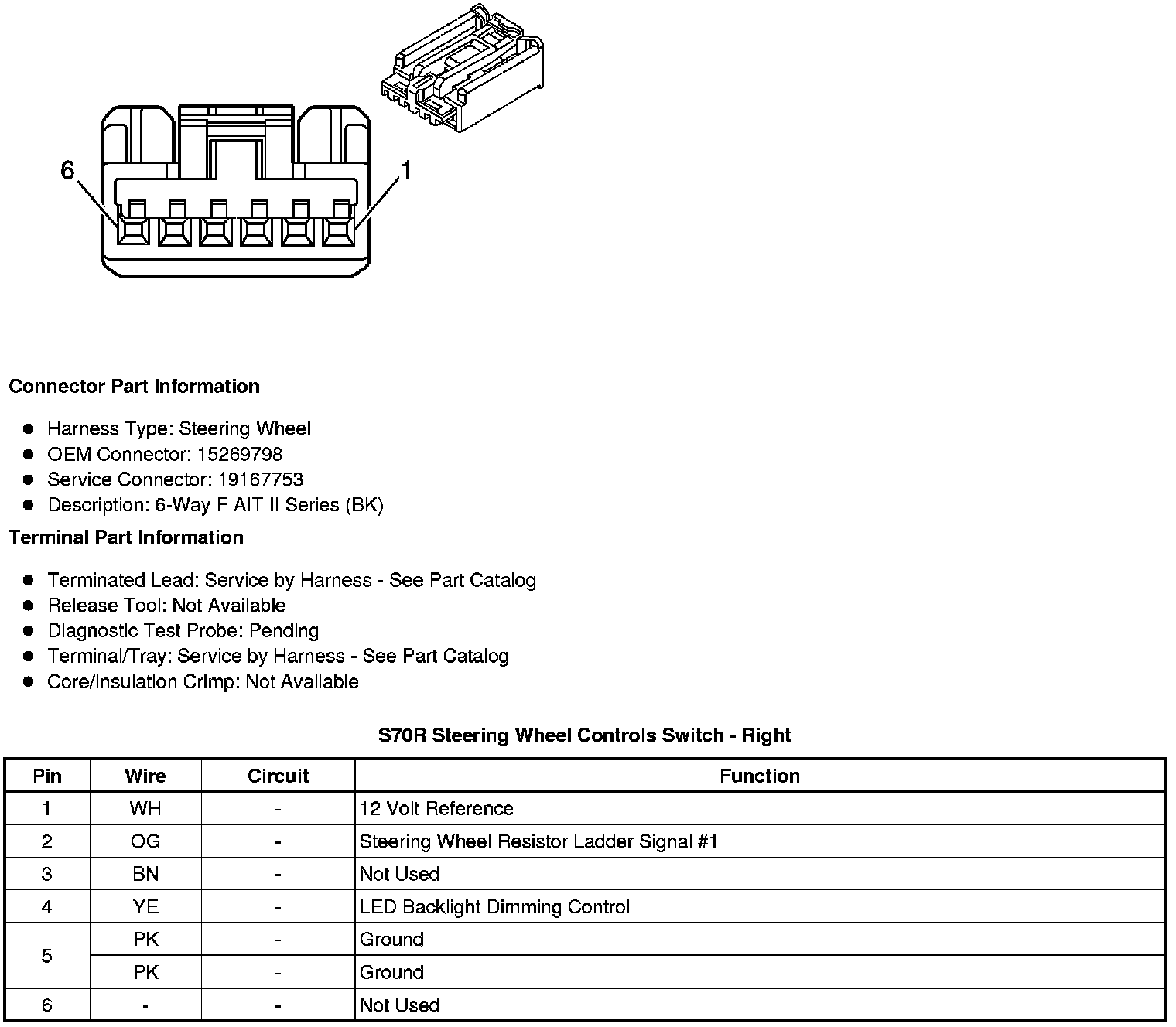

S70R Steering Wheel Controls Switch - Right
