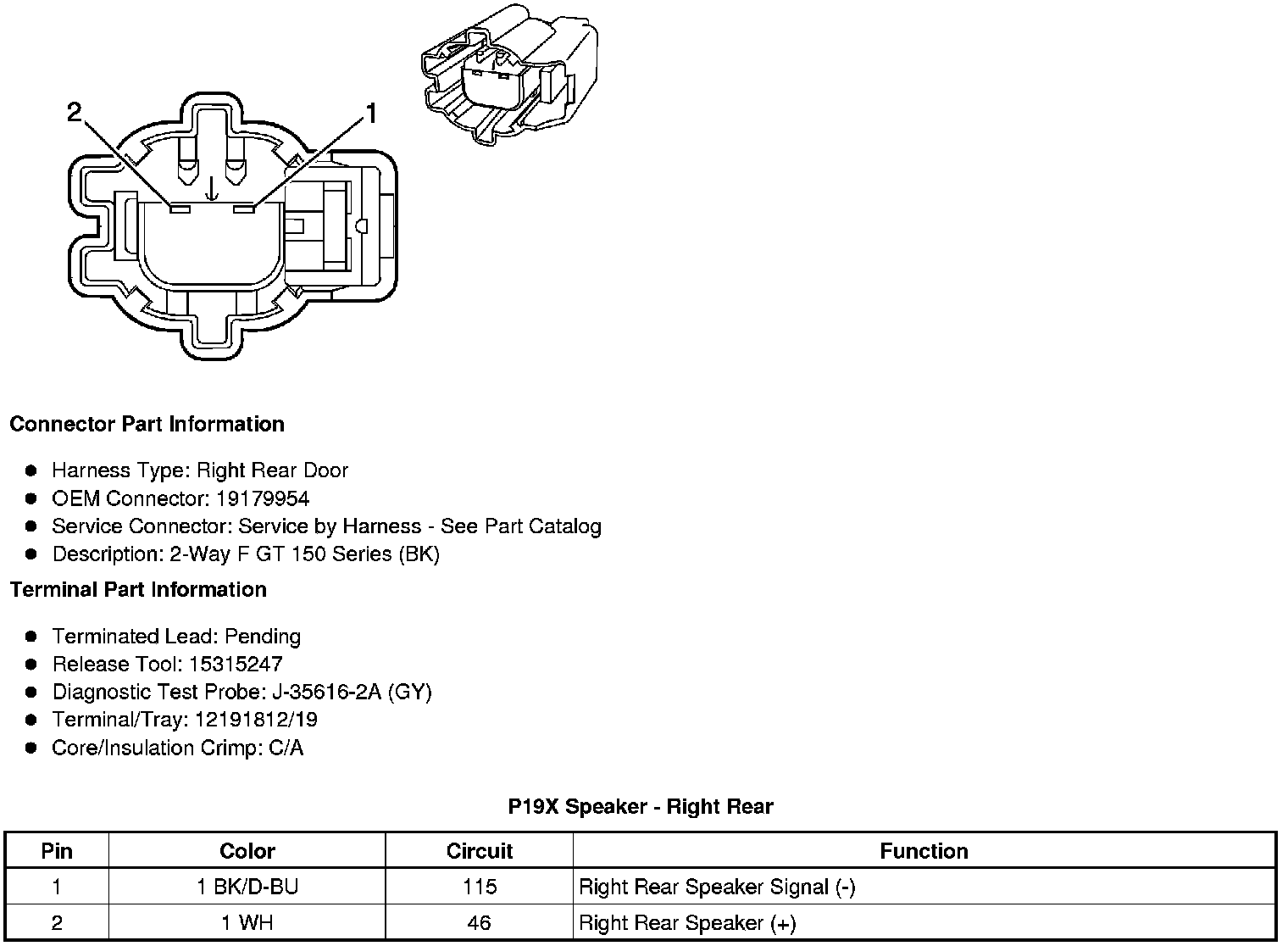

Speaker - Right Rear P19X
Speaker - Right Rear P19X
Component Connector End Views
P19X Speaker - Right Rear
