Canister Vent Valve
Canister Vent Valve

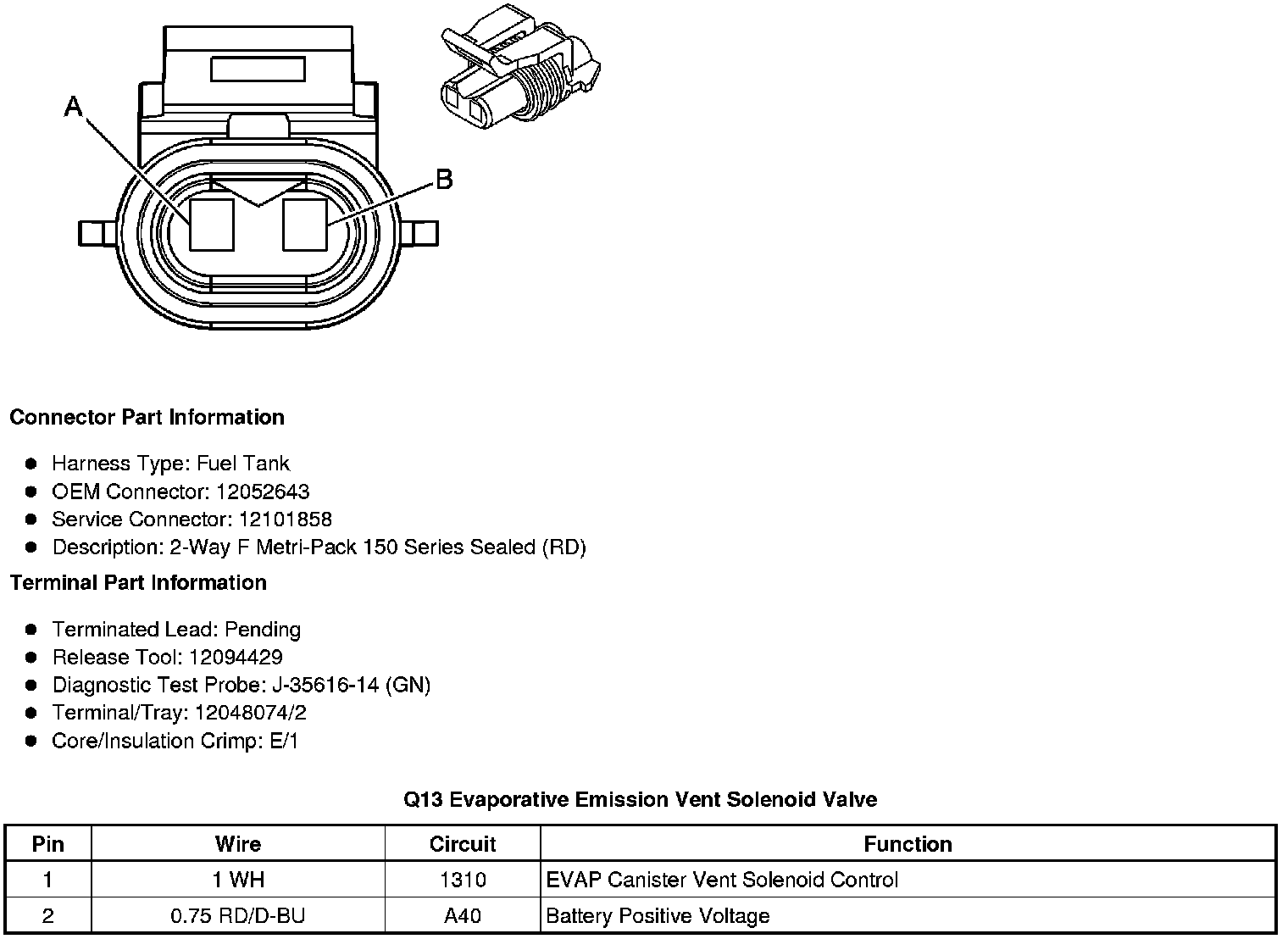

Component Connector End Views
Q13 Evaporative Emission Vent Solenoid Valve
