Home >> Buick >> 2011 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Canister Purge Solenoid

Canister Purge Solenoid

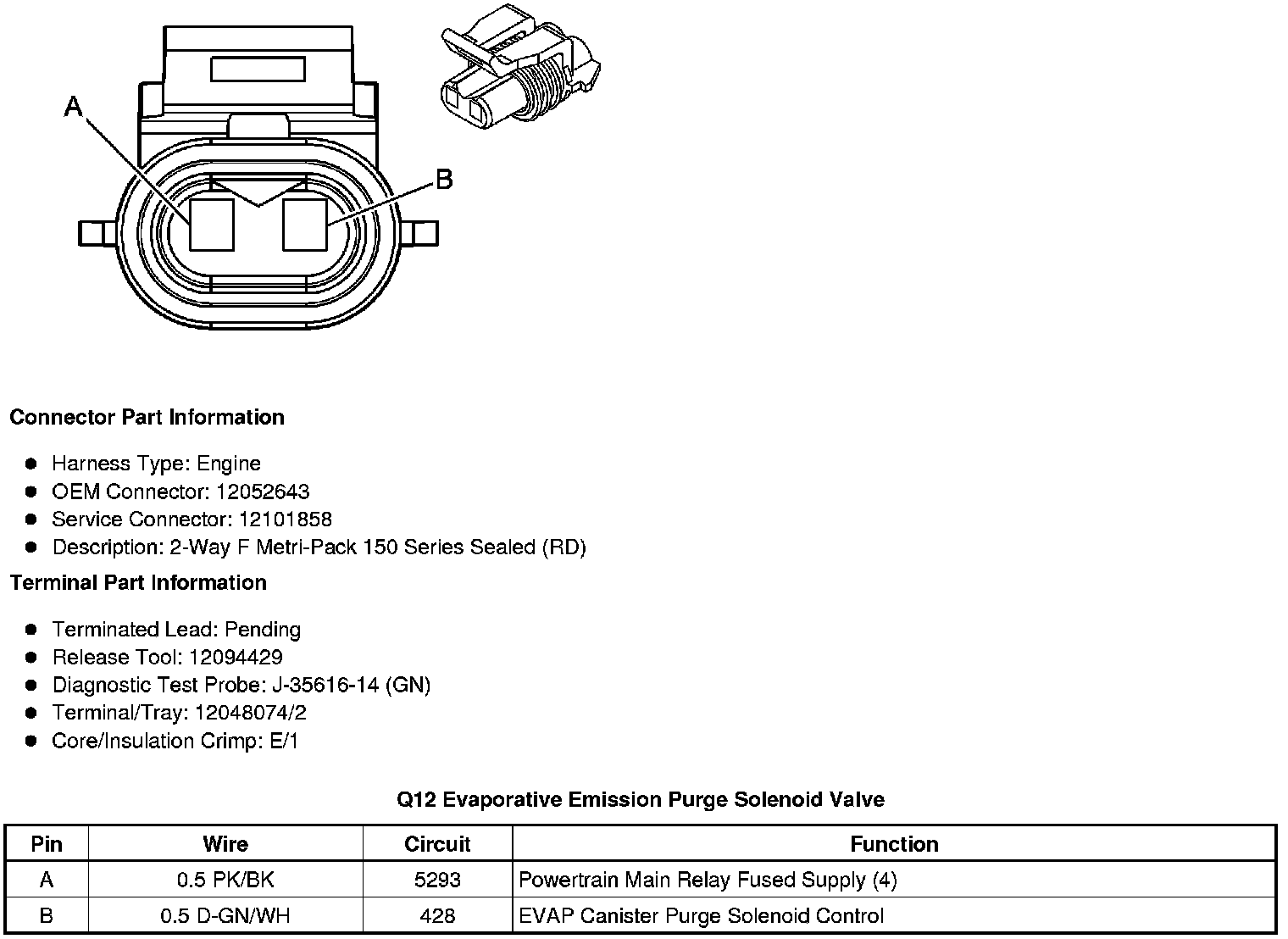

Component Connector End Views

Q12 Evaporative Emission Purge Solenoid Valve
