B23F Camshaft Position Sensor - Intake
B23F Camshaft Position Sensor - Intake

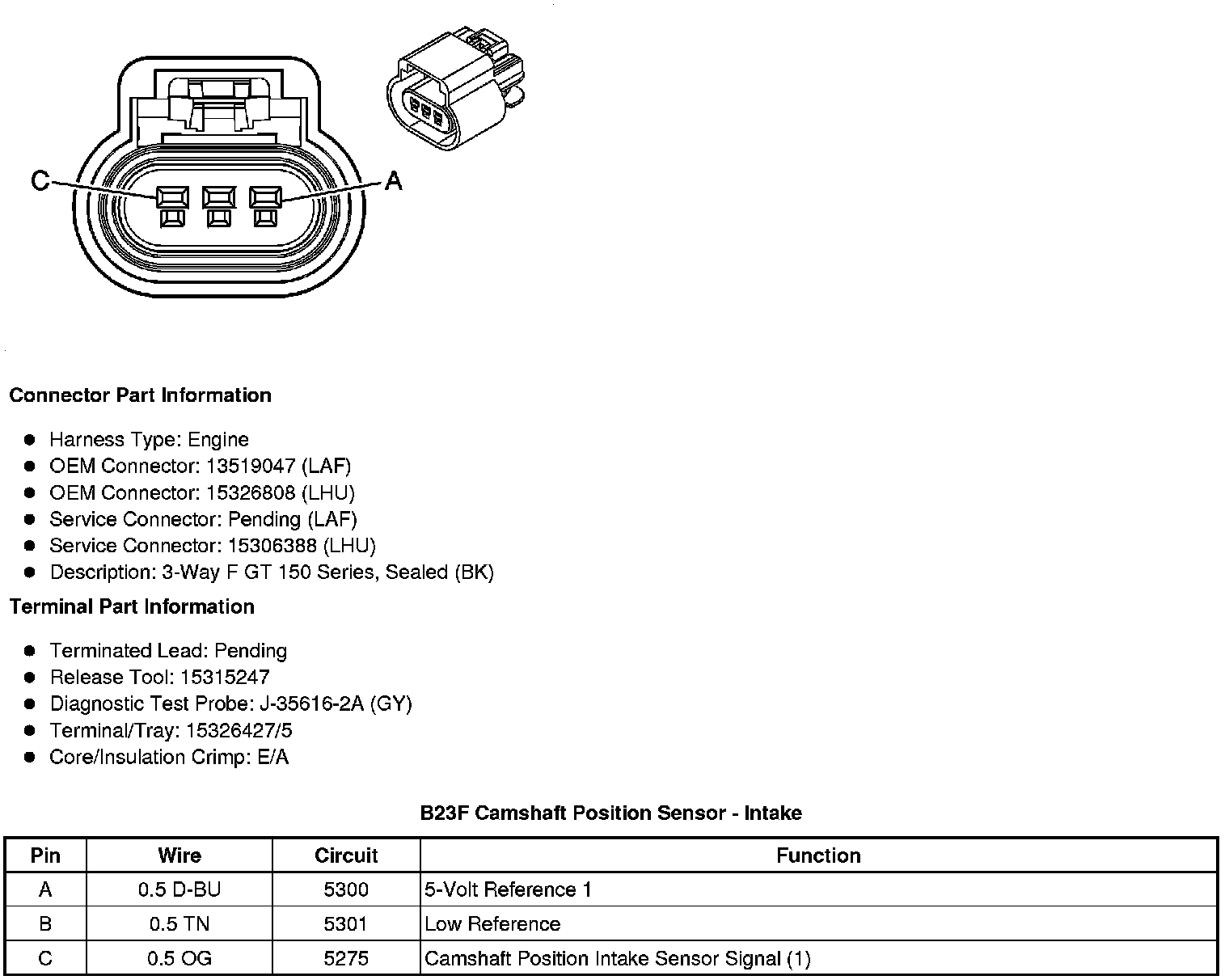

Component Connector End Views
B23F
Camshaft Position Sensor
- Intake
