Camshaft Position Sensor
>>

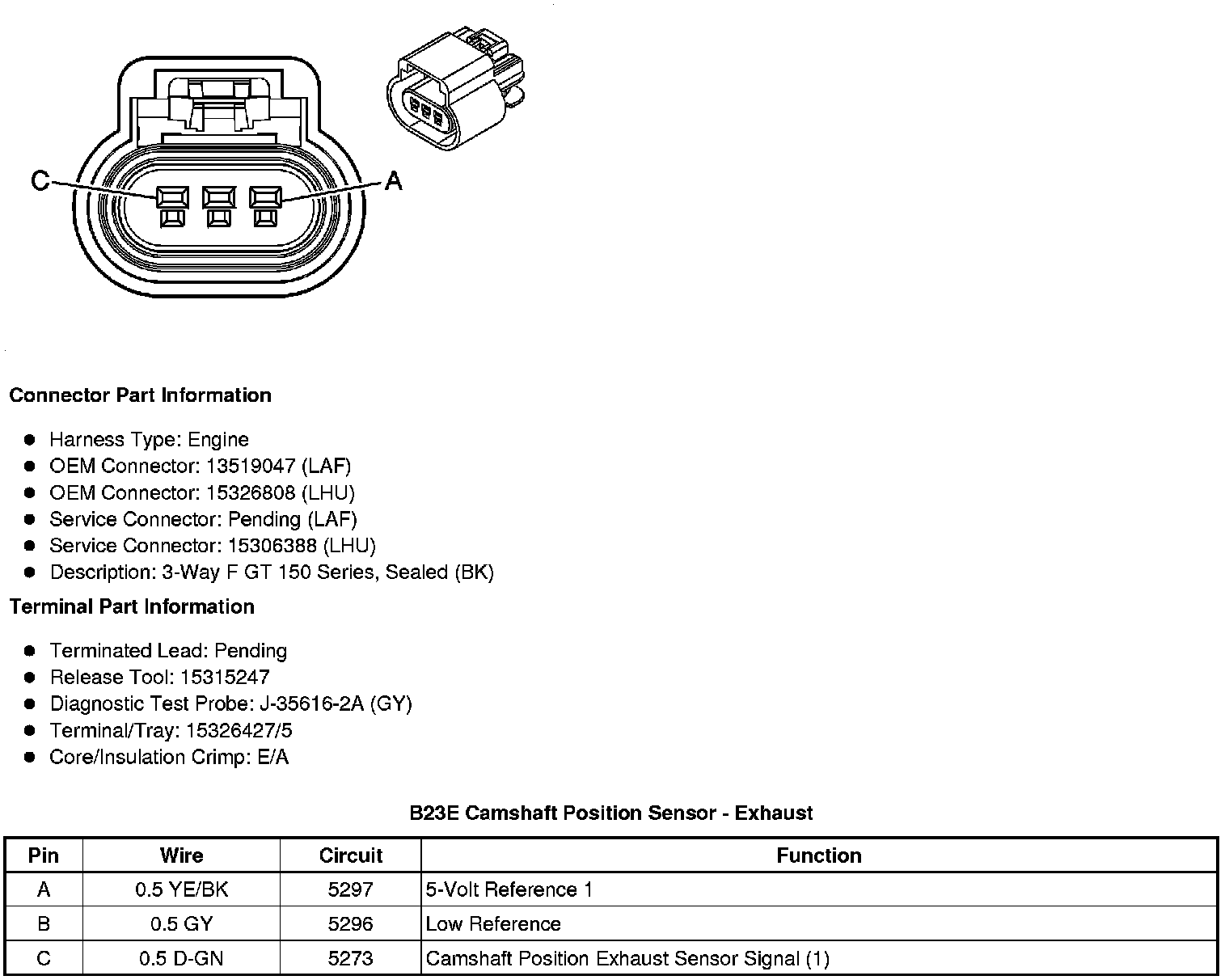

B23E Camshaft Position Sensor - Exhaust
B23E Camshaft Position Sensor - Exhaust
Component Connector End Views
B23E
Camshaft Position Sensor
- Exhaust
