Cabin Temperature Sensor / Switch
>>

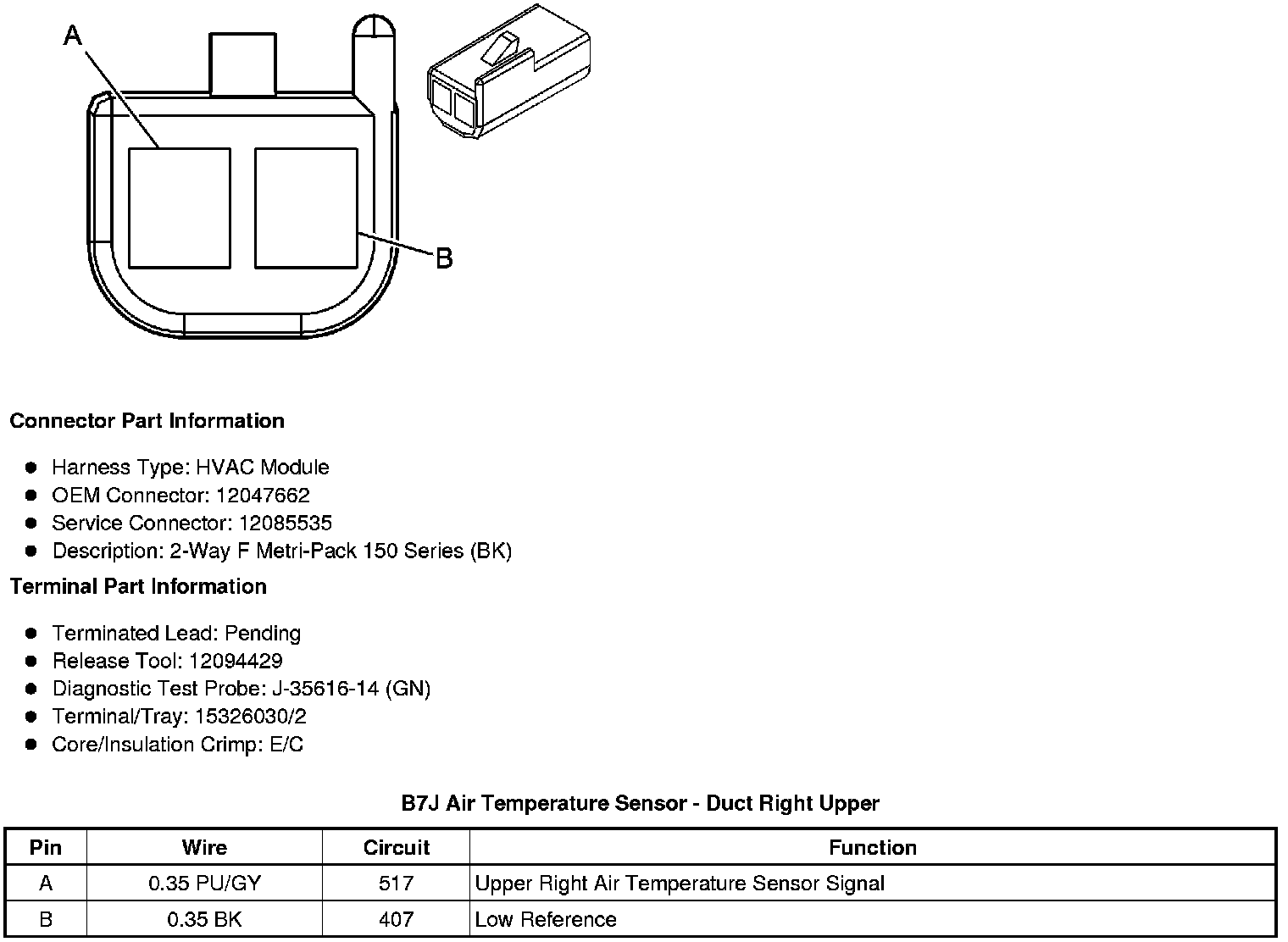

B7J Air Temperature Sensor - Duct Right Upper
B7J Air Temperature Sensor - Duct Right Upper
Component Connector End Views
B7J Air Temperature Sensor - Duct Right Upper
