B7H Air Temperature Sensor - Duct Left Upper
B7H Air Temperature Sensor - Duct Left Upper

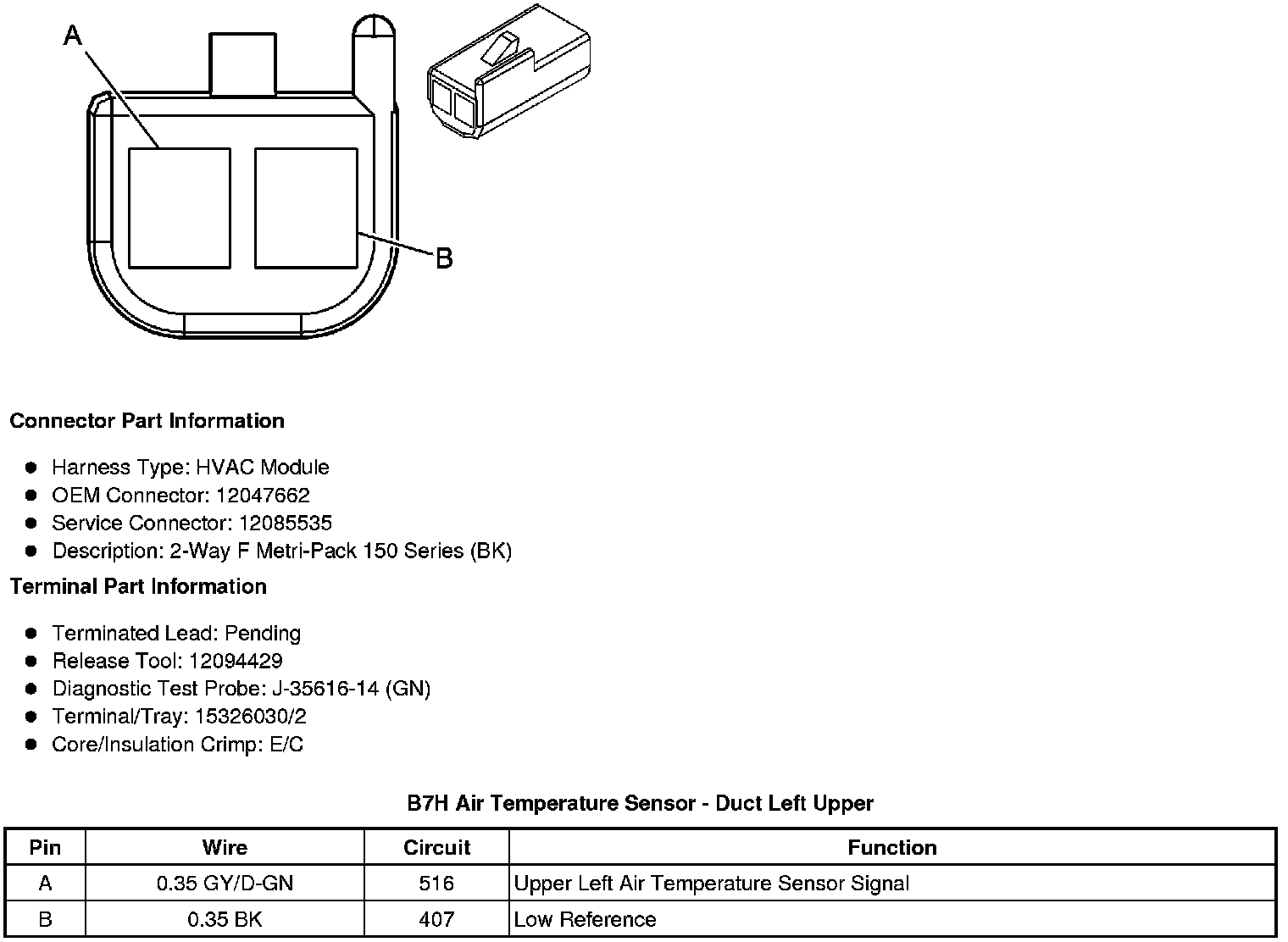

Component Connector End Views
B7H Air Temperature Sensor - Duct Left Upper
