B7D Air Temperature Sensor - Duct Lower Left

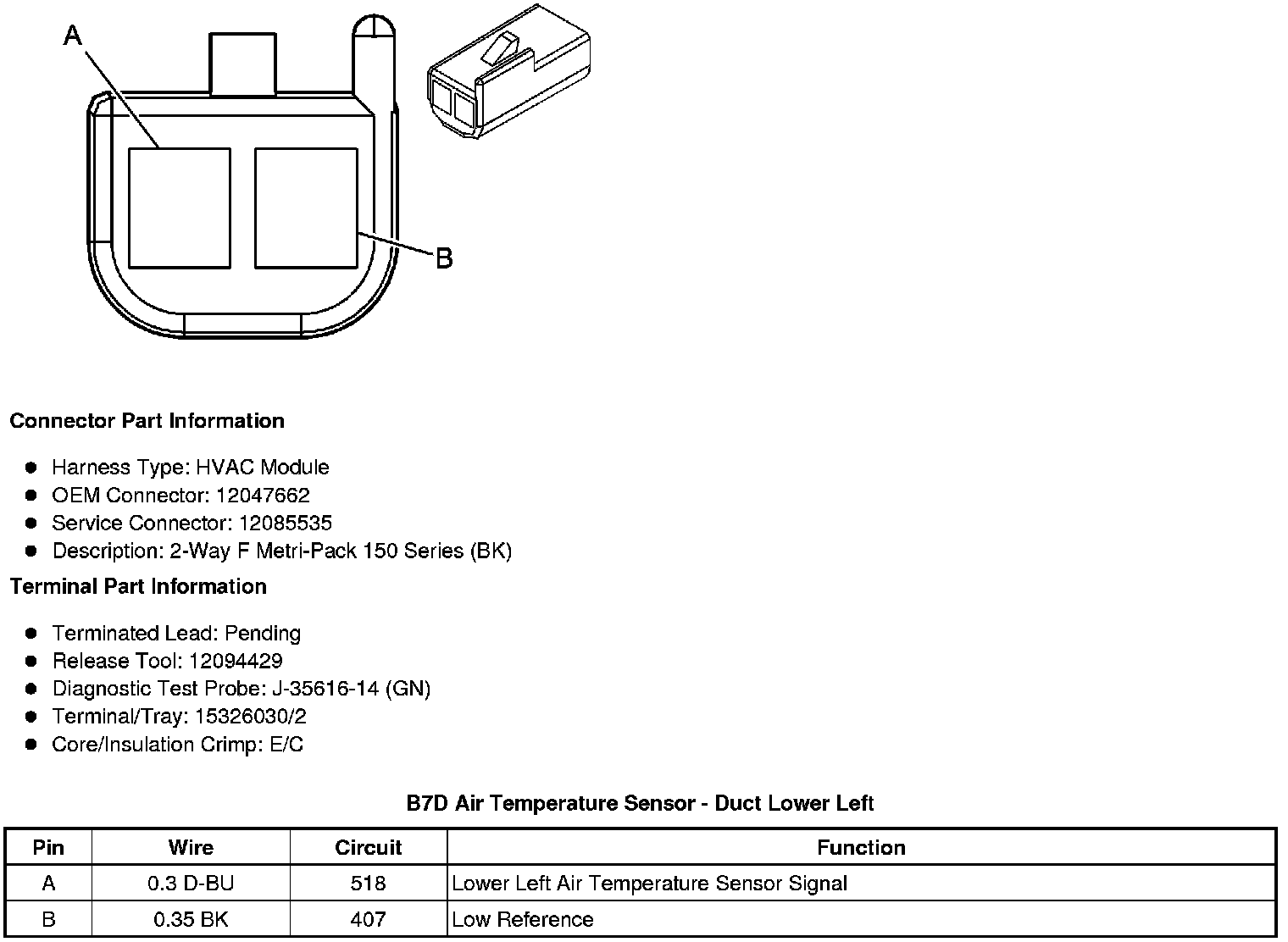

B7D Air Temperature Sensor - Duct Lower Left
Component Connector End Views
B7D Air Temperature Sensor - Duct Lower Left
