Backup Lamp
>>
System Diagram
>>
E5A Backup Lamp - Left
E5A Backup Lamp - Left

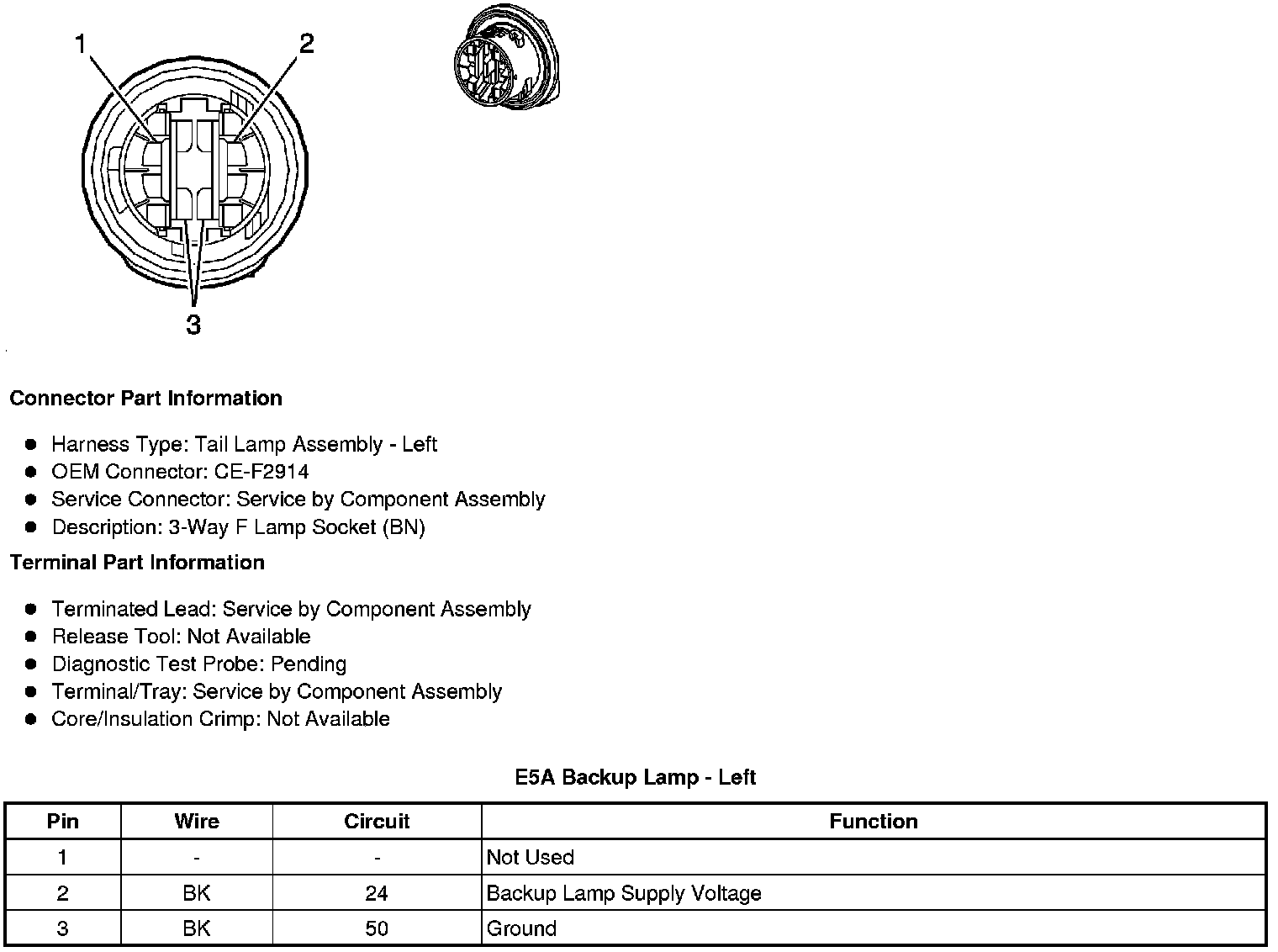

Component Connector End Views
E5A Backup Lamp - Left
