Connector Views
>>
Auxiliary Power Outlet
>>
X80G Accessory Power Receptacle - Instrument Panel
X80G Accessory Power Receptacle - Instrument Panel

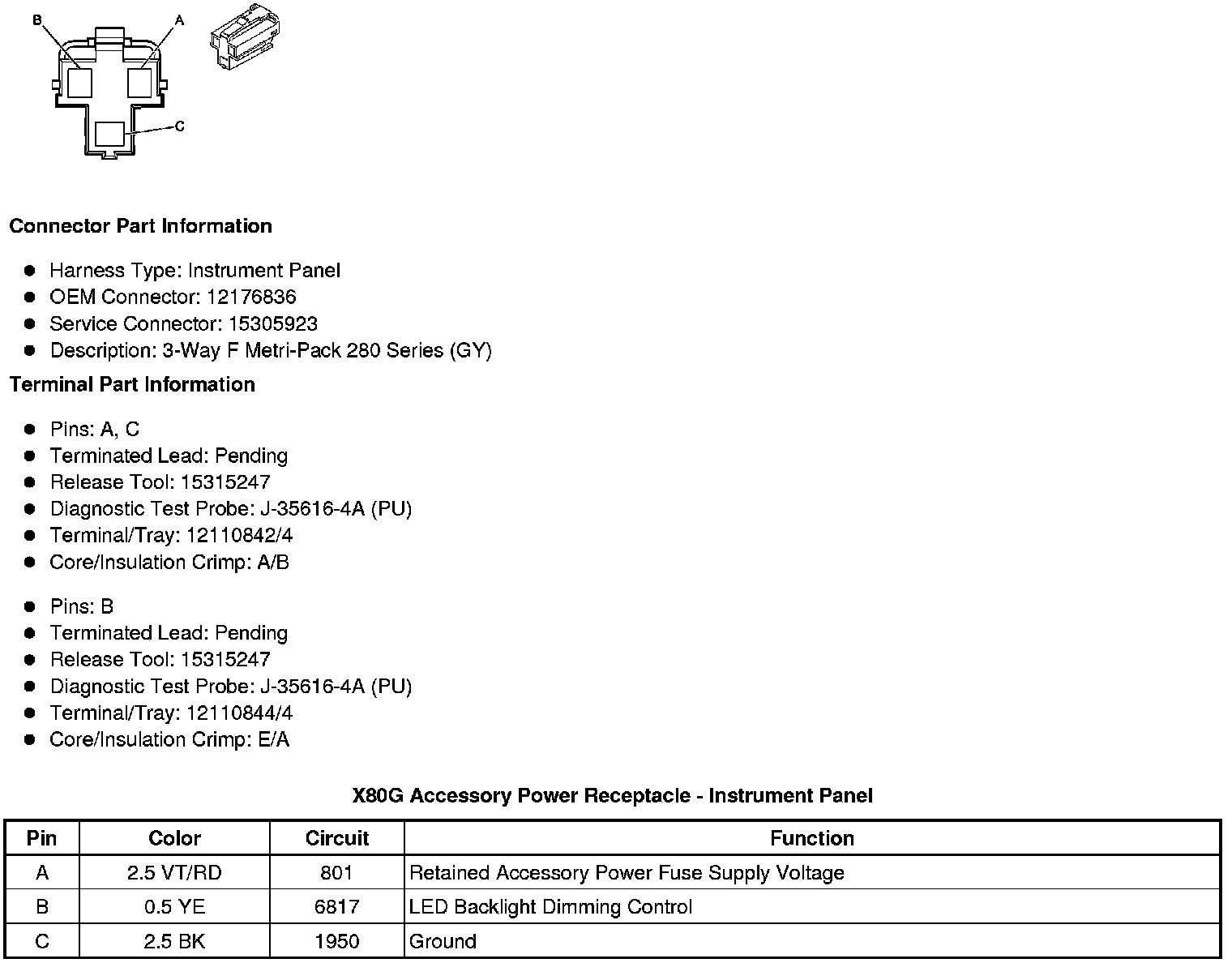

Component Connector End Views
X80G Accessory Power Receptacle - Instrument Panel
