M6R Air Temperature Door Actuator - Right

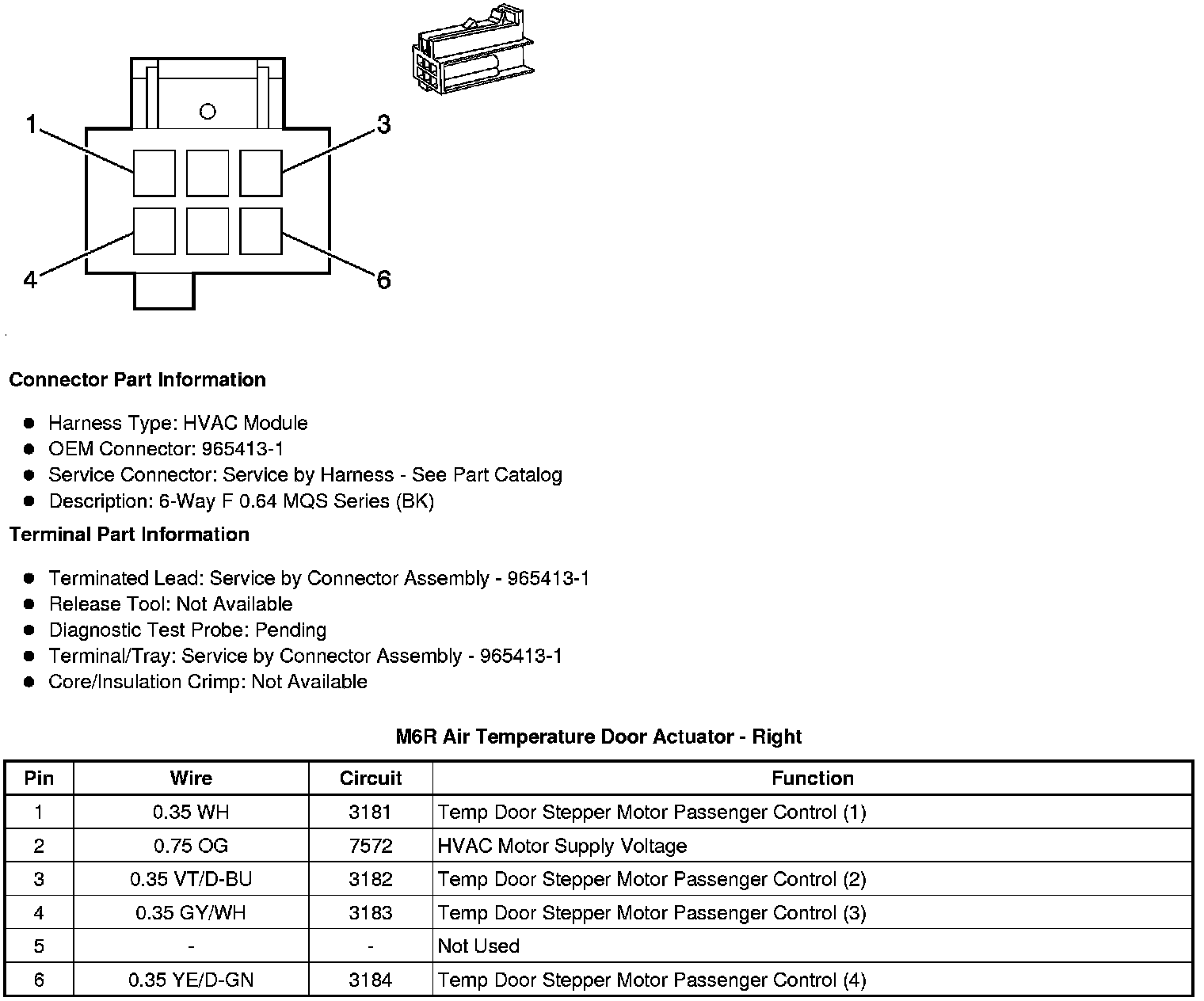

M6R Air Temperature Door Actuator - Right
Component Connector End Views
M6R Air Temperature Door Actuator - Right
