M6L Air Temperature Door Actuator - Left

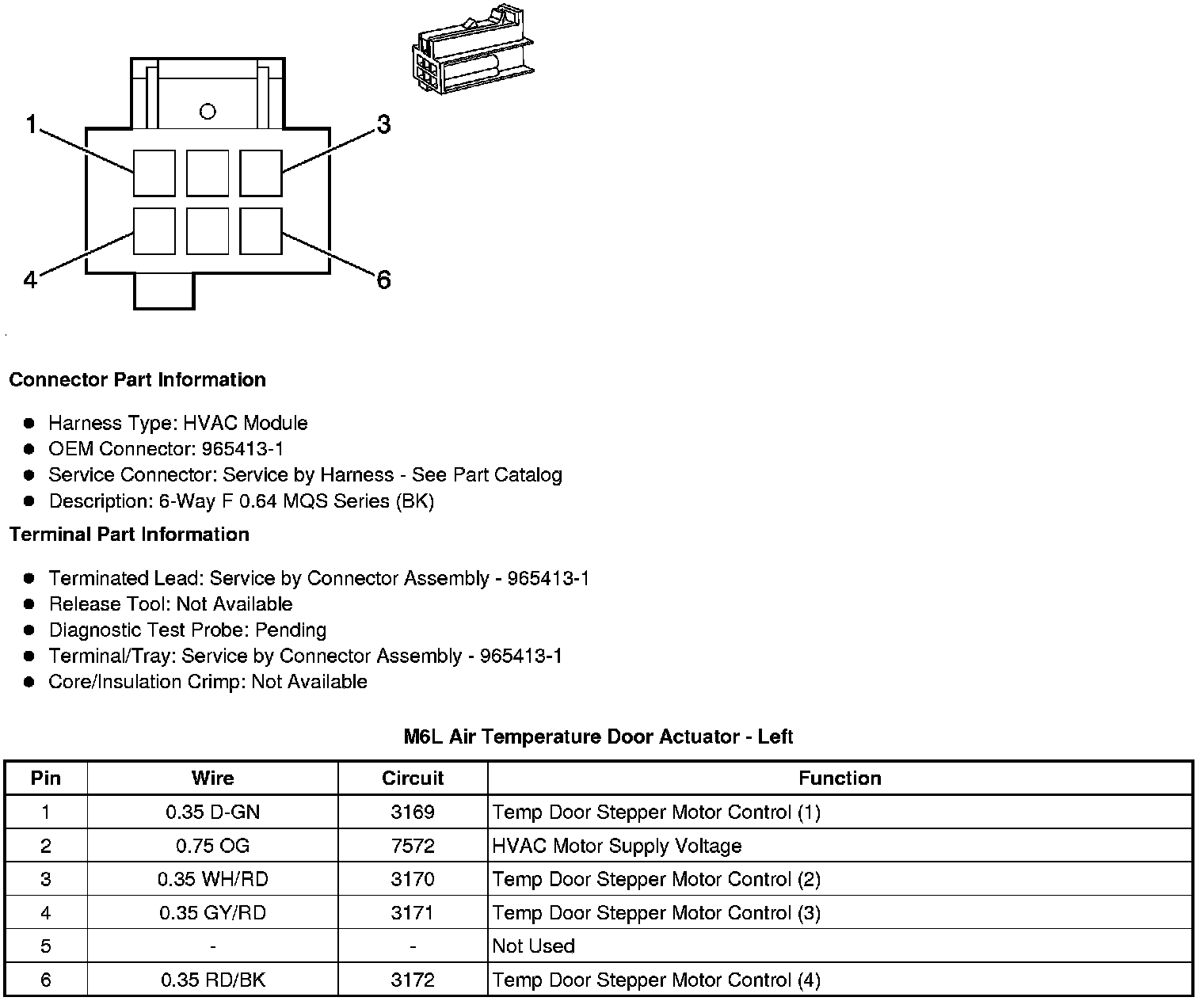

M6L Air Temperature Door Actuator - Left
Component Connector End Views
M6L Air Temperature Door Actuator - Left
