Air Bag
>>
Side Air Bag - Right Rear X1 (AW7)
Side Air Bag - Right Rear X1 (AW7)
Component Connector End Views

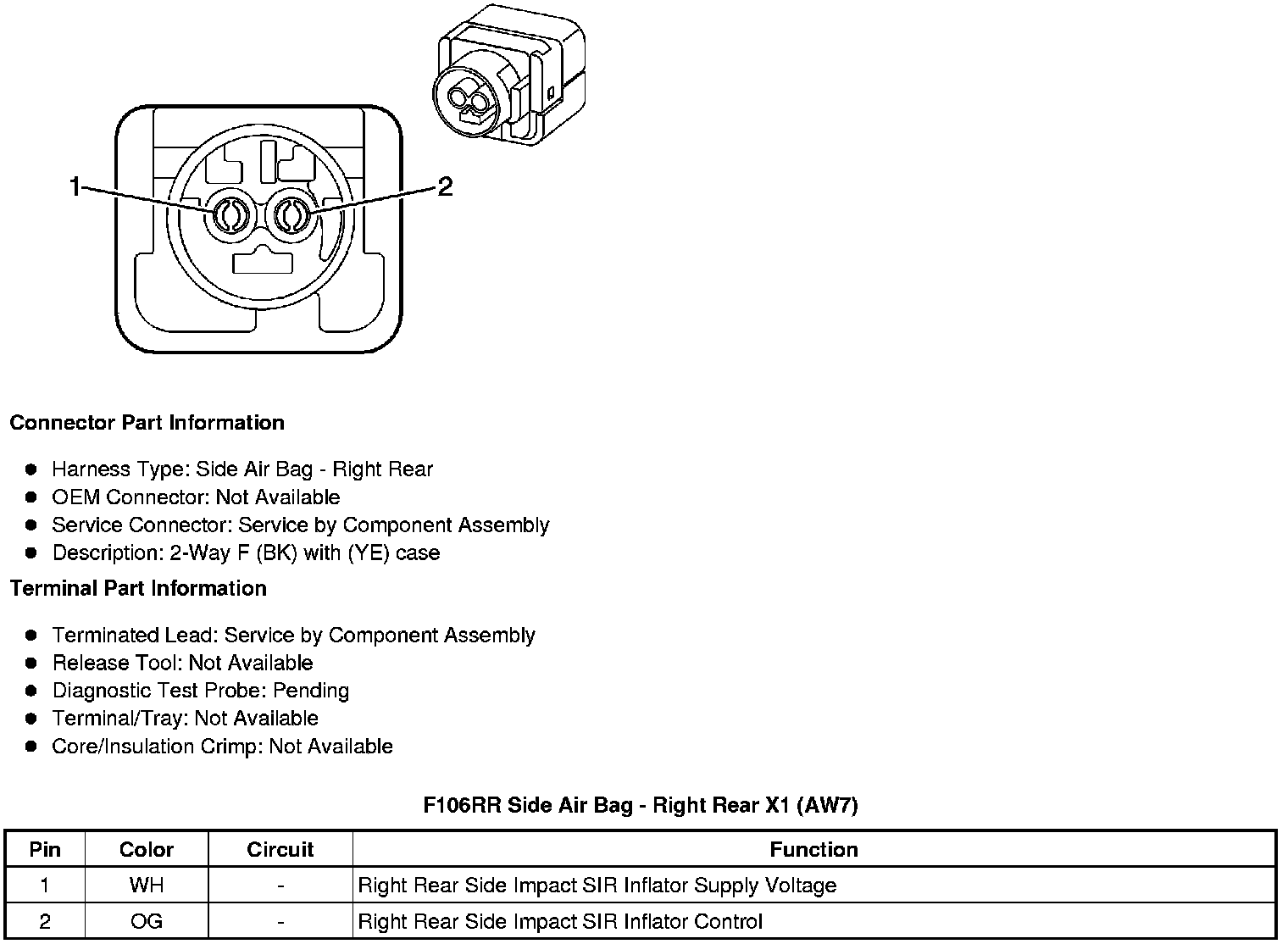

F106RR Side Air Bag - Right Rear X1 (AW7)
