Seat Cushion Trim Cover and Pad Replacement

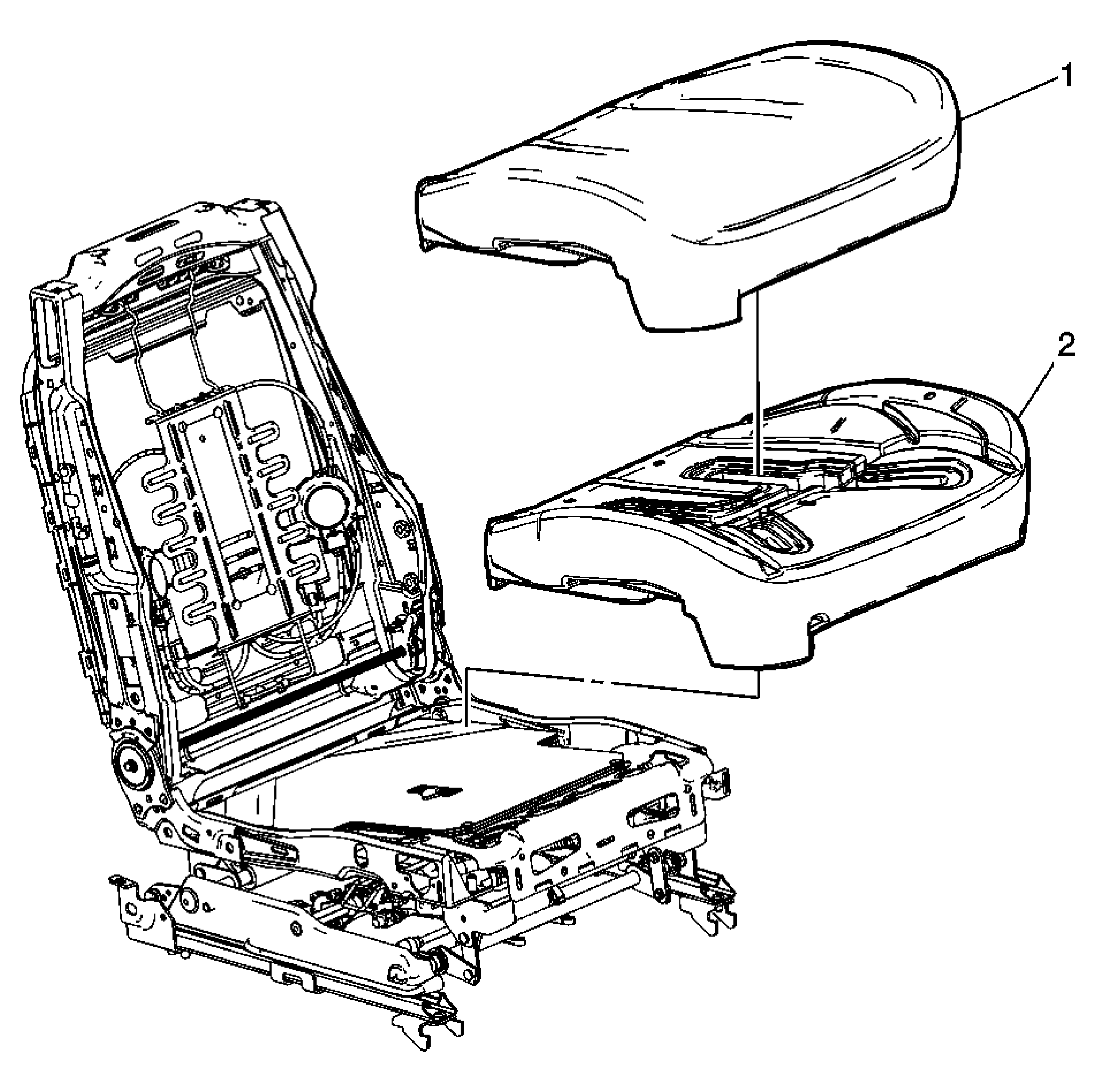

Fig 1: View Of Seat Cushion Trim Cover and Pad
GM1574249Courtesy of GENERAL MOTORS COMPANY
Seat Cushion Trim Cover and Pad Replacement

Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.

CAUTION:

Refer to Fastener Caution .

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the front seat. Refer to Driver or Passenger Seat Replacement .
  3. Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Programming and Setup .
1 Seat Cushion Cover
  1. Disconnect the seat cover J-channel from the seat cushion frame.
  2. Remove the seat cushion cover and pad as an assembly from the seat cushion frame.
  3. Remove the hog rings that secure the pad to the cushion cover.
2 Seat Cushion Pad
