Rear Bumper Fascia Replacement

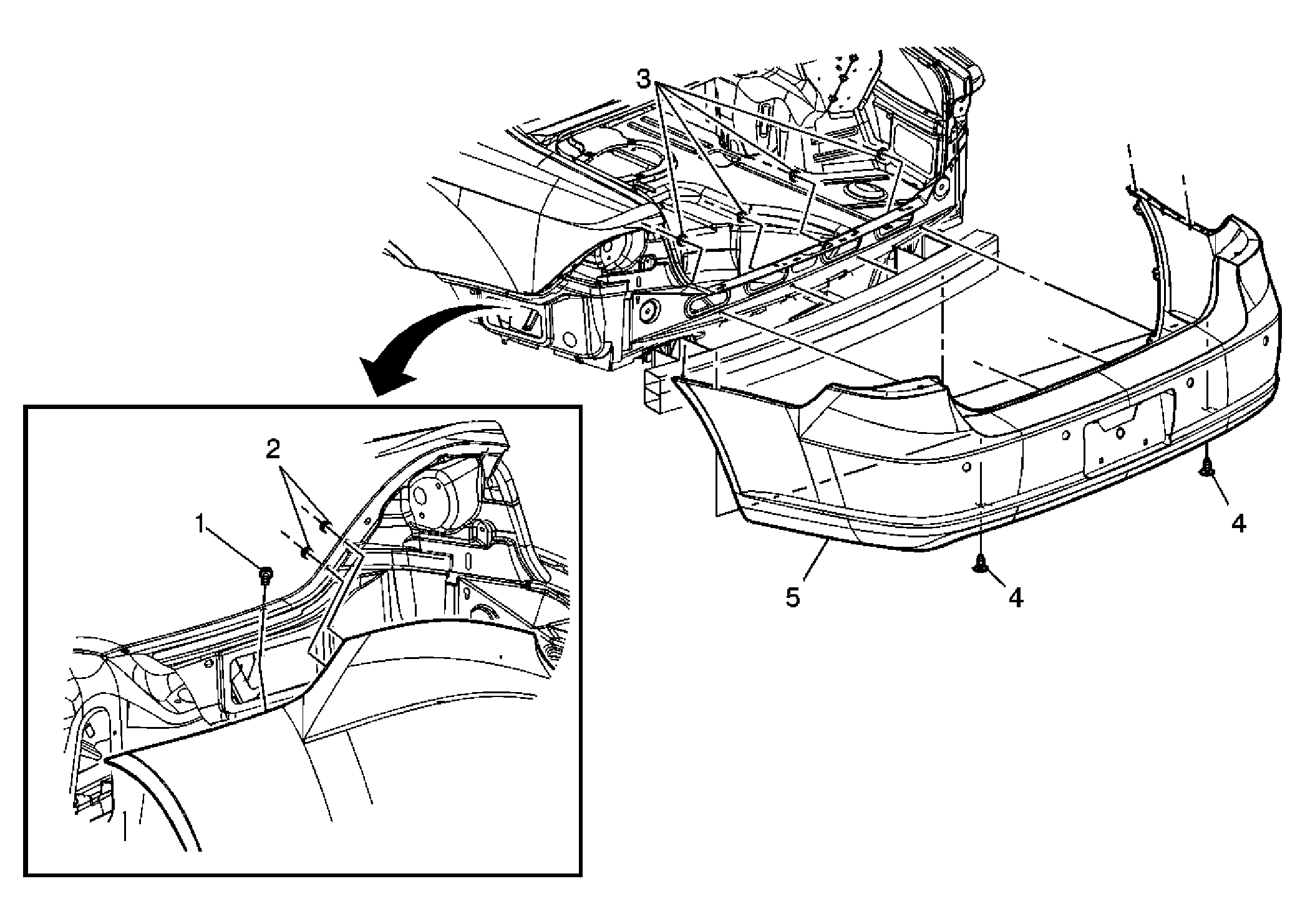

Fig 1: View Of Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment trim sill plate. Refer to Rear Compartment Sill Trim Plate Replacement . Remove the rear bolts from the rear wheelhouse liners. Refer to Rear Wheelhouse Panel Liner Replacement .
1	Rear Fascia Center Upper Bolts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Fascia Nuts (Qty: 4) Tighten 10 N.m (89 lb in)
3	Rear Fascia Bolts (Qty: 4) Tighten 10 N.m (89 lb in)
4	Rear Fascia Retainers (Qty: 2)
5	Rear Fascia TIP: Disconnect the electrical connector.
