Rear Compartment Lid Hinge Torque Rod Replacement

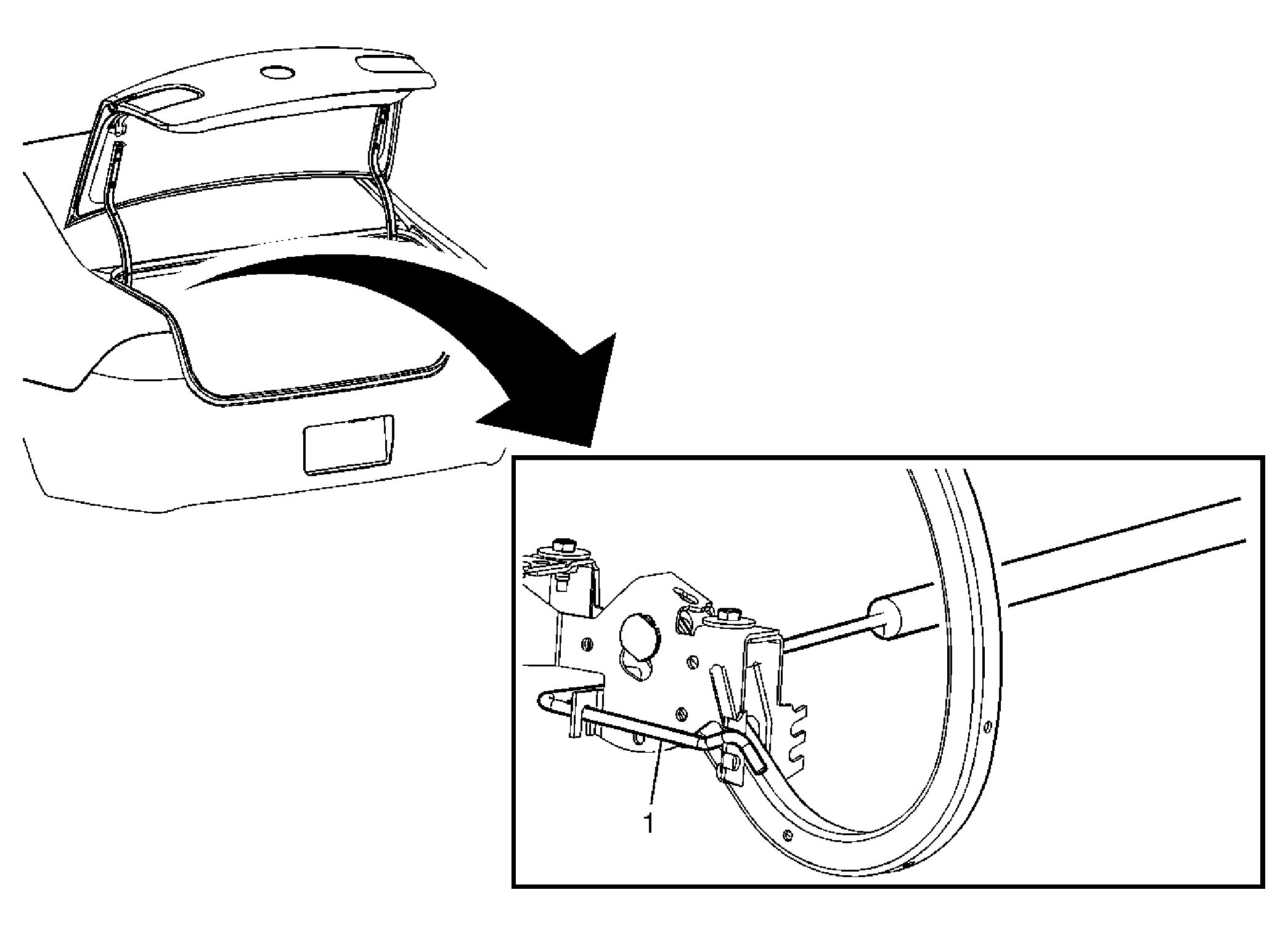

Fig 1: Rear Compartment Lid Hinge Torque Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Lid Hinge Torque Rod WARNING: When a rear compartment lid hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Procedure Support the rear compartment lid in the fully up position. Use the J 41358-A in order to disconnect the torque rod from the rear compartment lid hinge. Ensure the torque rod is properly positioned across the vehicle at the pivot points. Adjust the rear compartment lid hinge torque rod. Refer to Rear Compartment Lid Hinge Torque Rod Adjustment . Special Tools J 41358-A Torque Rod Adjuster

Callout

Component Name

Rear Compartment Lid Hinge Torque Rod

WARNING:

When a rear compartment lid hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Procedure

Support the rear compartment lid in the fully up position.
Use the J 41358-A in order to disconnect the torque rod from the rear compartment lid hinge.
Ensure the torque rod is properly positioned across the vehicle at the pivot points.
Adjust the rear compartment lid hinge torque rod. Refer to Rear Compartment Lid Hinge Torque Rod Adjustment .

Special Tools
J 41358-A Torque Rod Adjuster
