Power, Ground, and Serial Data Wiring Schematics

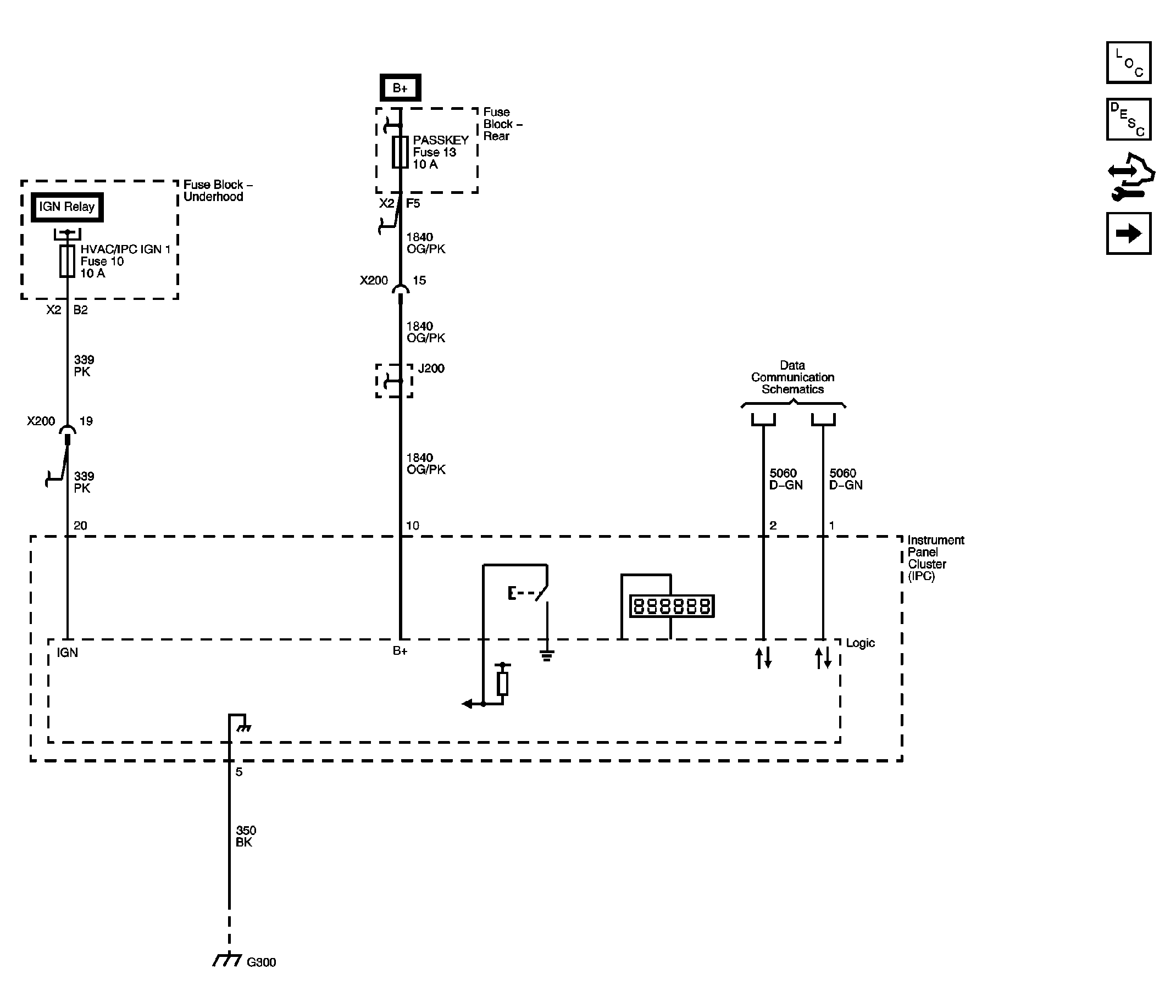

Fig 1: Power, Ground, and Serial Data Wiring Schematic

GM2403409

Courtesy of GENERAL MOTORS COMPANY
