Inflatable Restraint Indicator and Driver Information Display Wiring Schematics

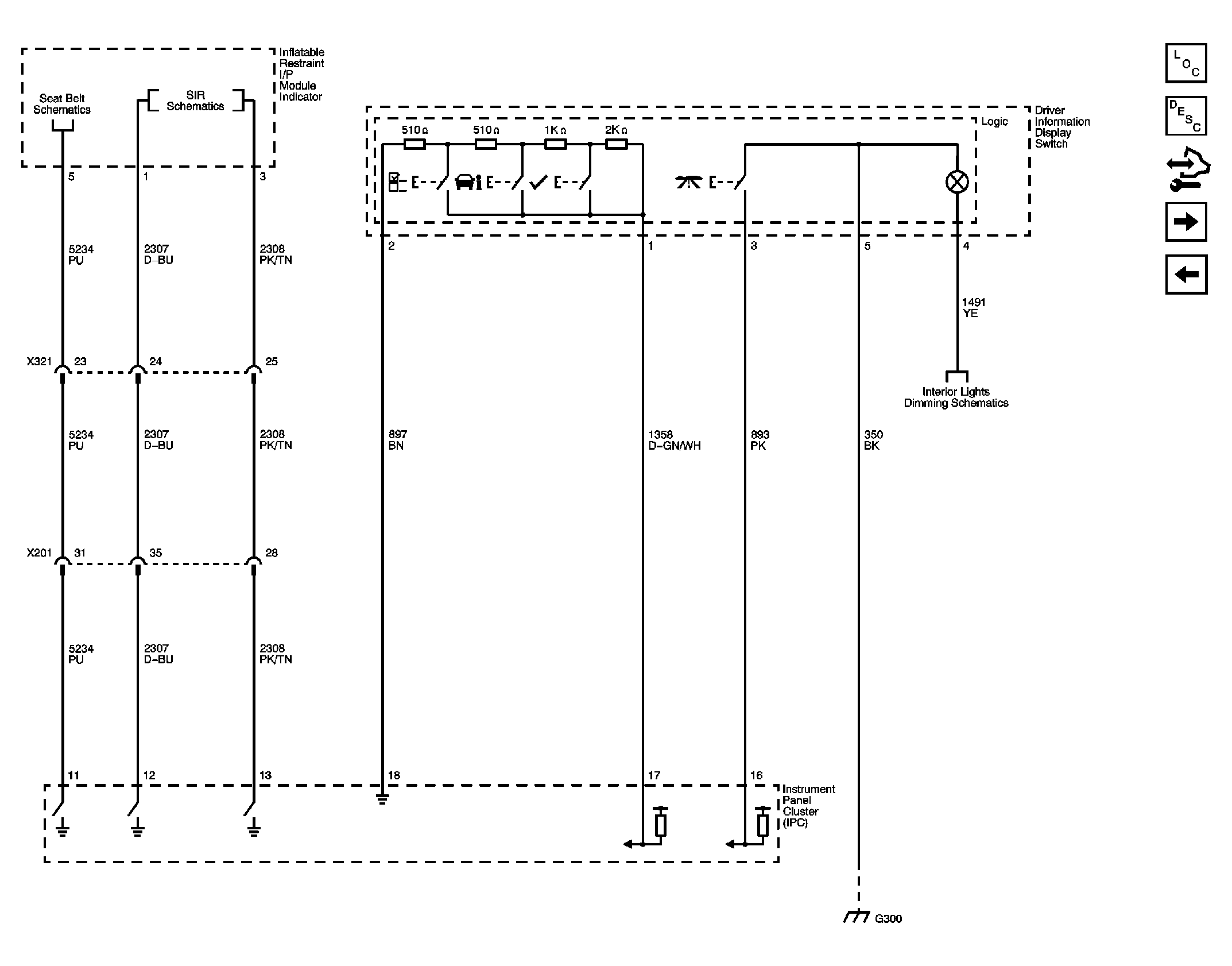

Fig 1: Inflatable Restraint Indicator and Driver Information Display Wiring Schematic

GM2403414

Courtesy of GENERAL MOTORS COMPANY
