Engine Oil and Fuel Level Wiring Schematics

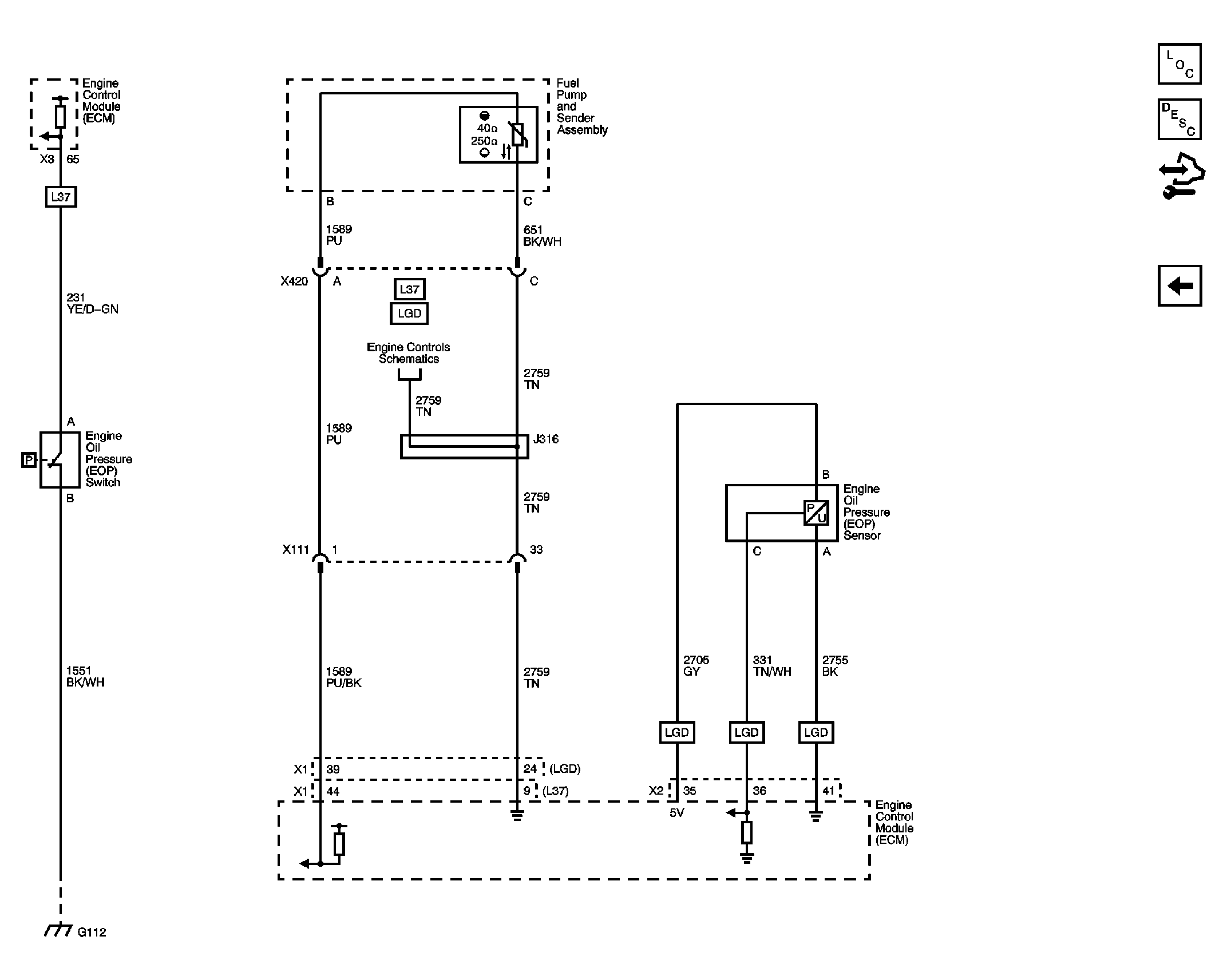

Fig 1: Engine Oil and Fuel Level Wiring Schematic

GM2403417

Courtesy of GENERAL MOTORS COMPANY
