Liftgate Weatherstrip Replacement

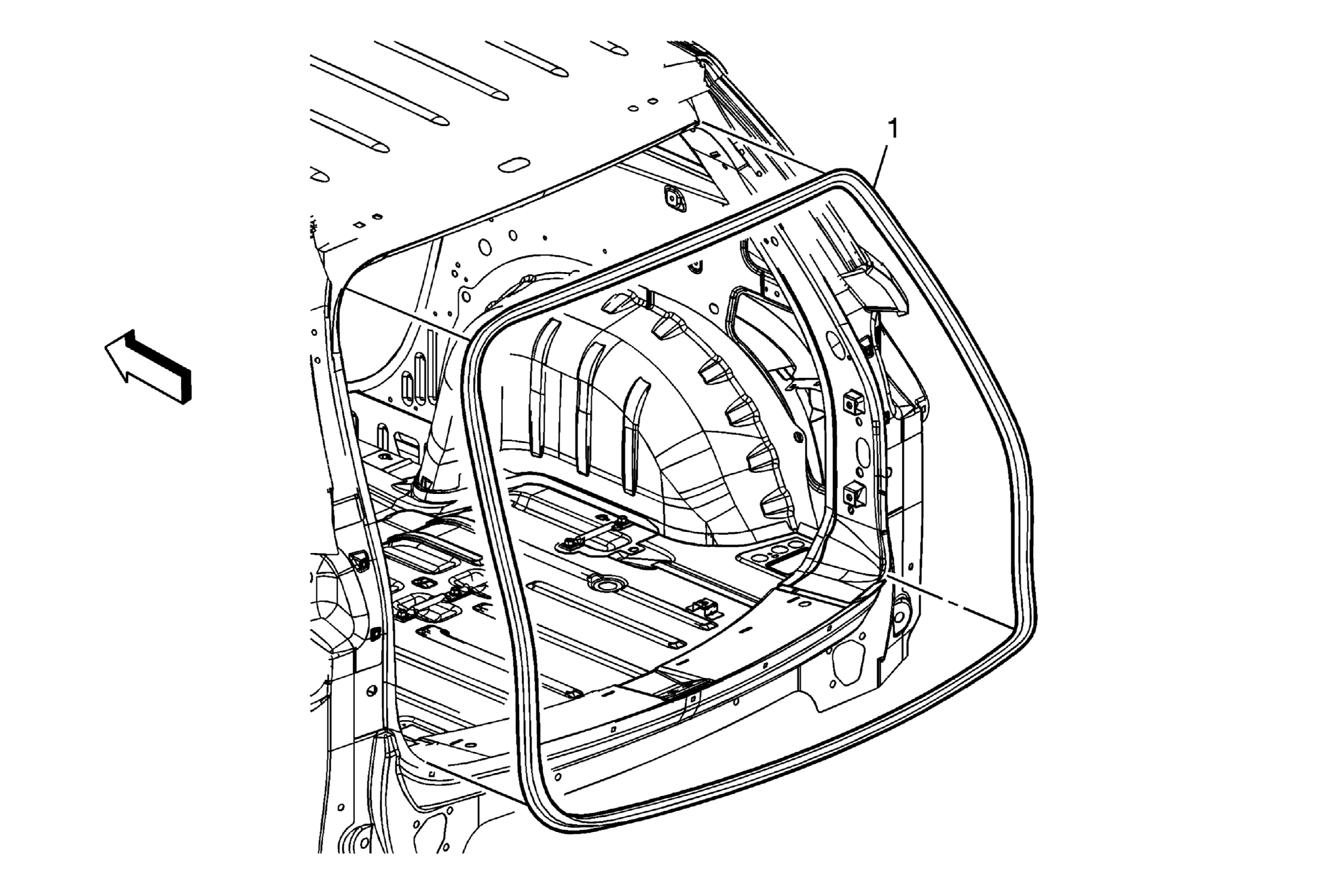

Fig 1: Identifying Liftgate Weatherstrip

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the liftgate actuator rod, if equipped. Refer to Liftgate Actuator Rod Replacement . Remove the tail lamps. Refer to Tail Lamp Replacement (Enclave) , Tail Lamp Replacement (Acadia) , Tail Lamp Replacement (Traverse) .
1	Liftgate Weatherstrip Procedure Clean the area where the seal will be mounted. Use a suitable solvent with a mixture of 50 percent isopropyl alcohol and 50 percent water by volume, or high-flash naphtha.

Callout

Component Name

Preliminary Procedures

Disconnect the liftgate actuator rod, if equipped. Refer to Liftgate Actuator Rod Replacement .
Remove the tail lamps. Refer to Tail Lamp Replacement (Enclave) , Tail Lamp Replacement (Acadia) , Tail Lamp Replacement (Traverse) .

Liftgate Weatherstrip
Procedure
Clean the area where the seal will be mounted. Use a suitable solvent with a mixture of 50 percent isopropyl alcohol and 50 percent water by volume, or high-flash naphtha.
