Liftgate Strut Replacement

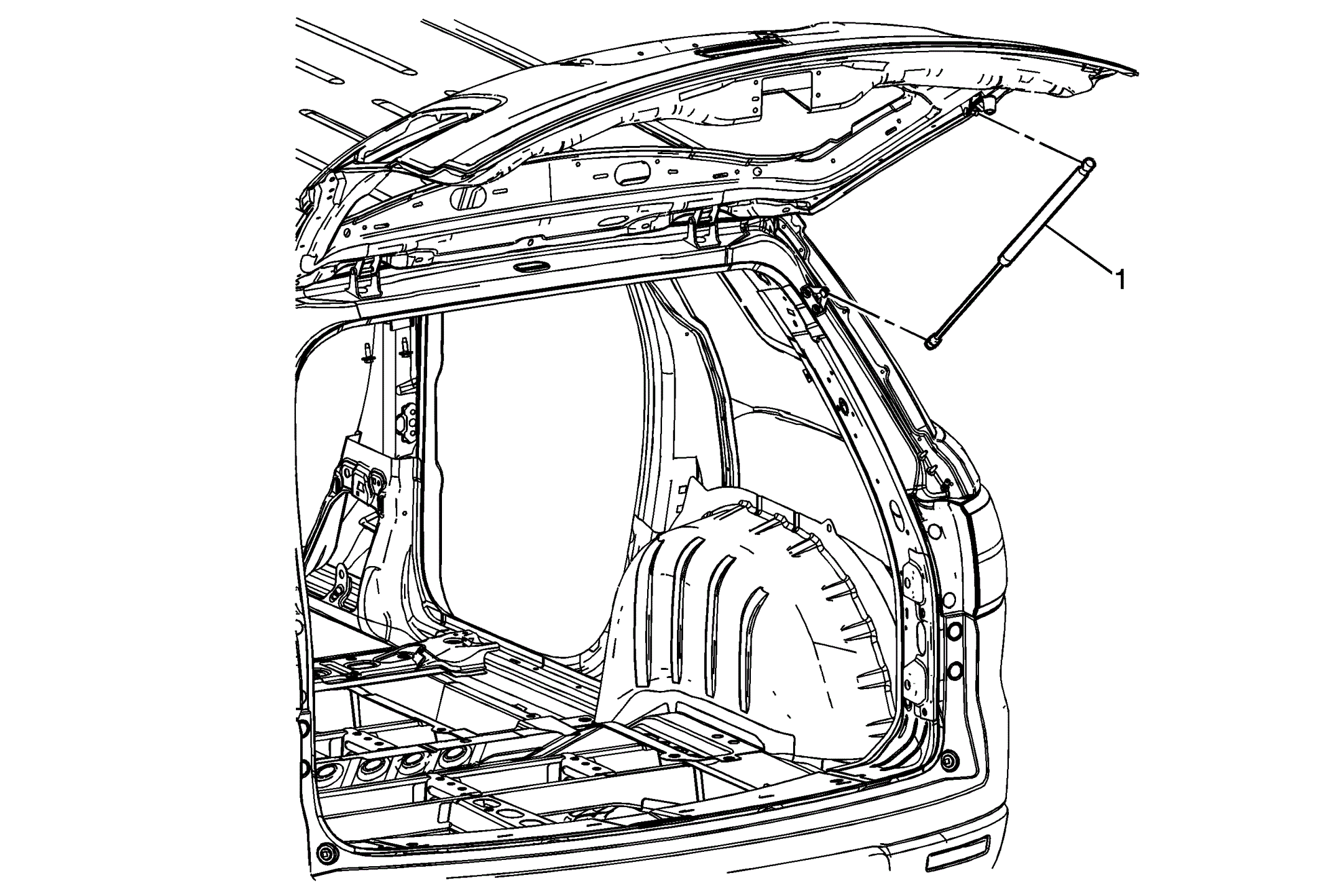

Fig 1: Identifying Liftgate Strut

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Strut WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. CAUTION: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Procedure Release the locking tabs on the strut. Ensure the clip is fully seated when rod is re-installed. If the clip cannot be fully seated, a new rod should be installed.

Callout

Component Name

Liftgate Strut

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

CAUTION:

Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

Procedure

Release the locking tabs on the strut.
Ensure the clip is fully seated when rod is re-installed. If the clip cannot be fully seated, a new rod should be installed.
