Installation Procedure

WARNING: This page is about a different variant/trim than selected.

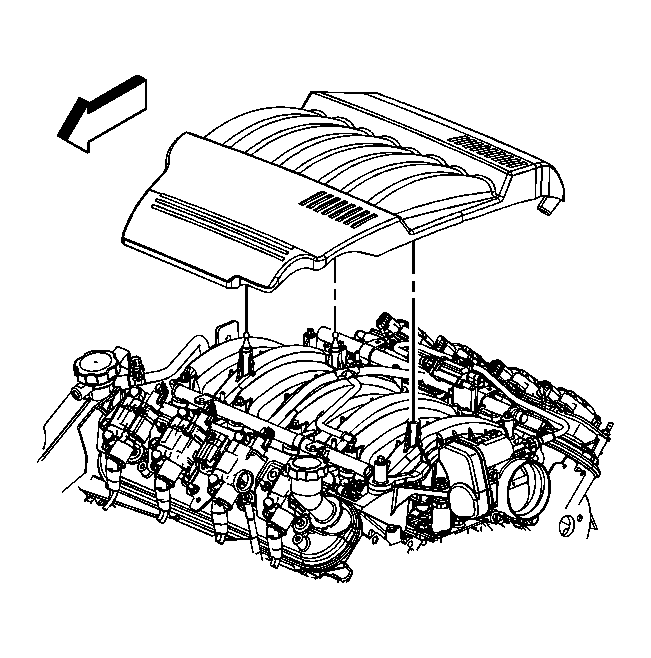

    Fig 1: View Of Sight Shield
    GM1551851Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When installing the engine sight shield, ensure the heater hoses sit on top of the shield to prevent wear over time.
  1. Align the sight shield to the studs on the intake manifold.
  2. Push down in the 3 locations in order to secure the sight shield to the studs.
