Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Oil Pan-To-Rear Cover Bolts
    GM680413Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement .
  2. Remove the oil pan-to-rear oil seal housing bolts (1).

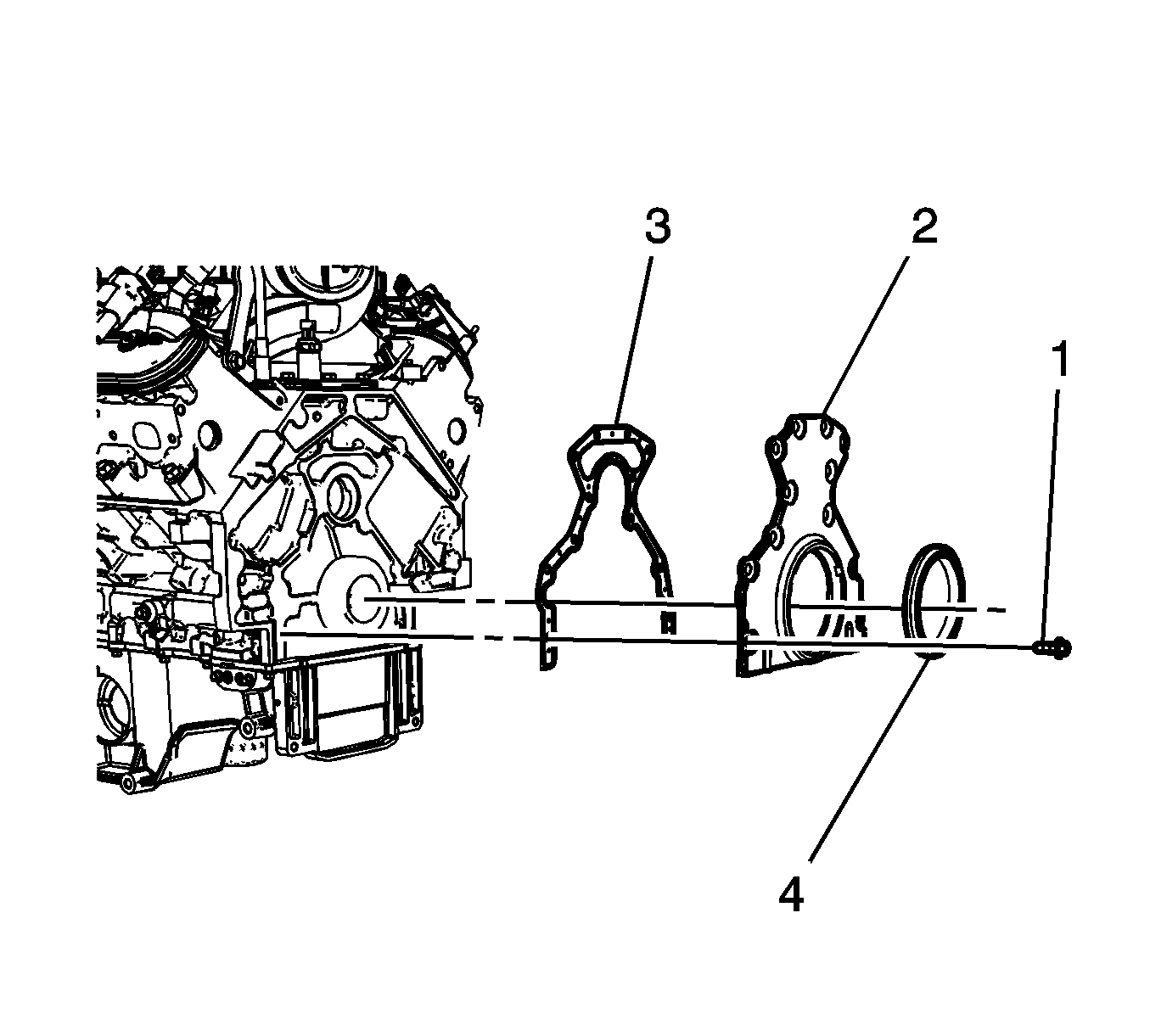

    3. Fig 2: Rear Oil Seal Housing & Bolts
    GM2100849Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear oil seal housing bolts (1).
  4. Remove the rear oil seal housing (2) and gasket (3). Discard the gasket.
  5. Remove and discard the rear oil seal (4).
