Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE:
    • Do not reuse the crankshaft oil seal or rear cover gasket.
    • Do not apply any type of sealant to the rear cover gasket, unless specified.
    • The special tool in this procedure is used to properly center the crankshaft rear oil seal.
    • All gasket surfaces should be free of oil or other foreign material during assembly.
    • The crankshaft rear oil seal MUST be centered in relation to the crankshaft.
    • An improperly aligned rear cover may cause premature rear oil seal wear and/or engine assembly oil leaks.

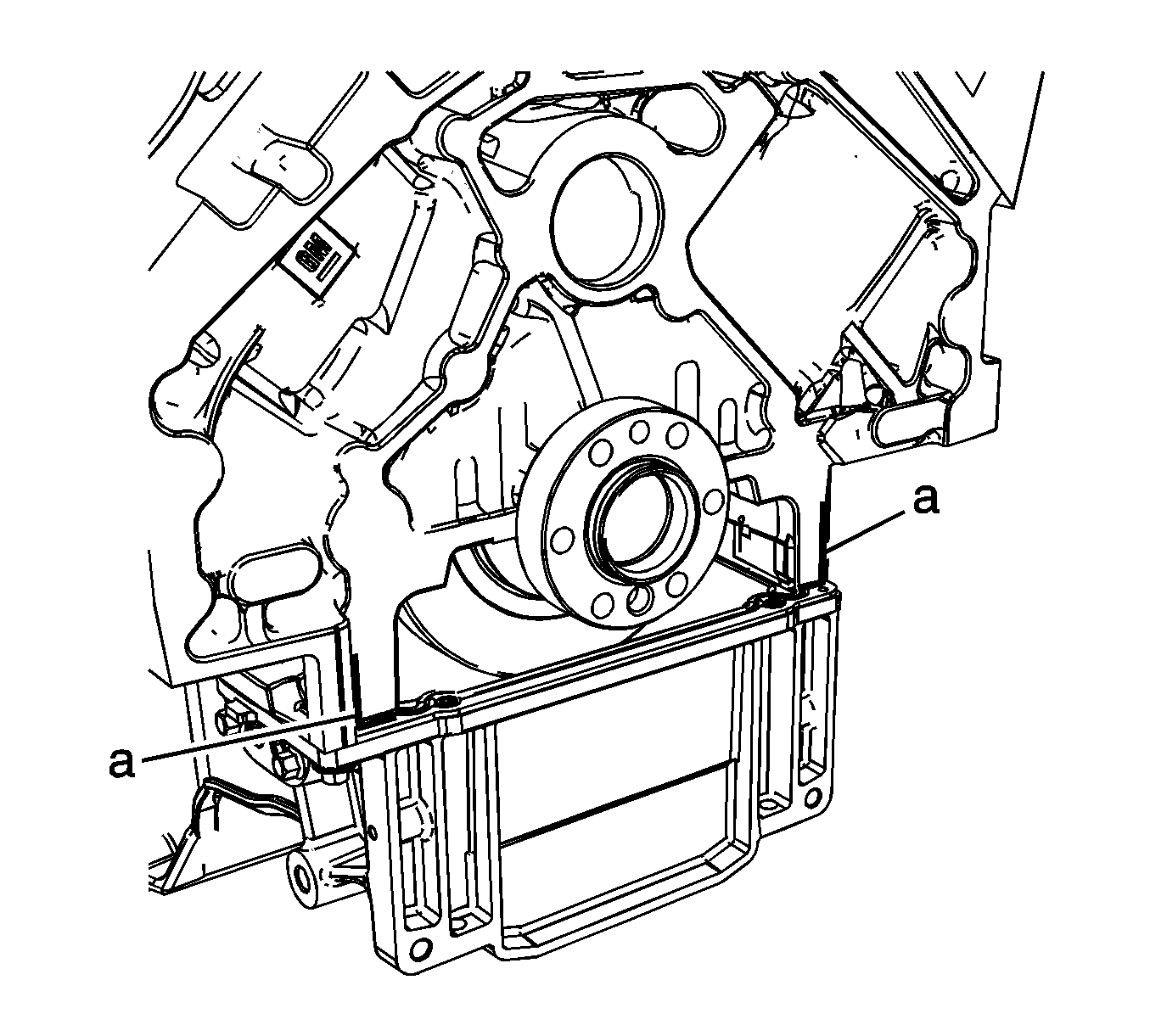

    Fig 1: Locating Joints At Rear Of Block/Pan
    GM2108436Courtesy of GENERAL MOTORS CORP.
  1. Apply a 5 mm (0.2 in) bead of sealant, 20 mm (0.8 in) to the 2 joints (a) at the rear of the block/pan. Refer to Adhesives, Fluids, Lubricants, and Sealers .
    2. Fig 2: View Of Engine Block Rear Oil Gallery Plug
    GM63228Courtesy of GENERAL MOTORS CORP.
  2. Inspect the rear oil gallery plug for proper installation.
