Installation Procedure - Cover with Seal

WARNING: This page is about a different variant/trim than selected.
  1. Install the J 41479-2A  cone and bolts onto the rear of the crankshaft. See Special Tools .

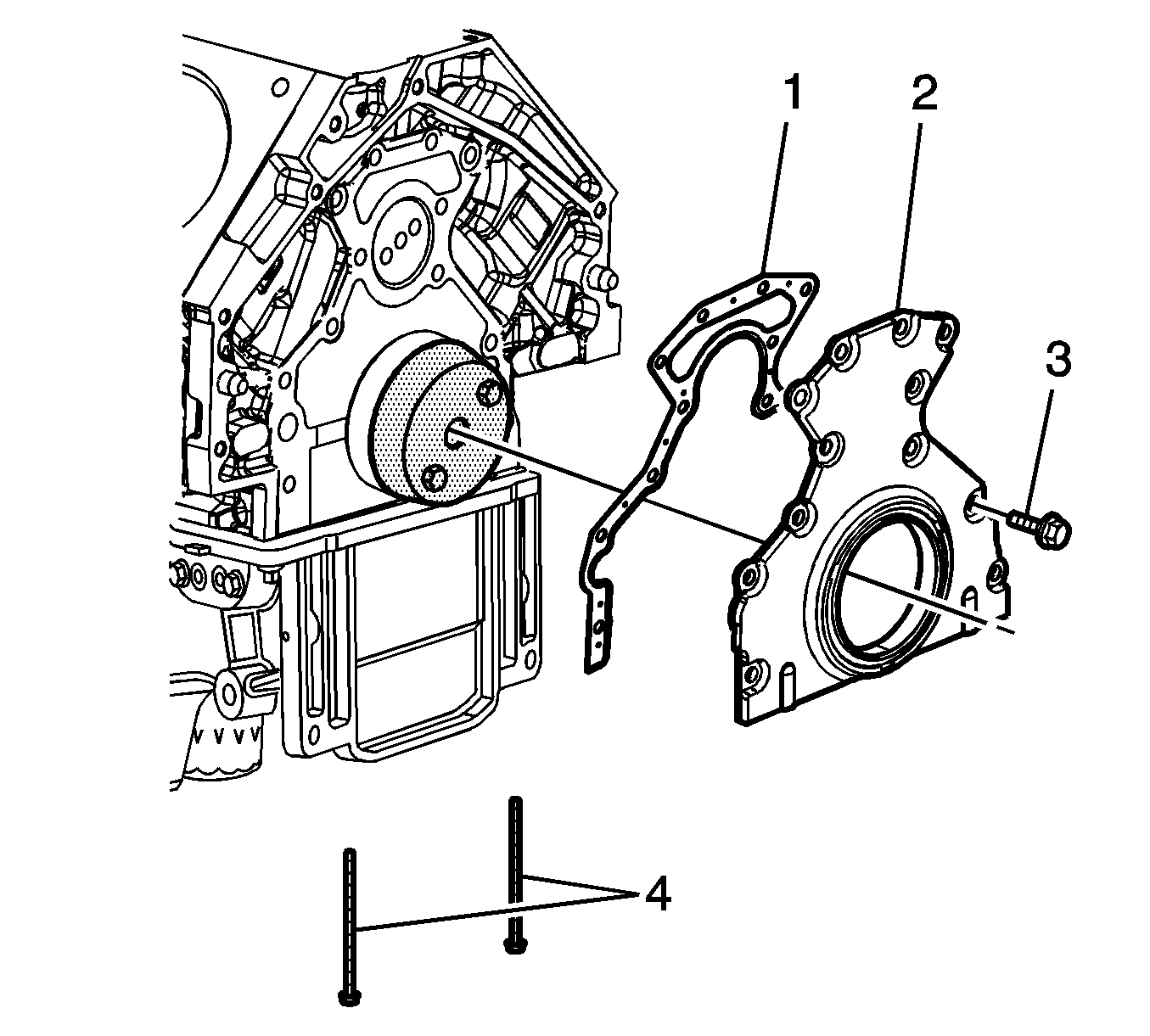

    2. Fig 1: Rear Housing Gasket, Rear Housing & Seal
    GM2100848Courtesy of GENERAL MOTORS CORP.
  2. Install the NEW rear housing gasket (1), rear housing with seal (2), rear housing-to-engine bolts (3) and oil pan-to-rear housing bolts (4).
    3. CAUTION: Refer to Fastener Caution .
  3. Tighten the rear housing-to-engine bolts (3) until snug. Do not overtighten.

    Tighten:  Tighten the oil pan-to-rear housing bolts (4) to 12 N.m (106 lb in).

  4. Tighten the rear housing-to-engine bolts (3).

    Tighten:  Tighten the bolts to 30 N.m (22 lb ft).

  5. Remove the J 41479-2A  . See Special Tools .
  6. Install the engine flywheel. Refer to Engine Flywheel Replacement .
