Starting and Charging Schematics

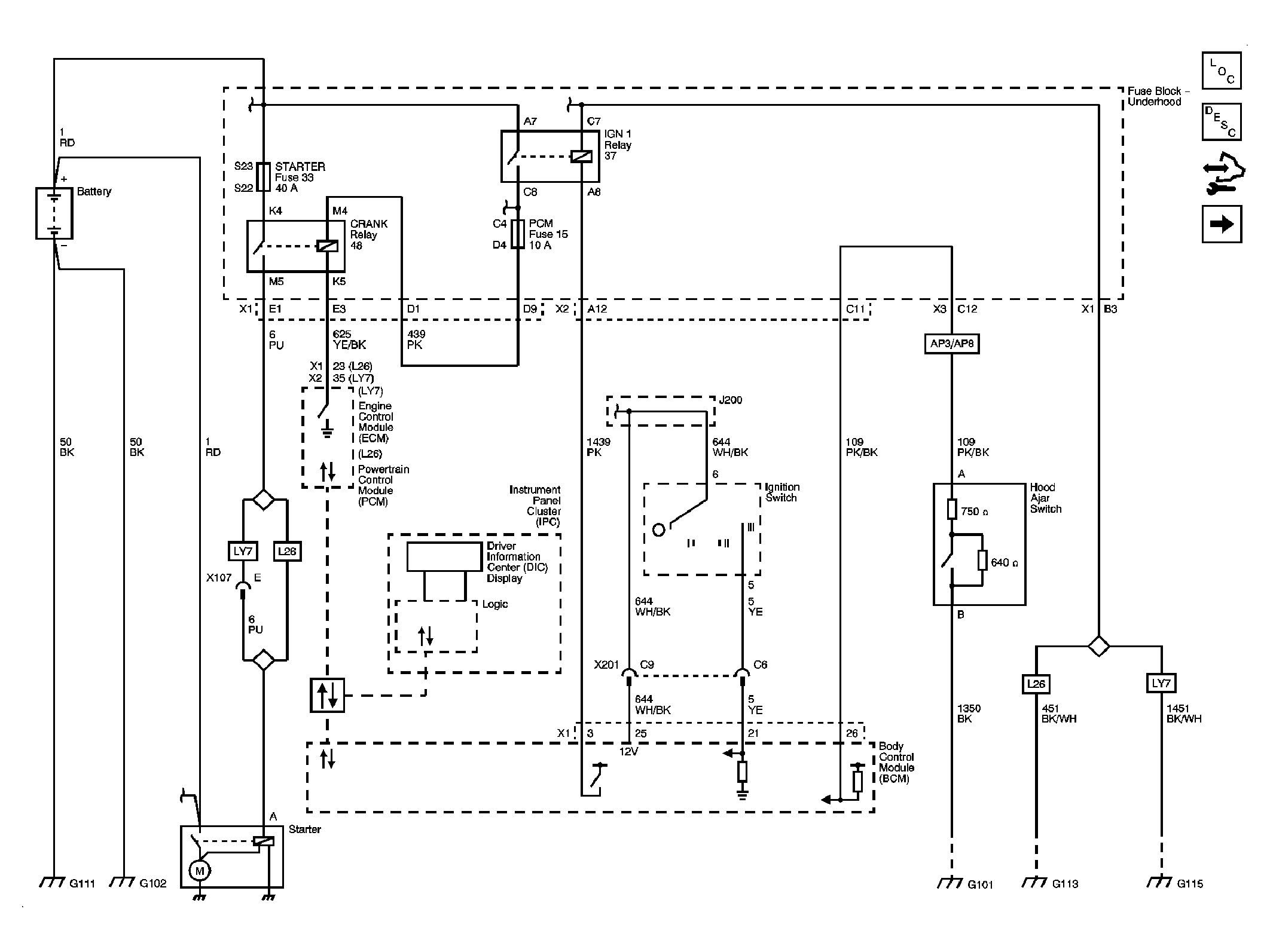

Fig 1: Starting - L26

GM2081629

Courtesy of GENERAL MOTORS CORP.

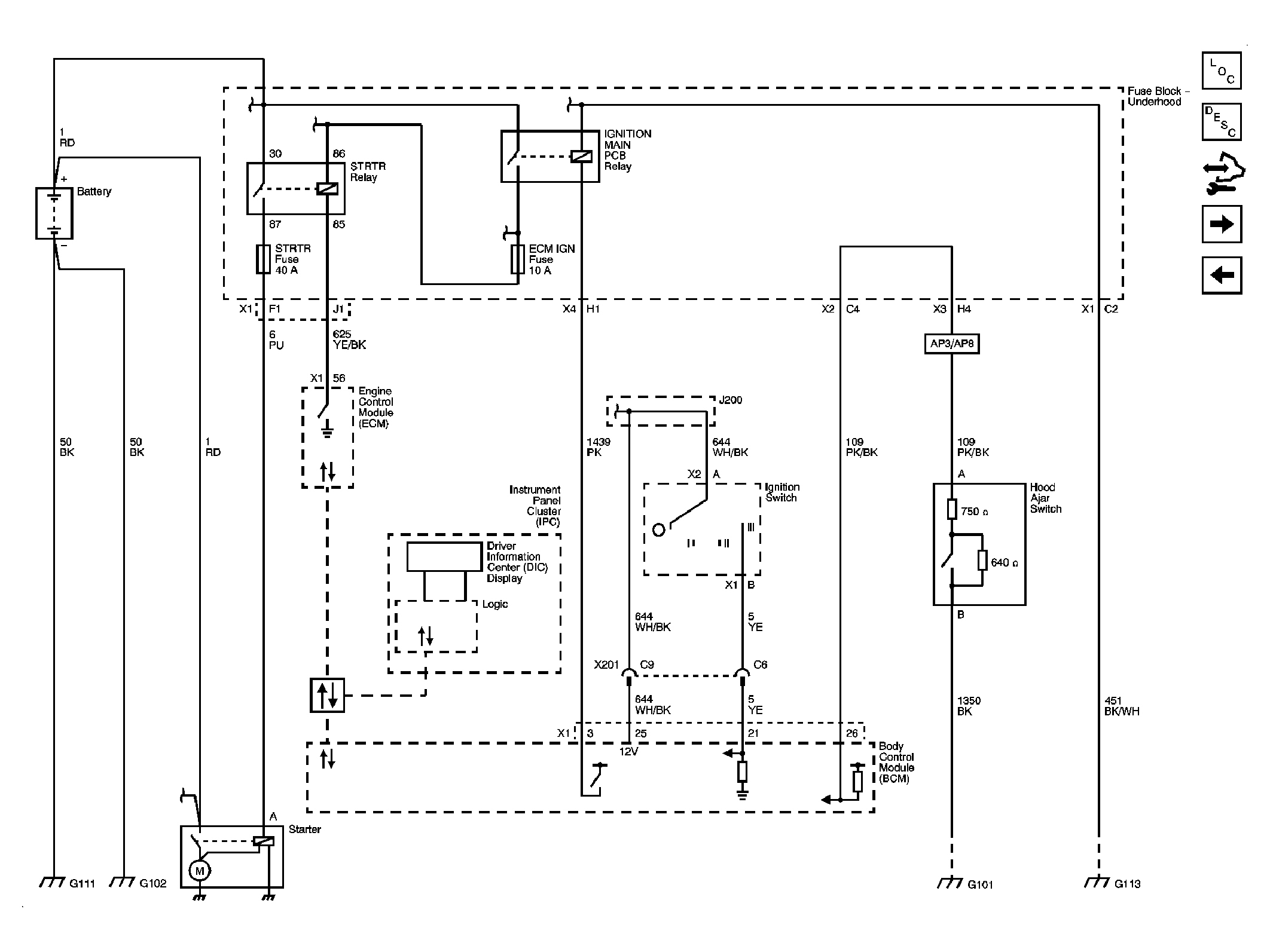

Fig 2: Starting - LY7

GM2081639

Courtesy of GENERAL MOTORS CORP.

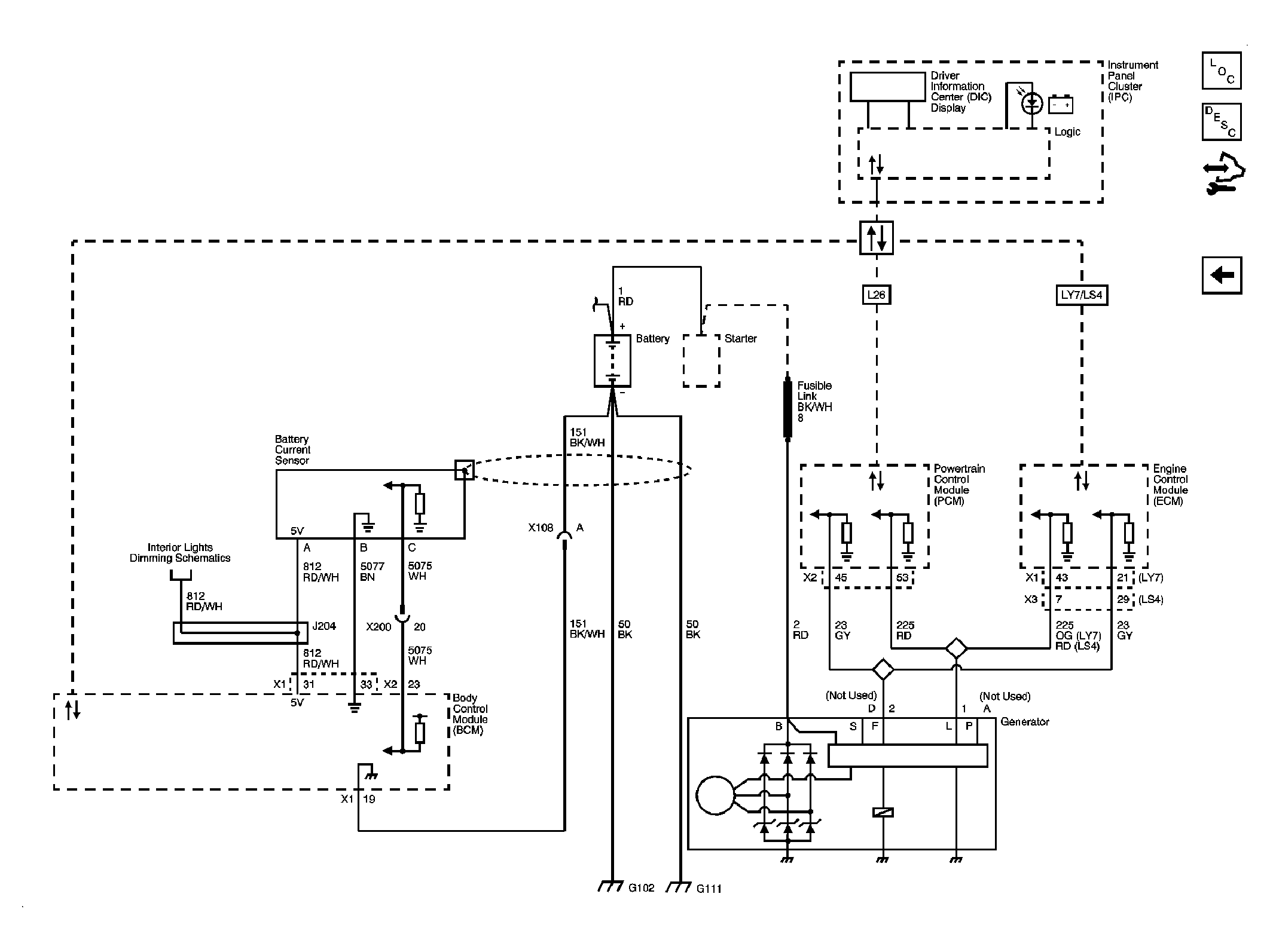

Fig 3: Charging

GM2081644

Courtesy of GENERAL MOTORS CORP.
