Ground Distribution Schematics

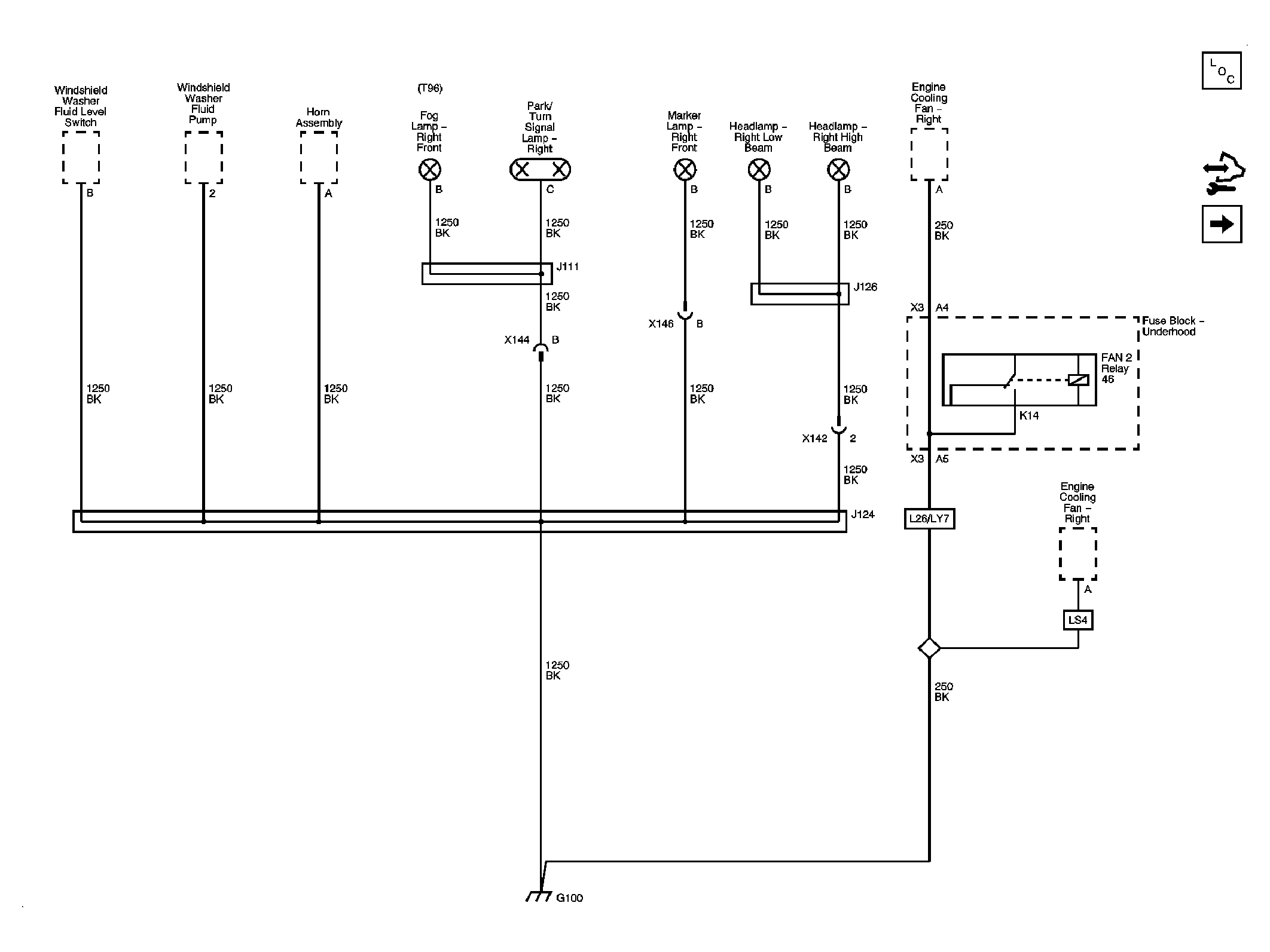

Fig 1: G100

Courtesy of GENERAL MOTORS CORP.

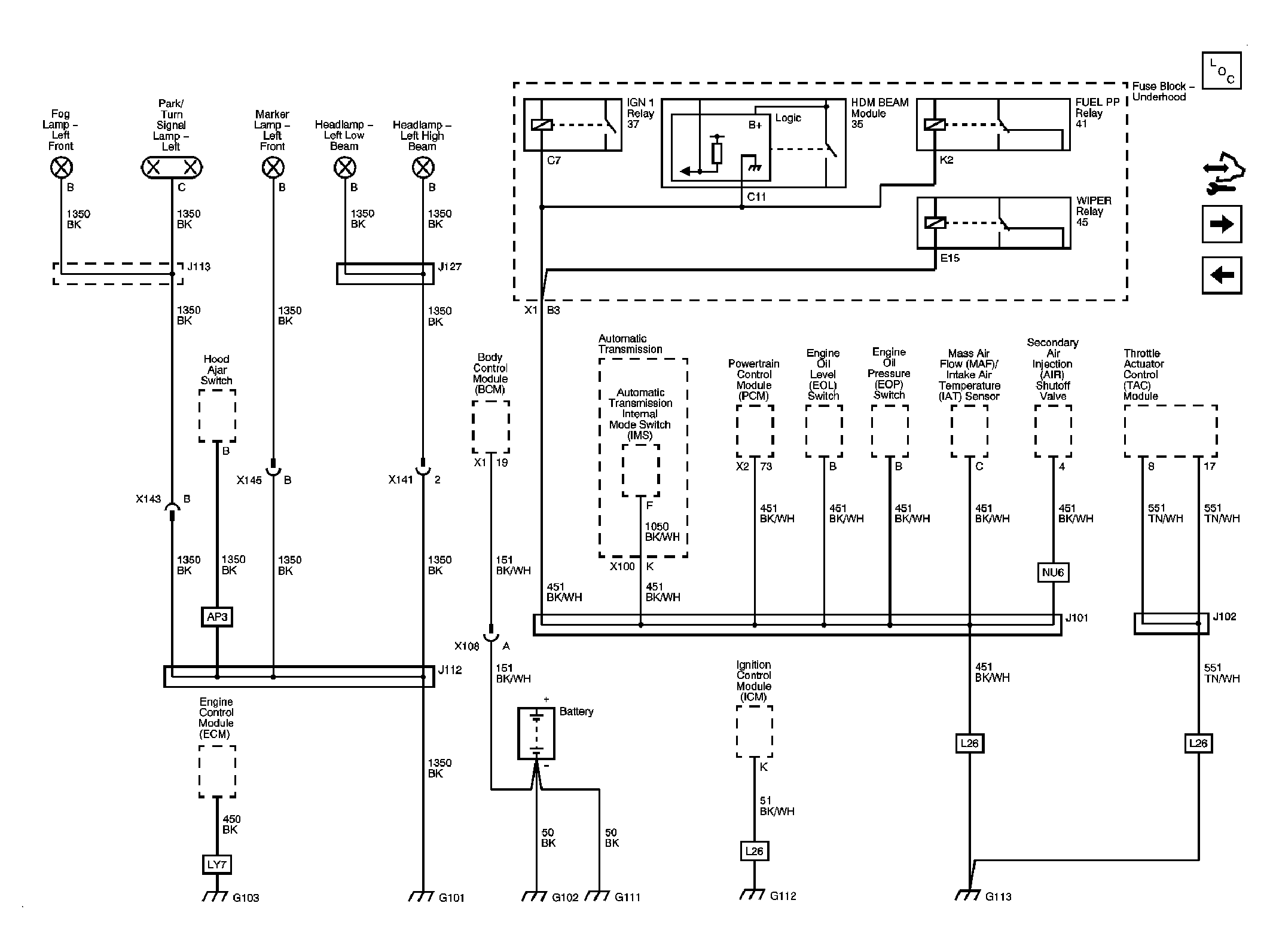

Fig 2: G101, G102, G103(LY7), G111, G112 (L26), and G113 (L26)

Courtesy of GENERAL MOTORS CORP.

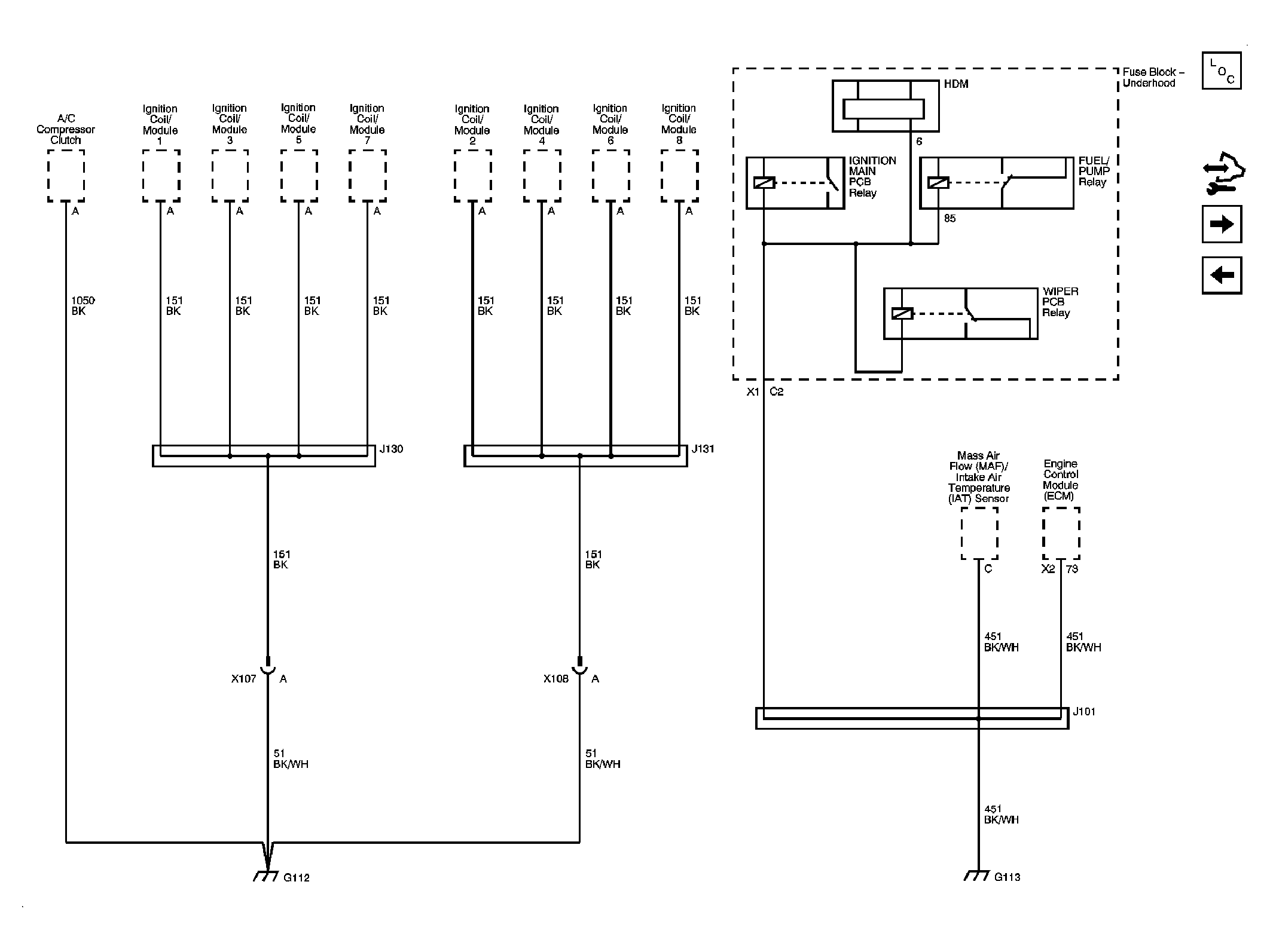

Fig 3: G112, G113 (LS4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: G115 (L26/LS4)

Courtesy of GENERAL MOTORS CORP.

Fig 5: G115 (LY7)

Courtesy of GENERAL MOTORS CORP.

Fig 6: G130, G131 (LY7)

Courtesy of GENERAL MOTORS CORP.

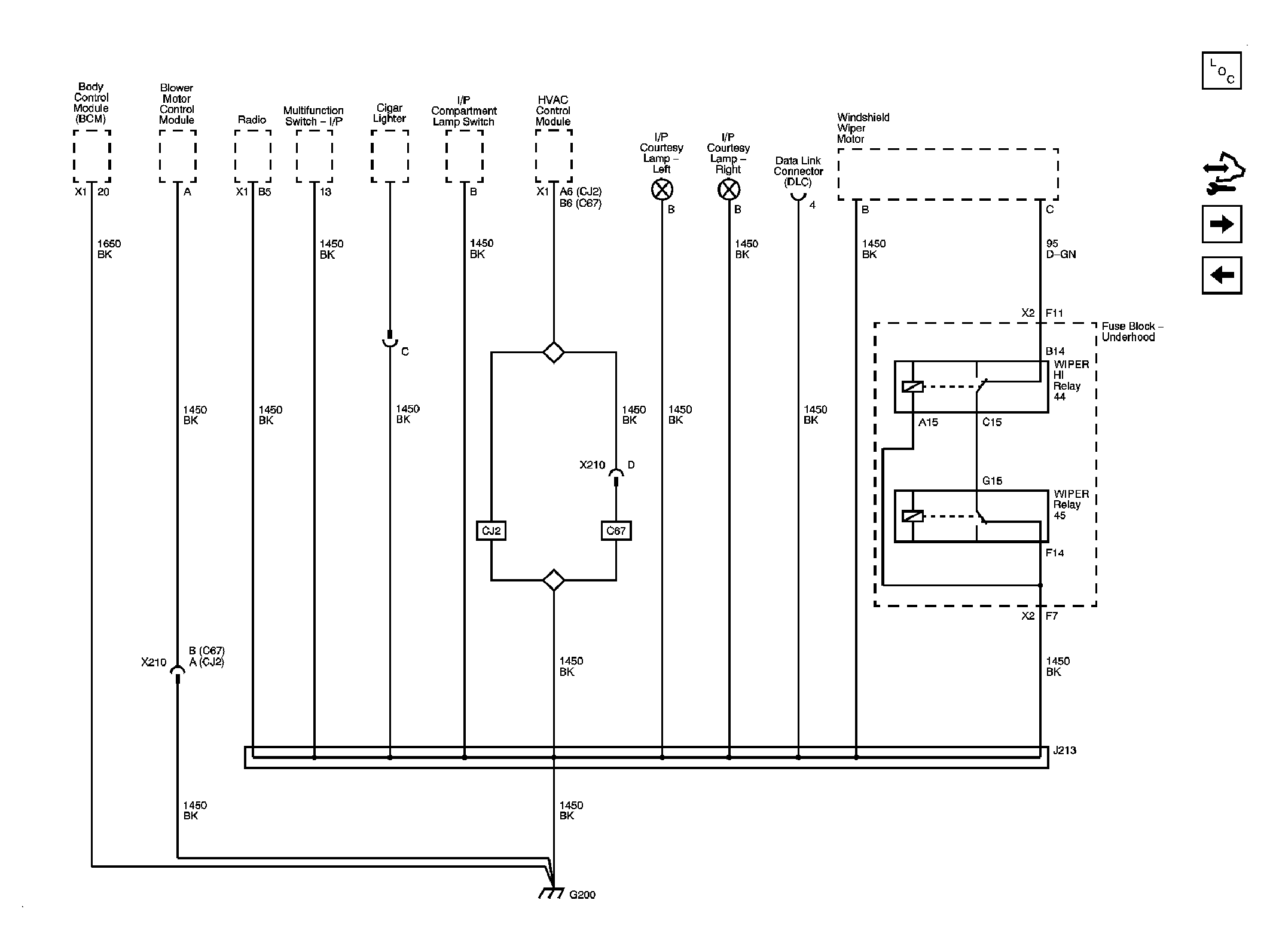

Fig 7: G200

Courtesy of GENERAL MOTORS CORP.

Fig 8: G201

Courtesy of GENERAL MOTORS CORP.

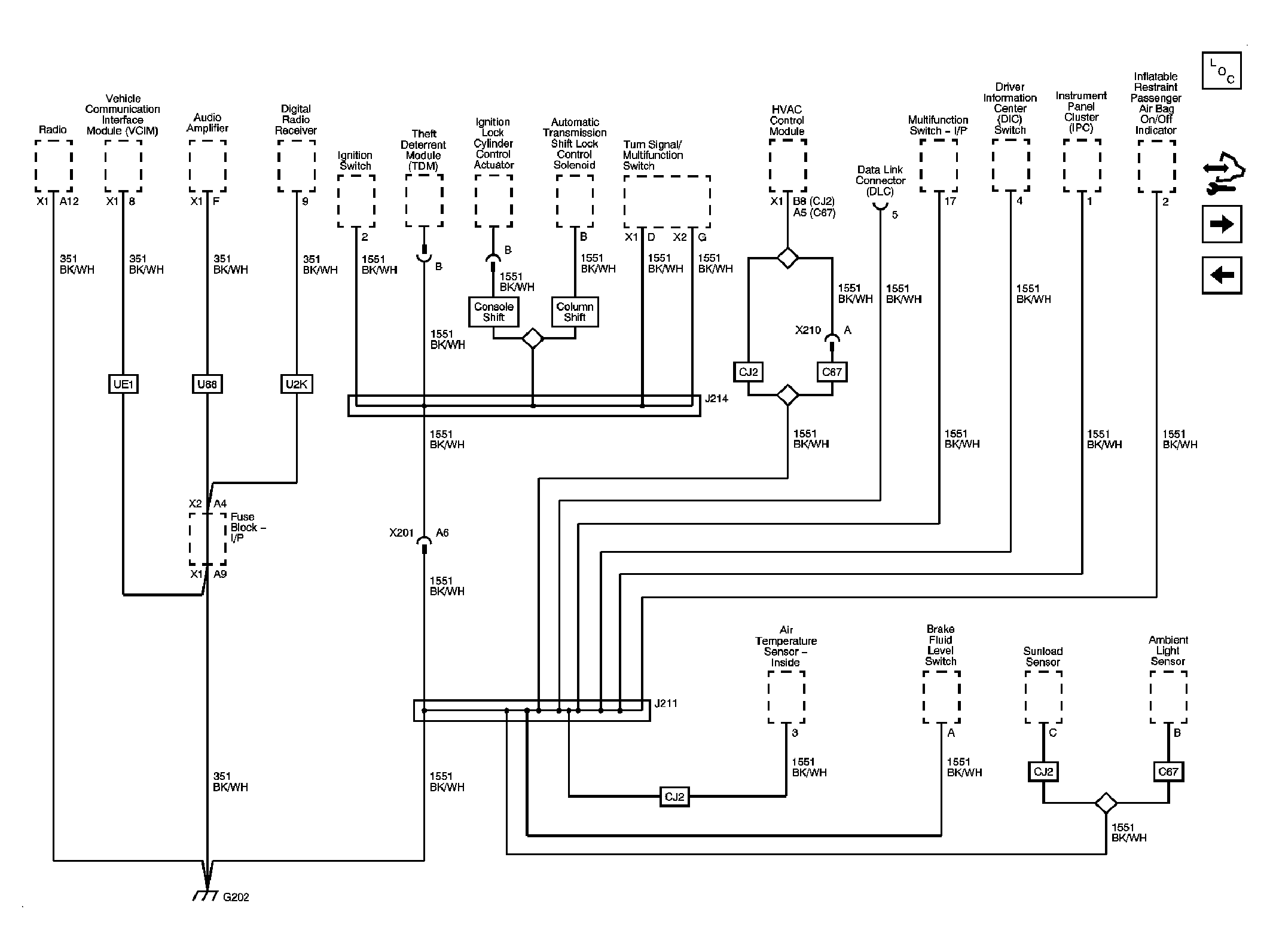

Fig 9: G202

Courtesy of GENERAL MOTORS CORP.

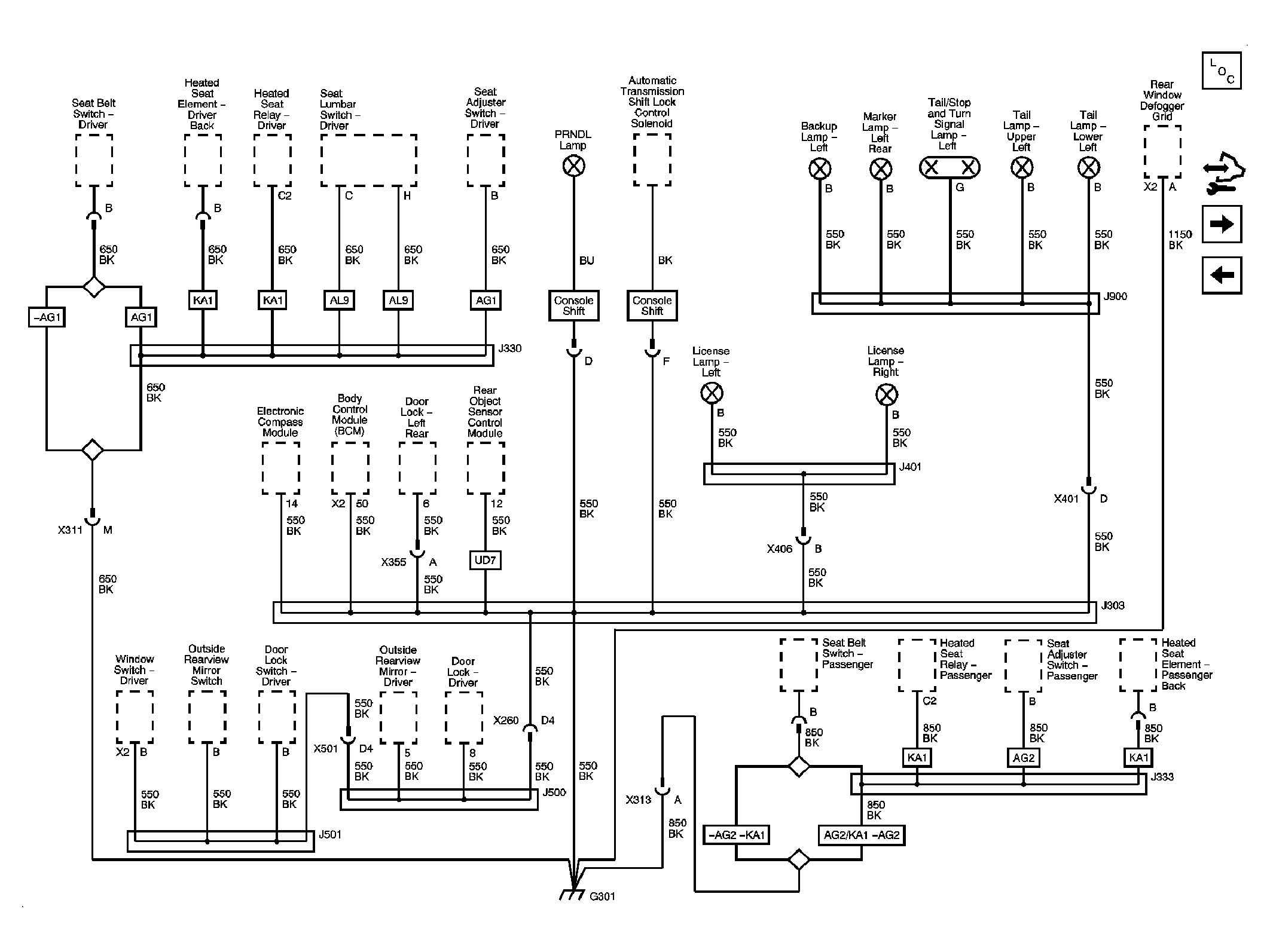

Fig 10: G301

Courtesy of GENERAL MOTORS CORP.

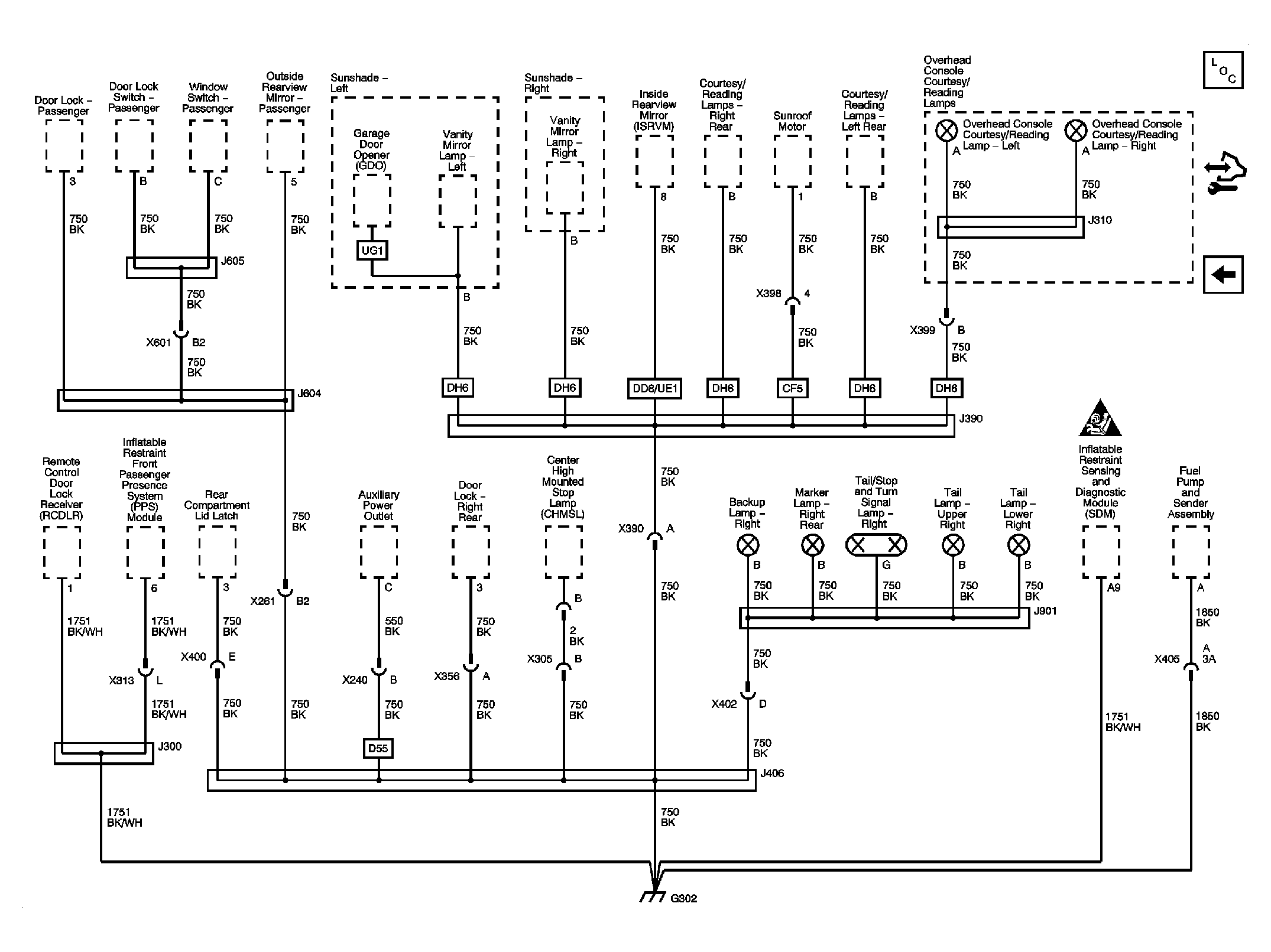

Fig 11: G302

Courtesy of GENERAL MOTORS CORP.
