Instrument Cluster Schematics

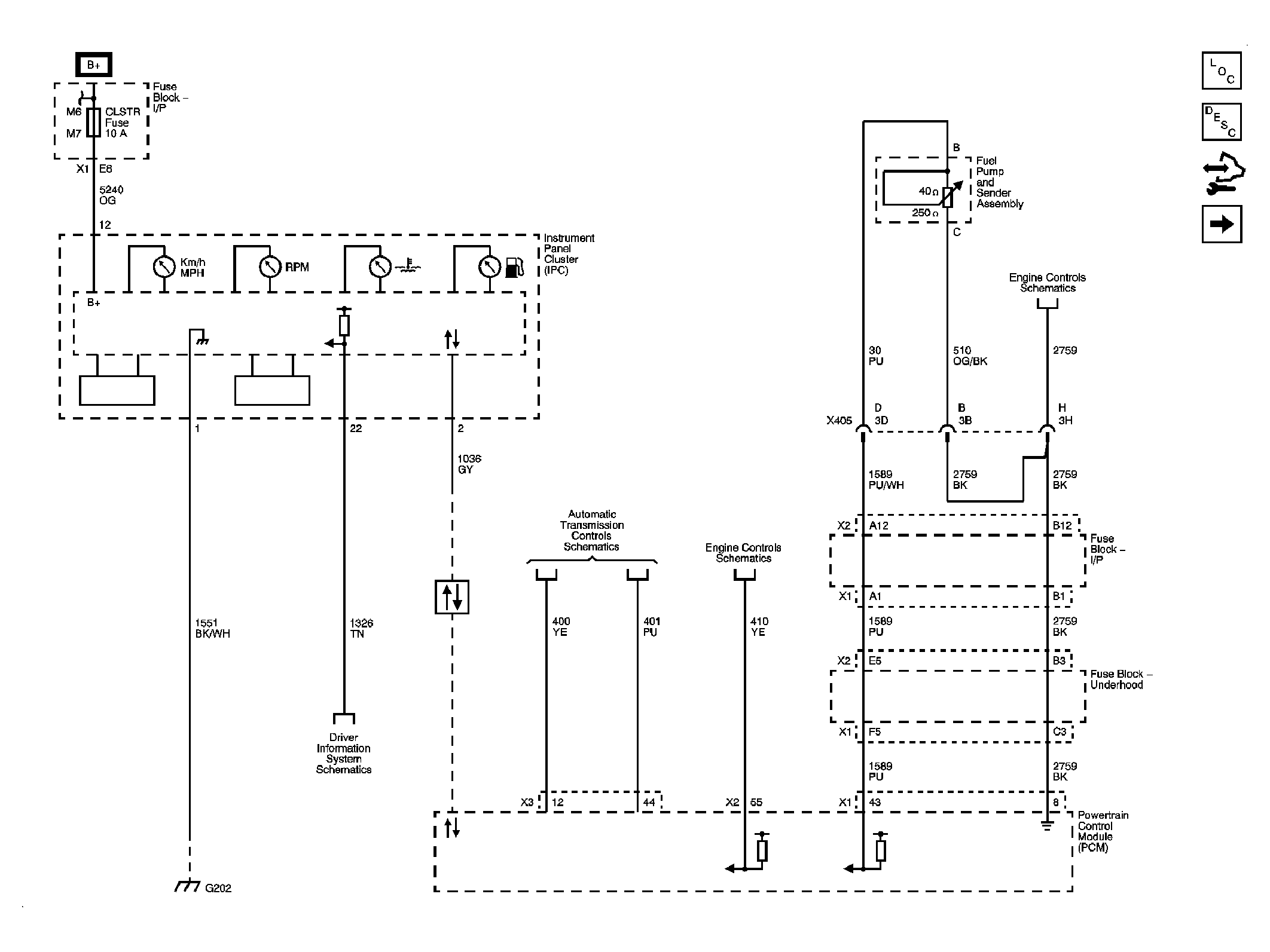

Fig 1: Power, Ground, Serial Data, and Gages (L26)

Courtesy of GENERAL MOTORS CORP.

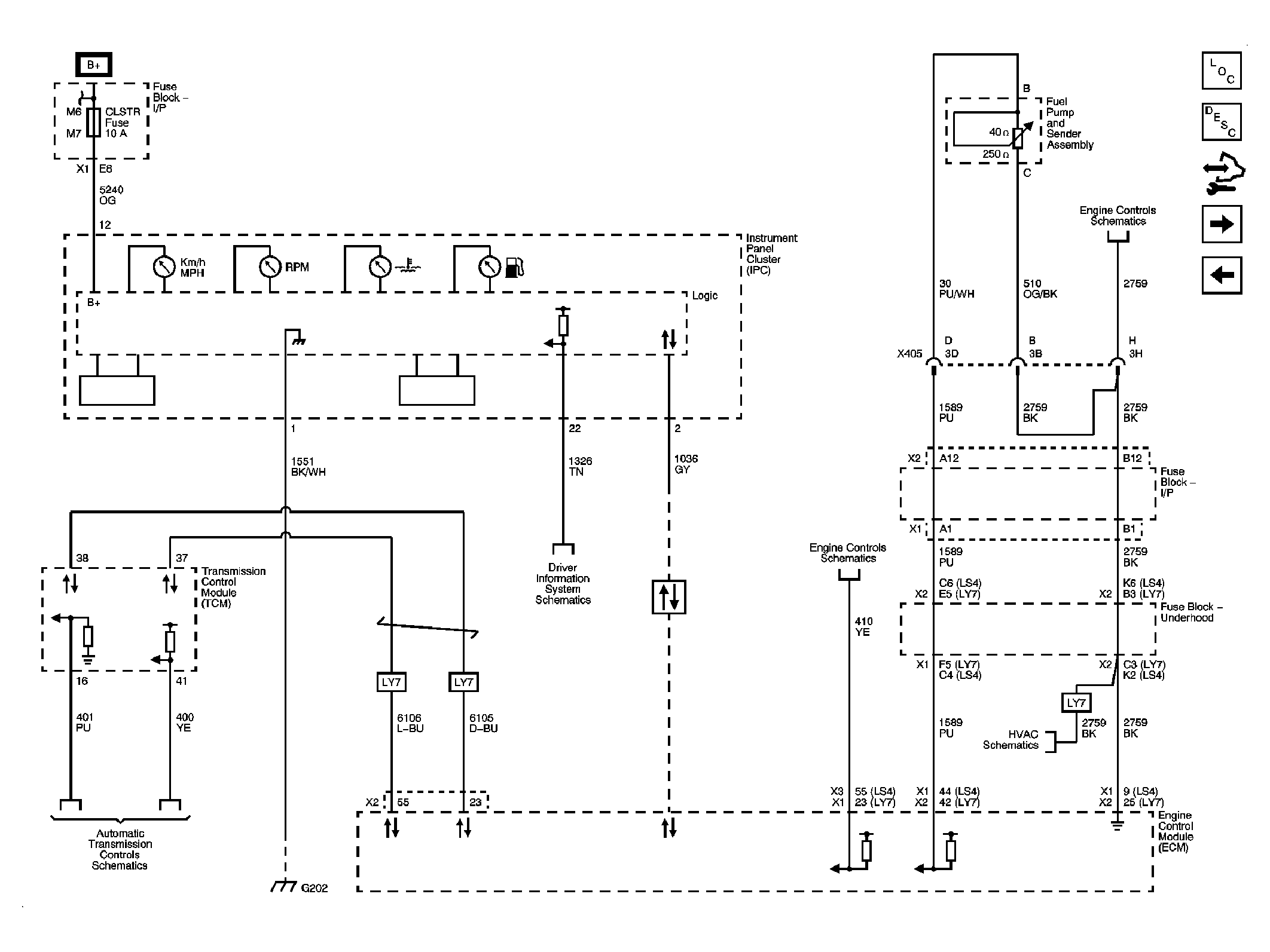

Fig 2: Power, Ground, Serial Data, and Gages (LY7)

Courtesy of GENERAL MOTORS CORP.

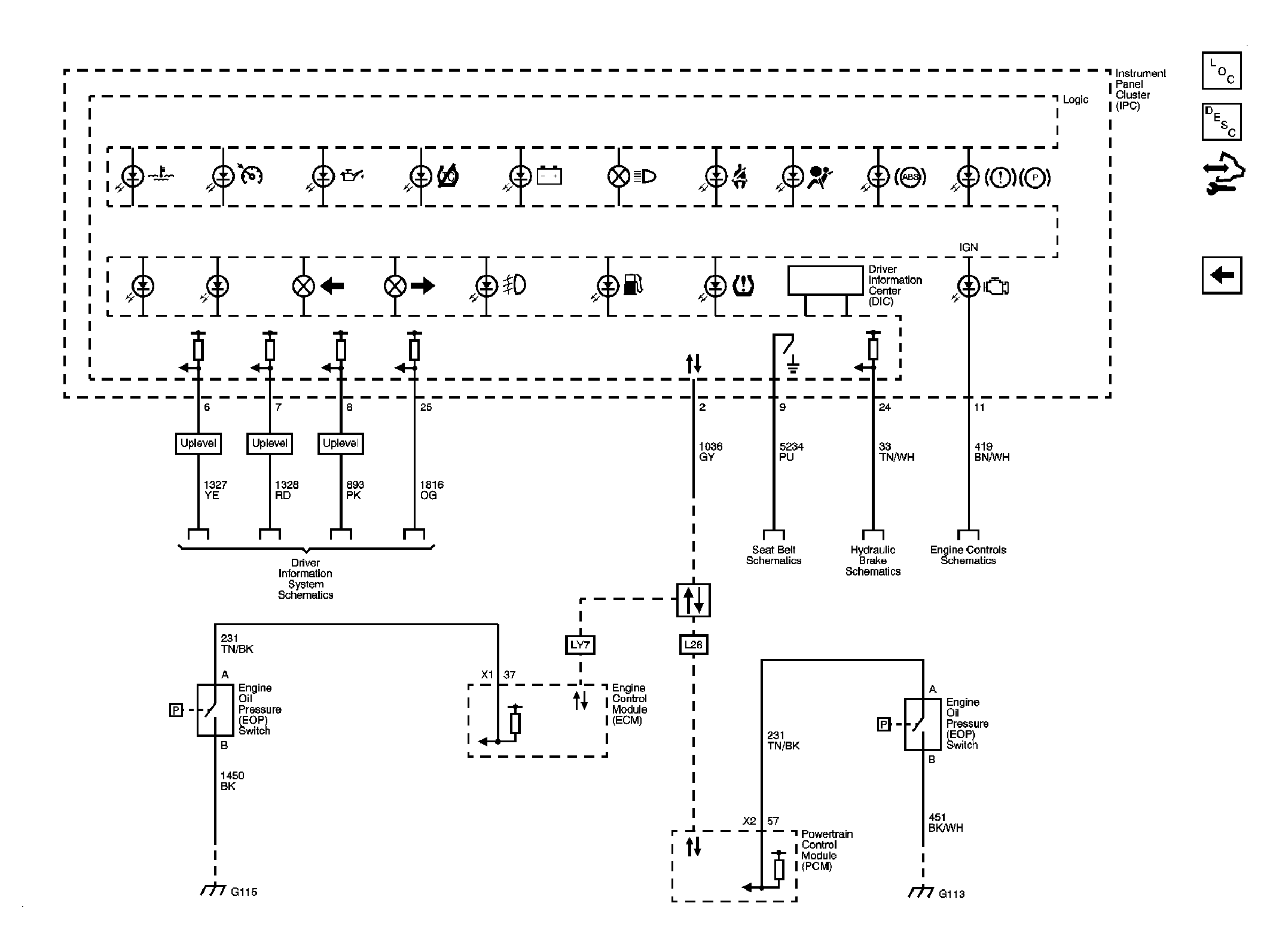

Fig 3: Indicators (U2E)

Courtesy of GENERAL MOTORS CORP.

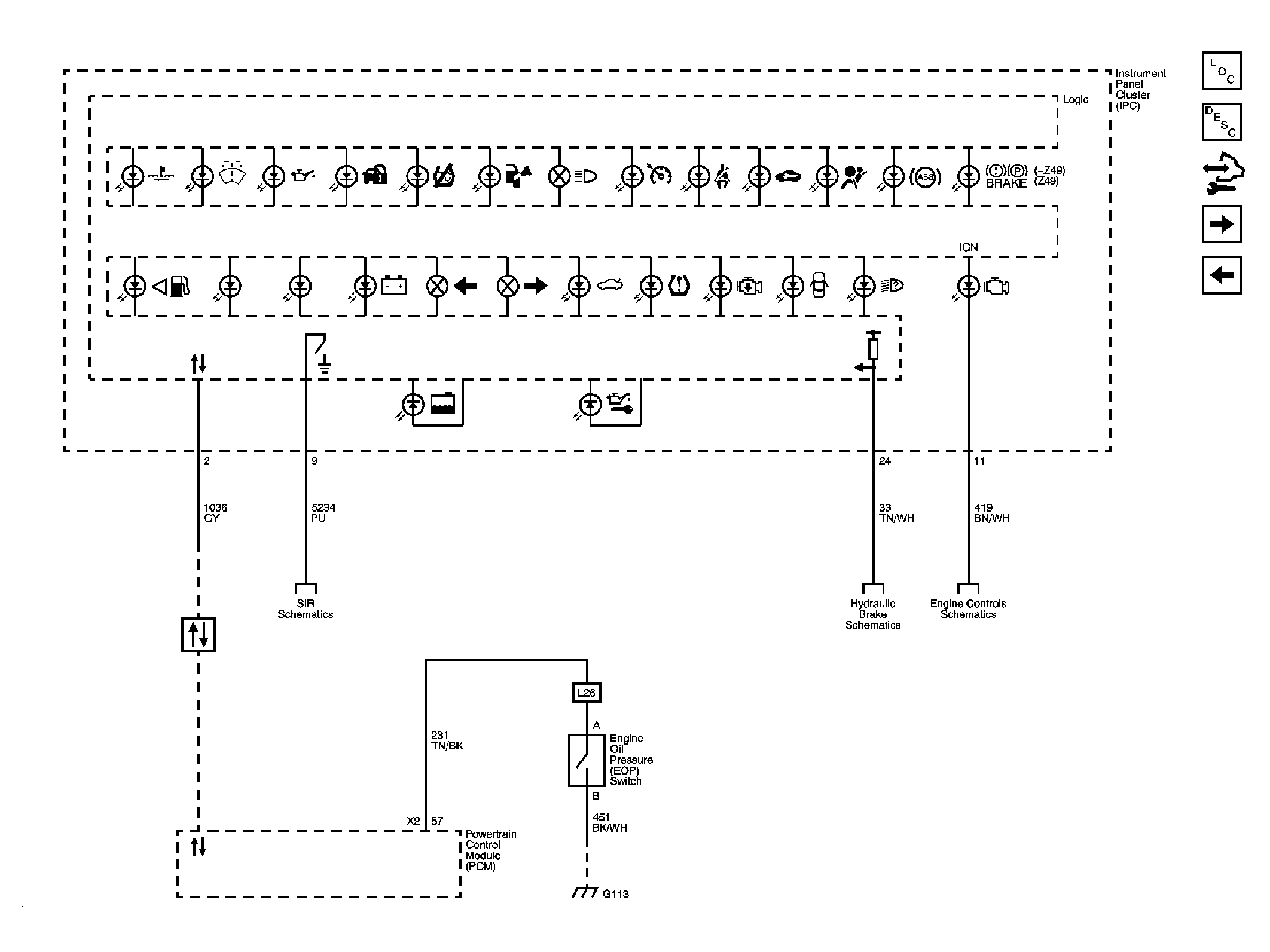

Fig 4: Indicators (UH8)

Courtesy of GENERAL MOTORS CORP.

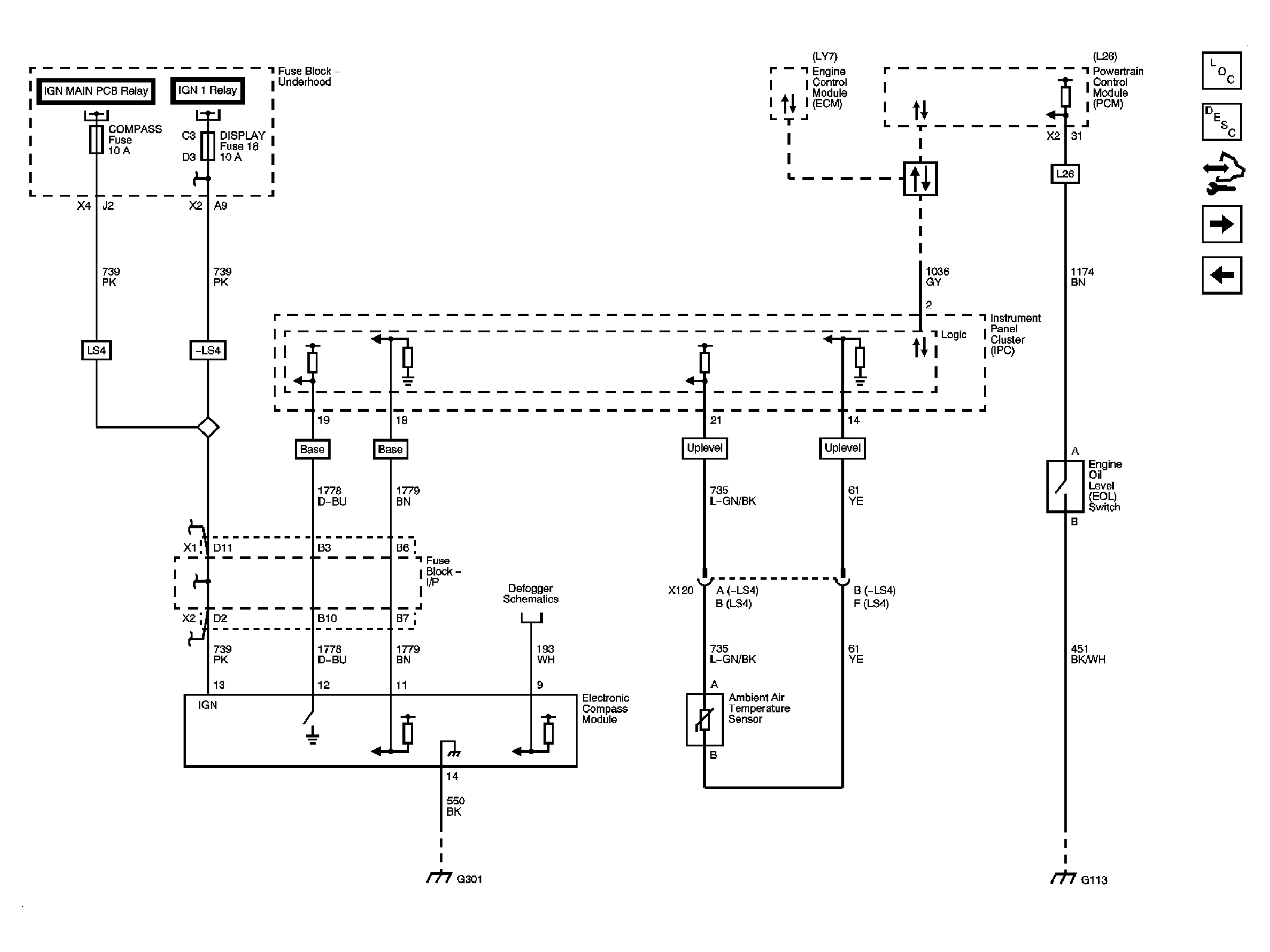

Fig 5: Ambient Air Temperature Sensor, Electronic Compass Module, and Oil Level Switch

Courtesy of GENERAL MOTORS CORP.
