Audible Warnings Schematics

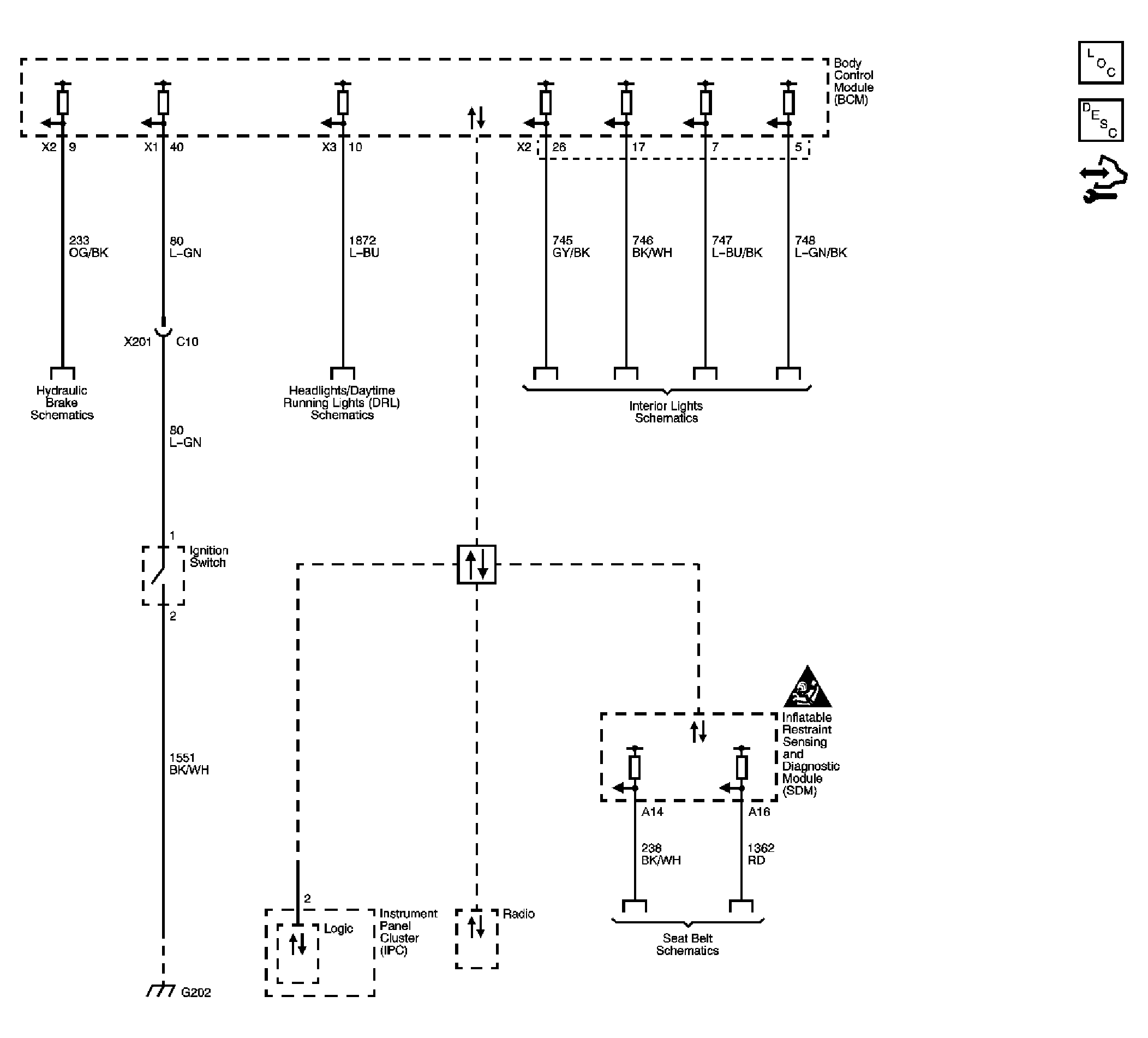

Fig 1: Audible Warnings Schematic

GM2081338

Courtesy of GENERAL MOTORS CORP.
