Instrument Panel Lower Trim Plate Replacement

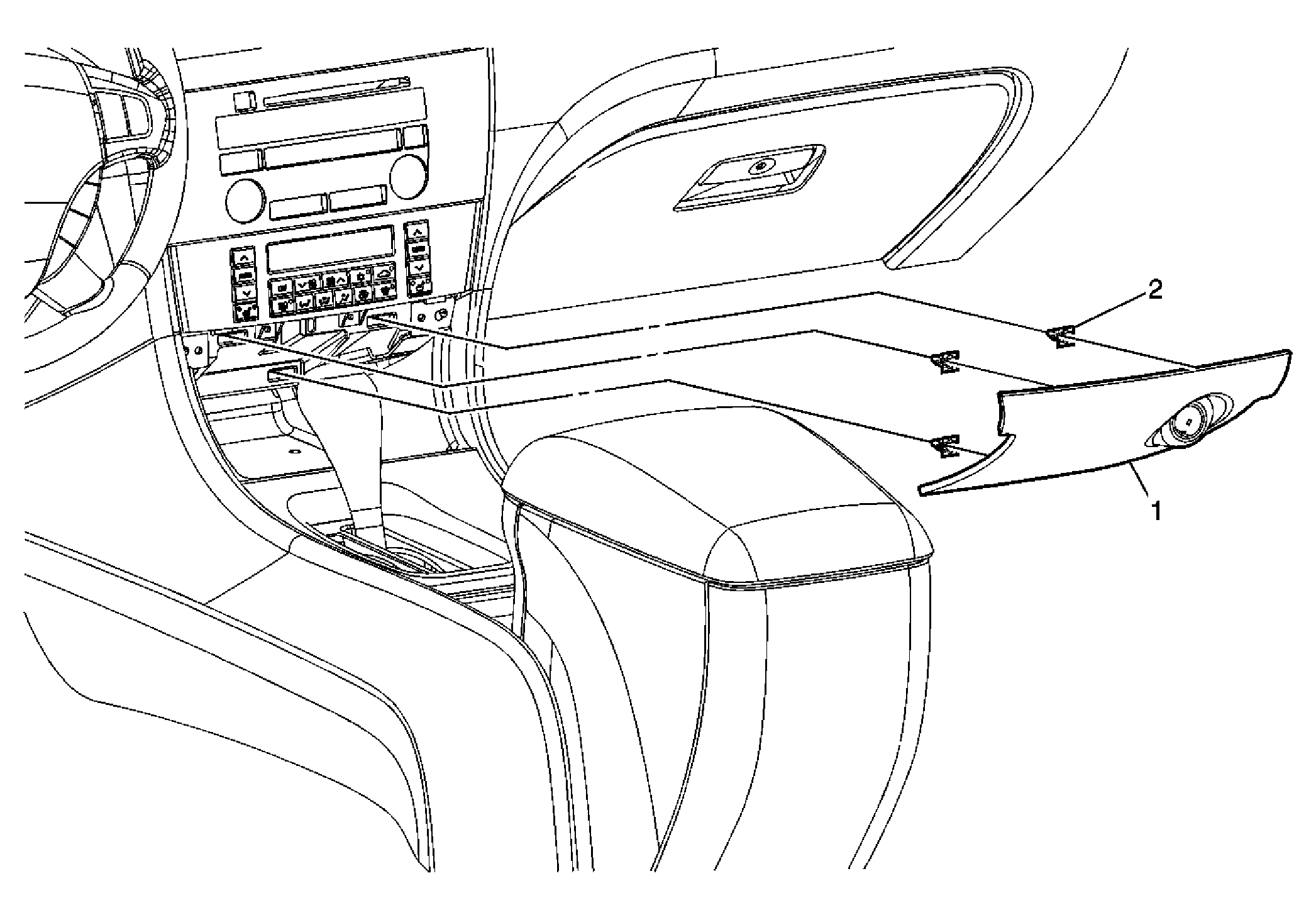

Fig 1: Identifying Instrument Panel (I/P) Lower Trim Plate (w/Floor Console)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Instrument Panel Lower Trim Plate Assembly Tip:  Pull away from dash enough to disconnect the electrical connector then remove from vehicle.
2	Instrument Panel Lower Trim Panel Retaining Clips (Qty: 3)
