Home >> Buick >> 2008 >> Lucerne V8-4.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Turn Signal Switch >> Diagrams

Turn Signal Switch: Diagrams



Component Connector End Views

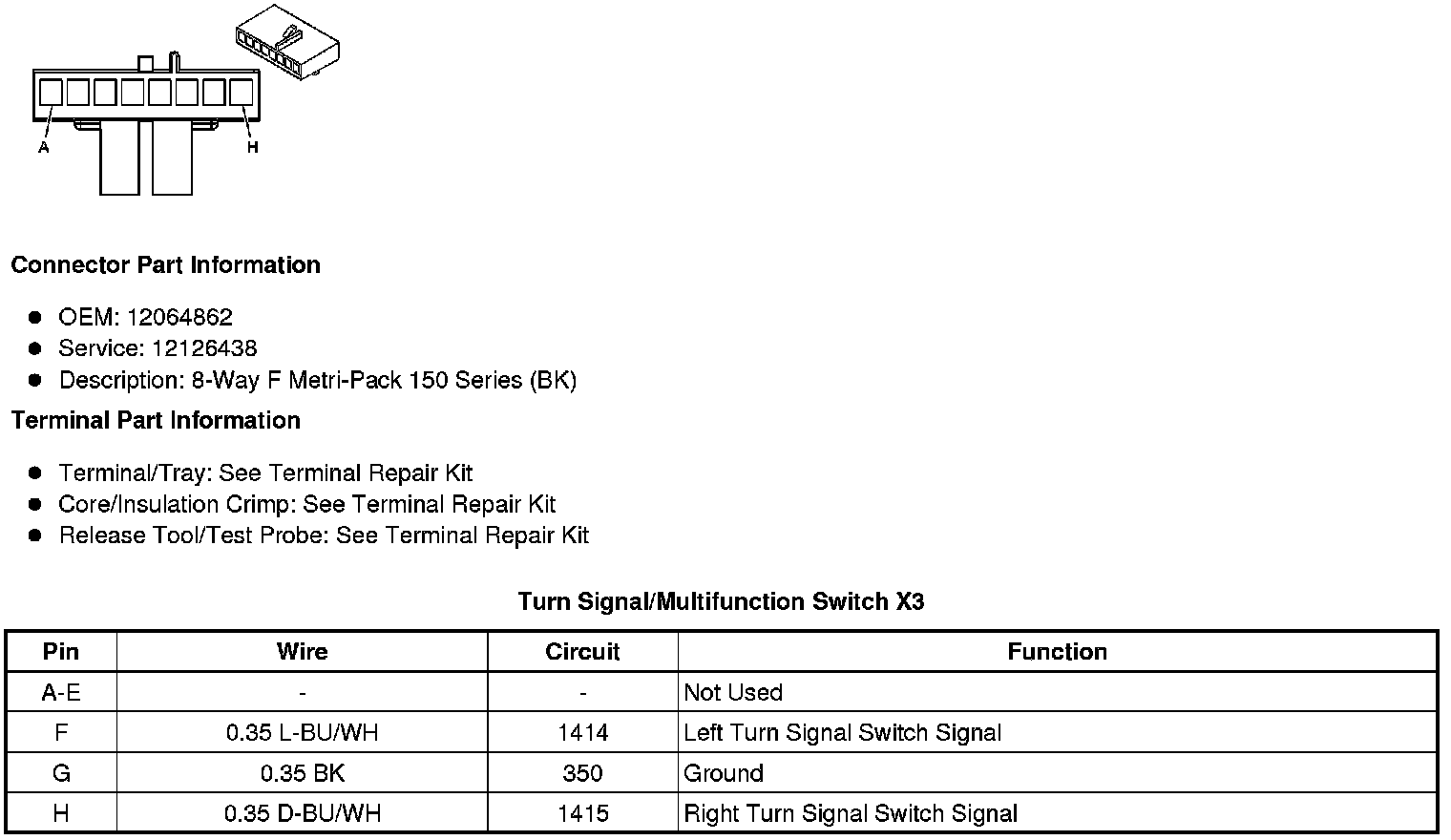

Turn Signal/Multifunction Switch X3

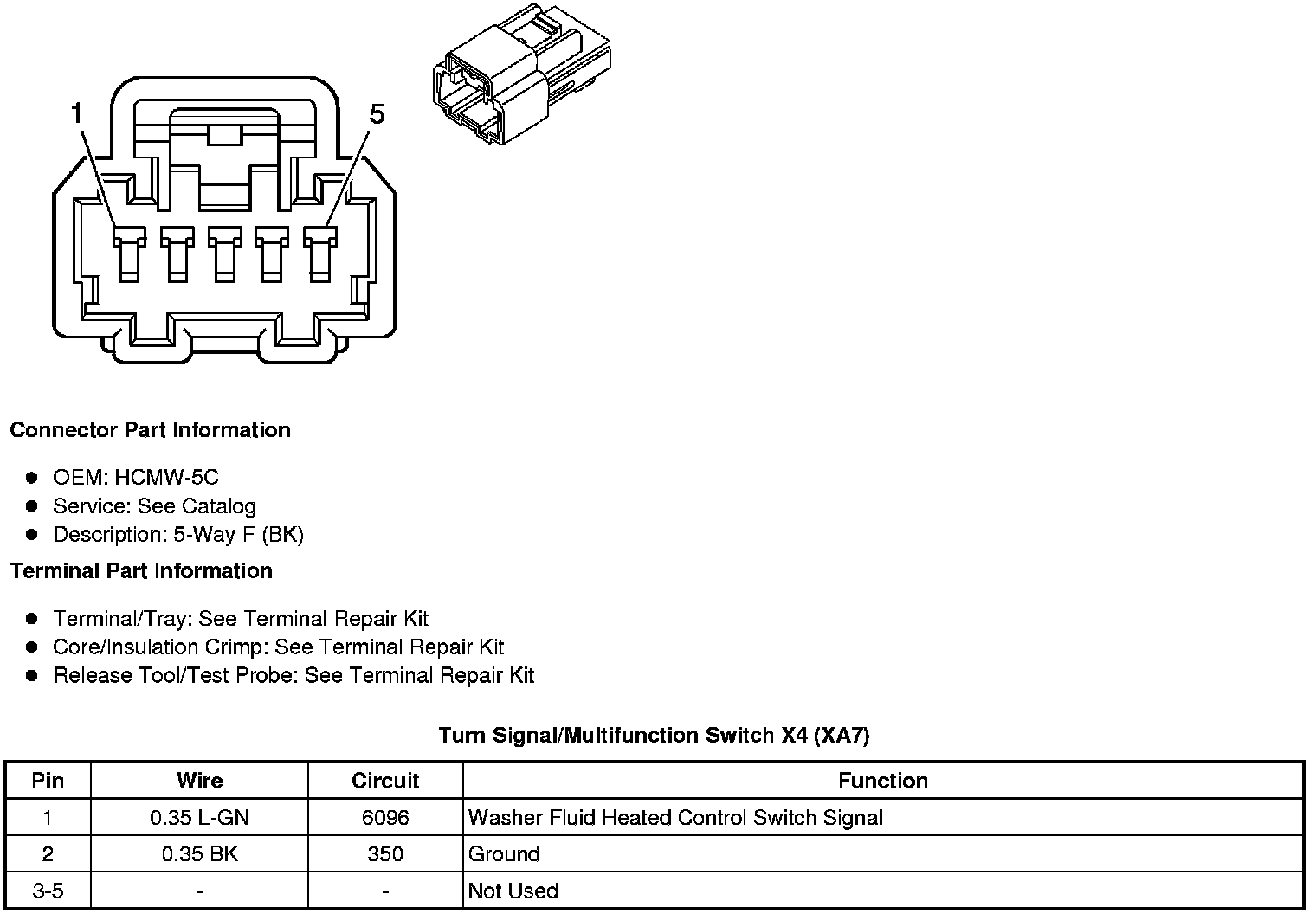

Turn Signal/Multifunction Switch X4 (XA7)
