Assembly Procedure

    Fig 1: View Of Second Clutch Housing Thrust Washer
    GM10685Courtesy of GENERAL MOTORS CORP.
  1. Use J 36850  or equivalent in order to secure the second clutch housing thrust washer (611) to the driven sprocket support assembly (609).

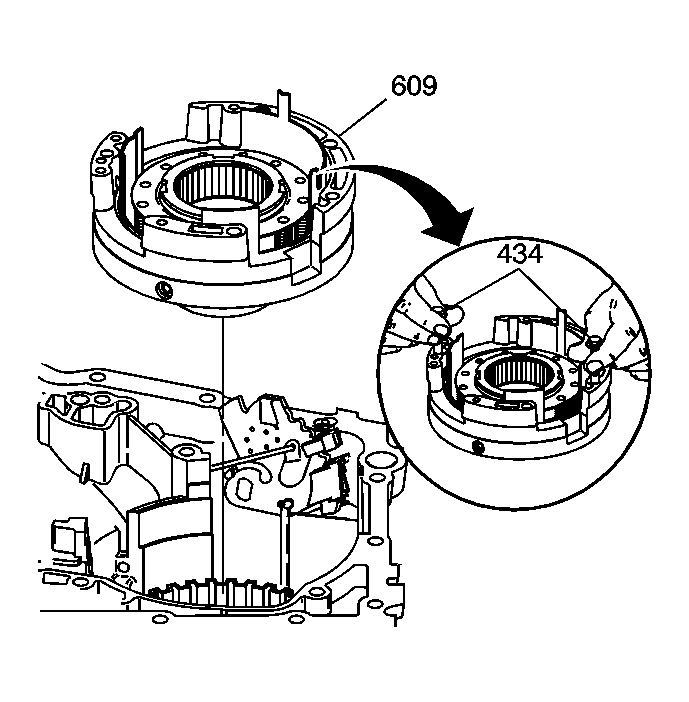

    2. Fig 2: View Of Case Cover Bolts & Driven Sprocket Support Assembly
    GM893332Courtesy of GENERAL MOTORS CORP.
  2. Finger start two 13 mm case cover bolts (434) into the driven sprocket support assembly (609).
    3. IMPORTANT: If the driven sprocket support assembly (609) is not flush with or slightly below the case, then one of the clutches is not fully seated.
  3. Using the bolts (434), lift the driven sprocket support assembly (609) into the case and align as shown. The top of the driven sprocket support assembly (609) should be flush with the case.
