Automatic Transmission Controls Schematics

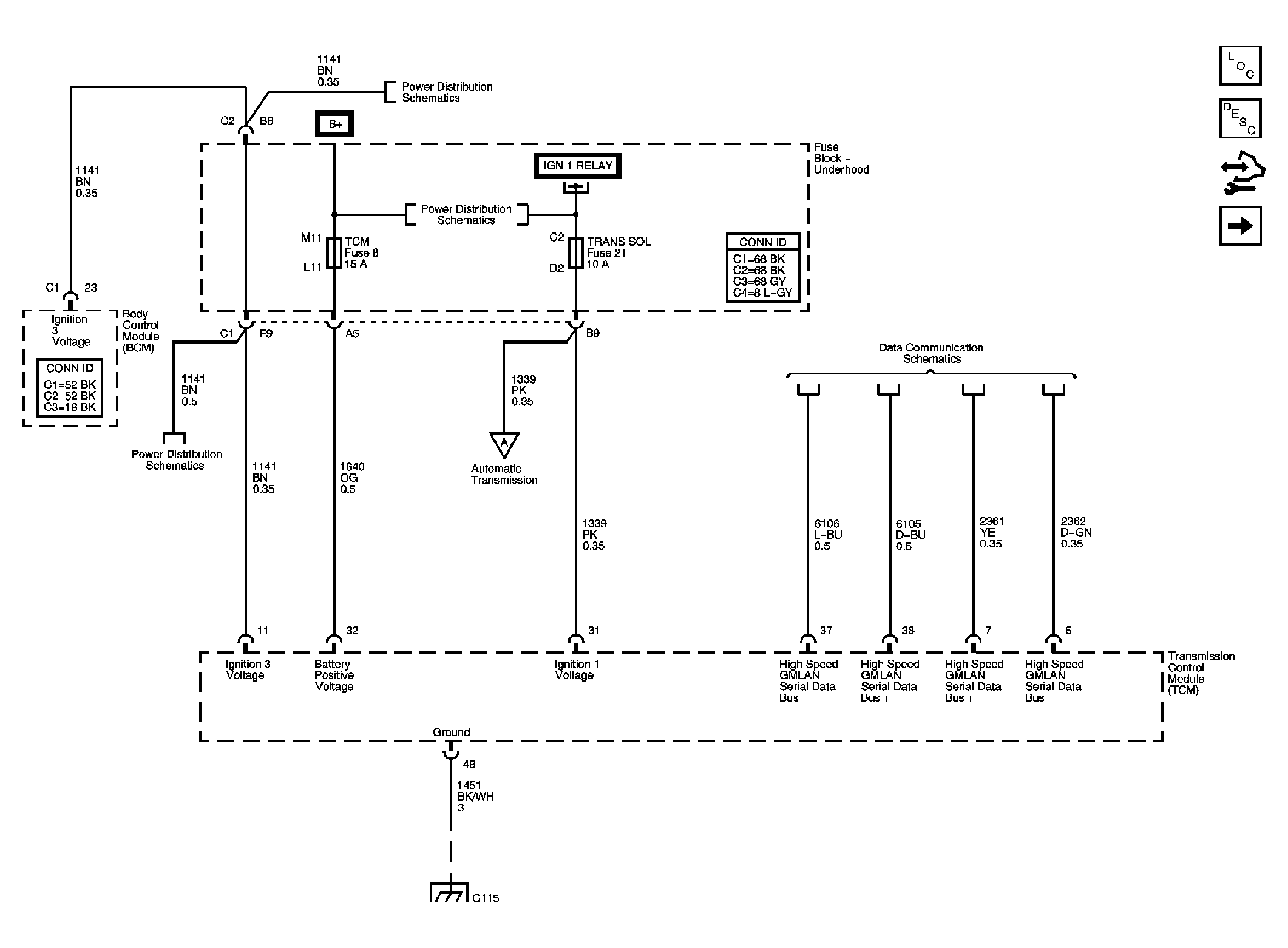

Fig 1: TCM Power, Ground, and Serial Data Schematic - LY7

Courtesy of GENERAL MOTORS CORP.

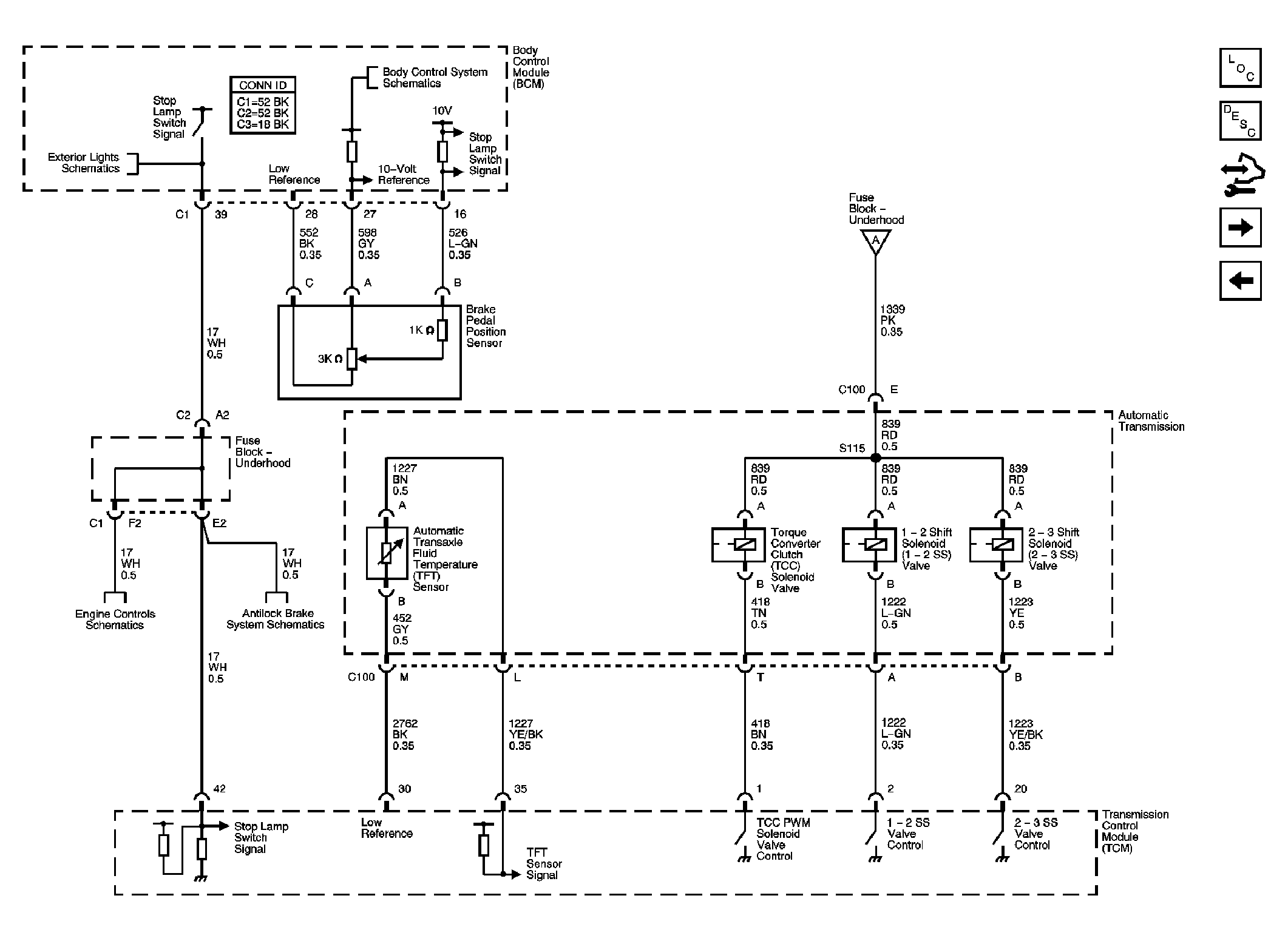

Fig 2: Shift and TCC Solenoid Valves, TFT Sensor, and Stop Lamp Switch Schematic - LY7

Courtesy of GENERAL MOTORS CORP.

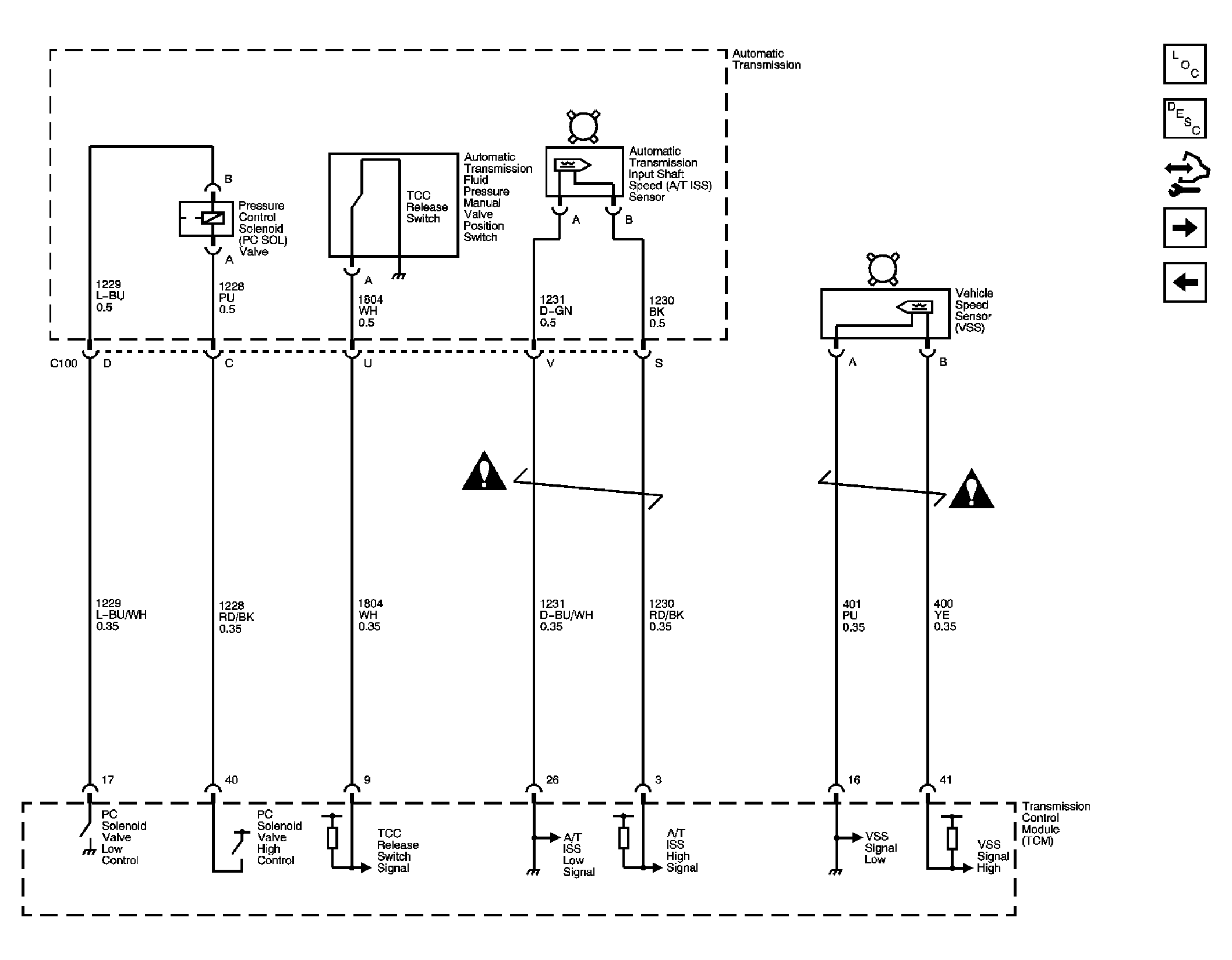

Fig 3: PC Solenoid Valve, Fluid Pressure Manual Valve Position Switch, ISS and VSS Sensors Schematic - LY7

Courtesy of GENERAL MOTORS CORP.

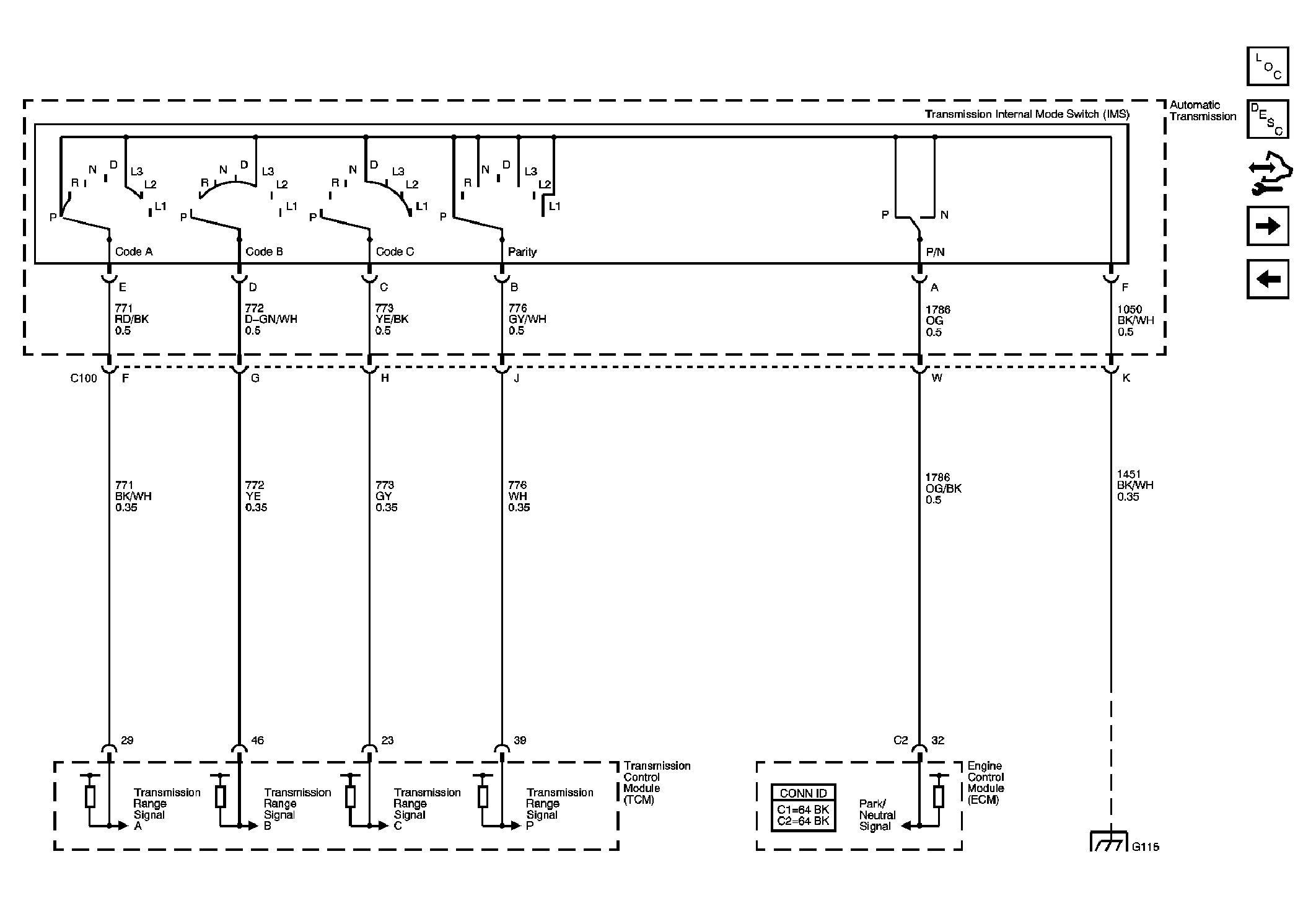

Fig 4: Internal Mode Switch Schematic - LY7

Courtesy of GENERAL MOTORS CORP.

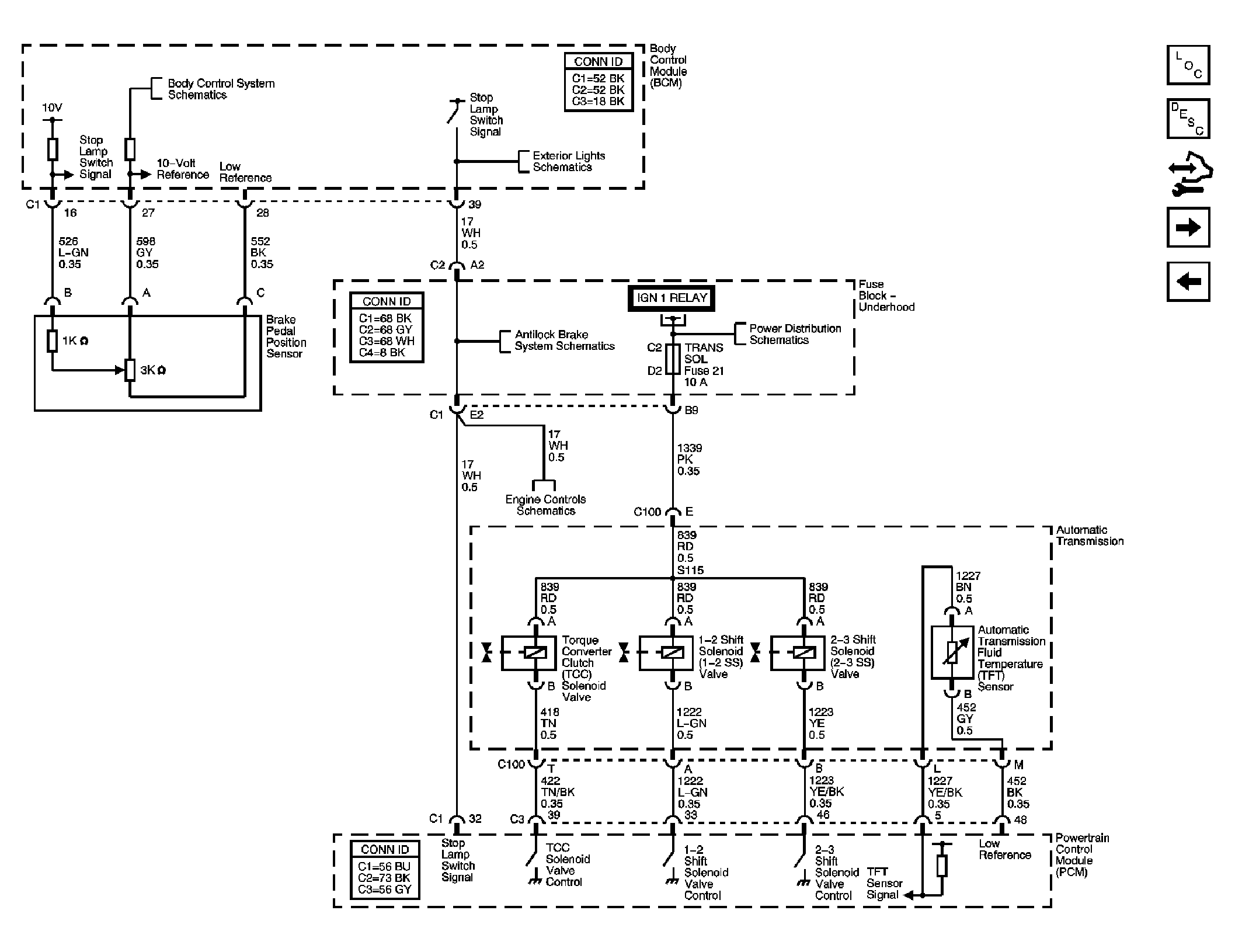

Fig 5: Shift and TCC Solenoid Valves, TFT Sensor, and Stop Lamp Switch Schematic - L26

Courtesy of GENERAL MOTORS CORP.

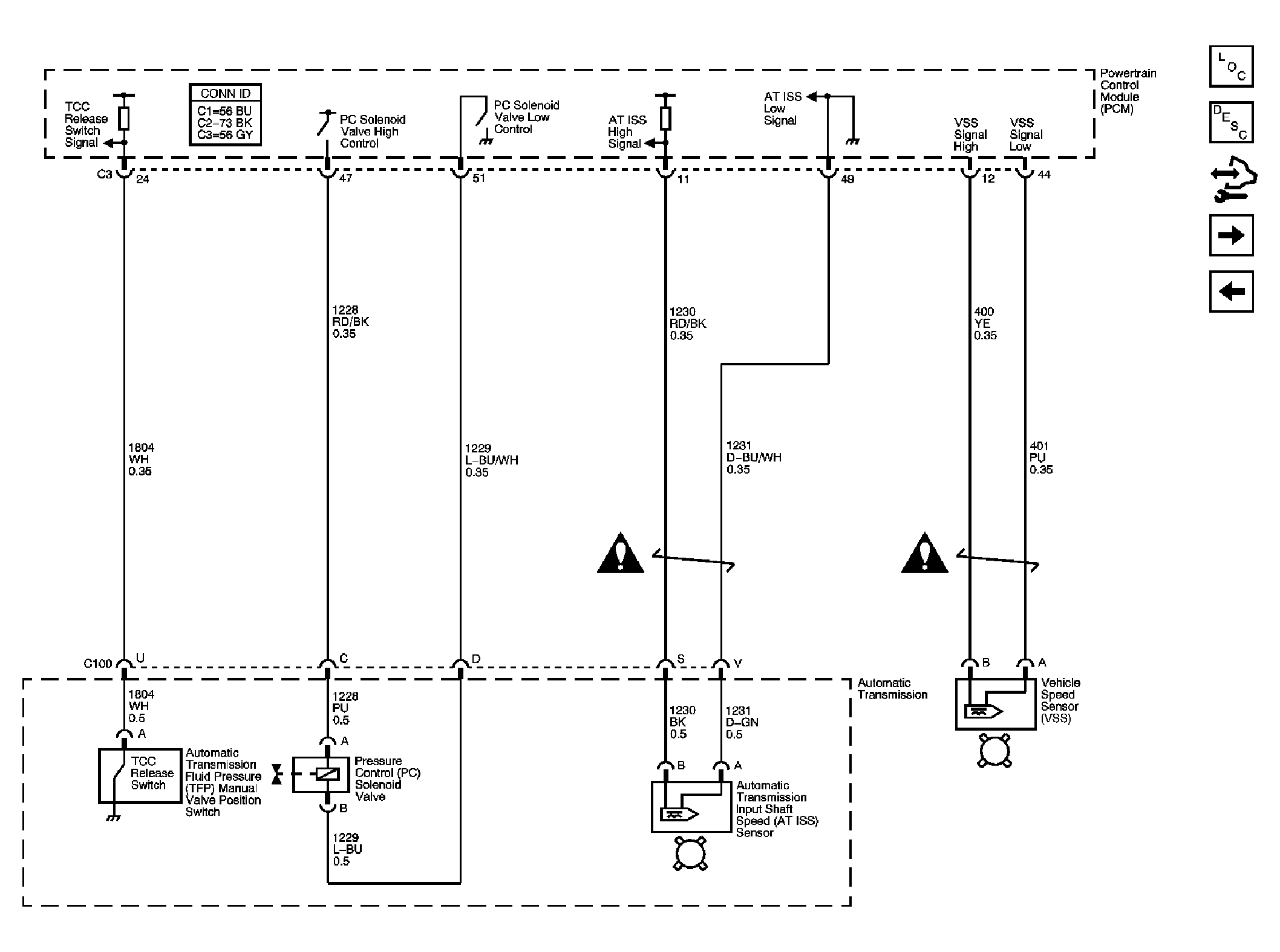

Fig 6: PC Solenoid Valve, Fluid Pressure Manual Valve Position Switch, ISS and VSS Sensors Schematic - L26

Courtesy of GENERAL MOTORS CORP.

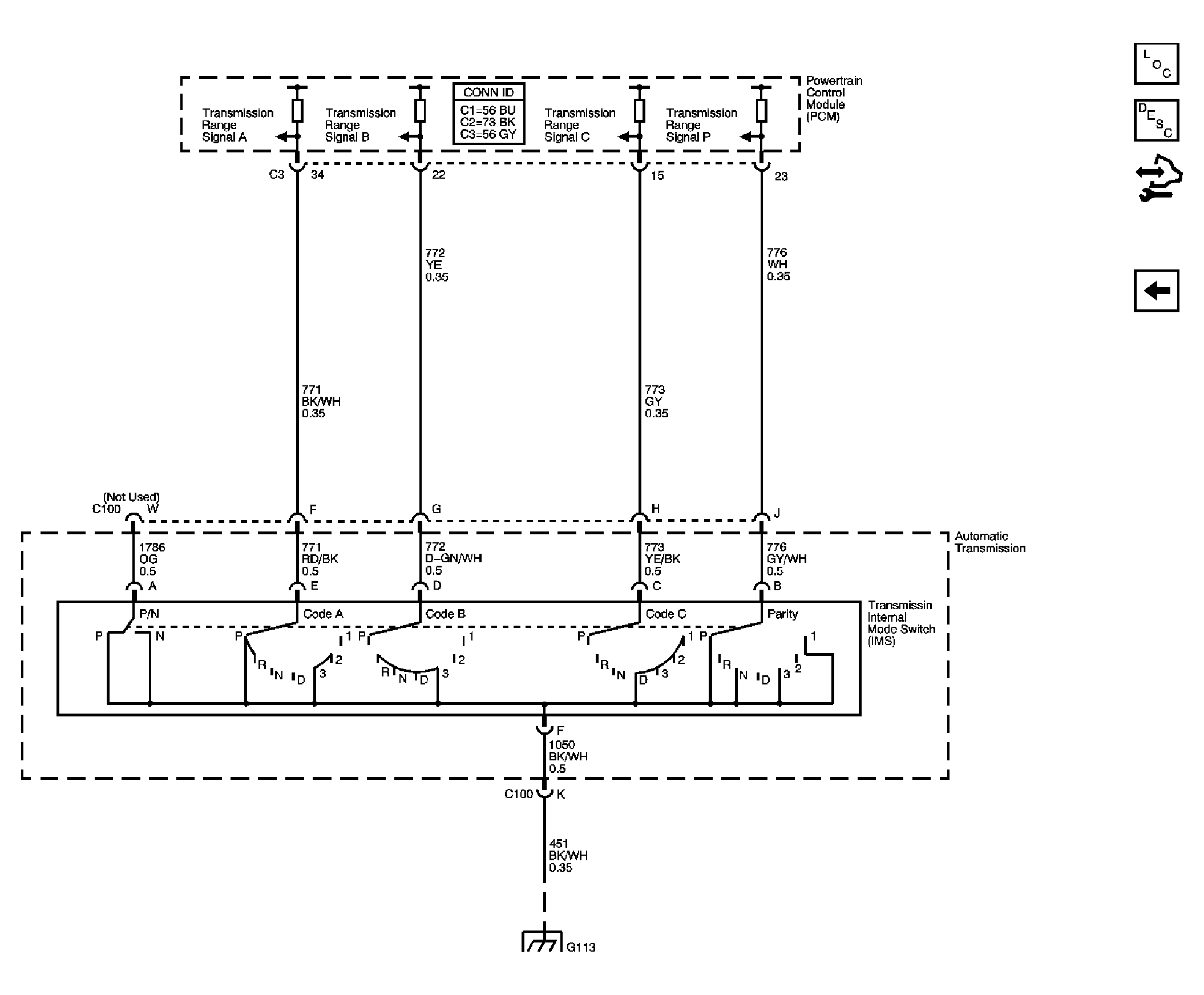

Fig 7: Internal Mode Switch Schematic - L26

Courtesy of GENERAL MOTORS CORP.
